Image Processing Module A (IPMA): Removal

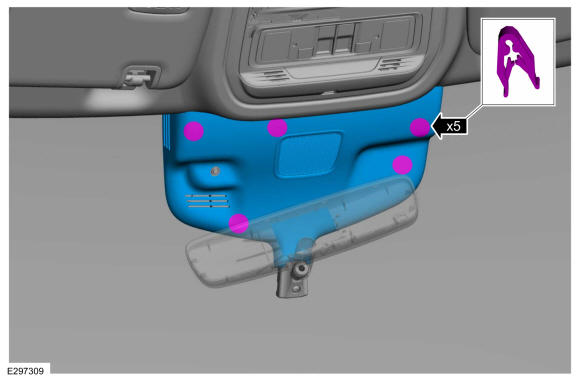

  1. Release the clips and remove the IPMA cover.
    GFD799544Courtesy of FORD MOTOR COMPANY

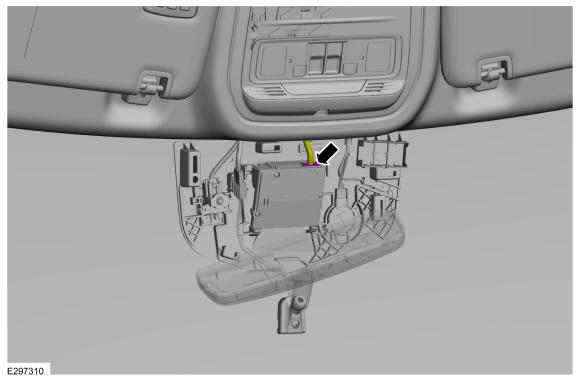

  2. Disconnect the electrical connector.
    GFD799545Courtesy of FORD MOTOR COMPANY

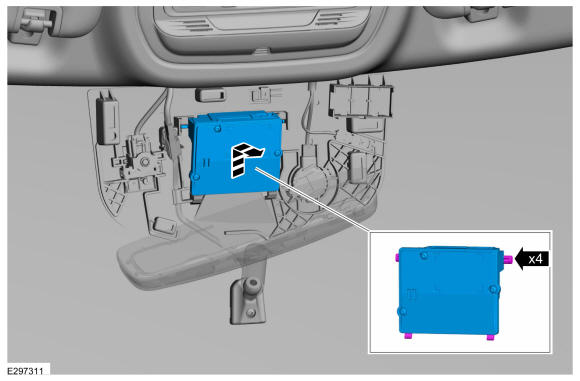

  3. Release the tabs and remove the IPMA.
GFD799546Courtesy of FORD MOTOR COMPANY
