Pedestrian Alert Control Module (PACM): Removal

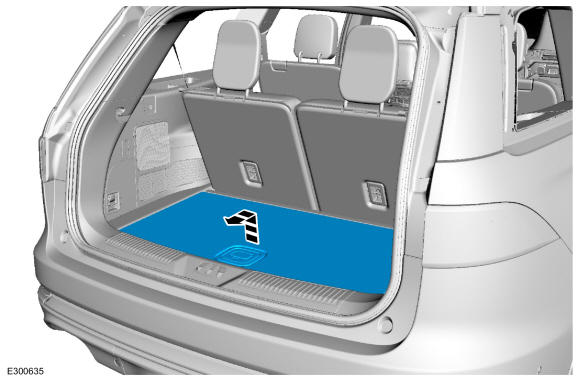

1. Remove the luggage compartment floor cover.

   Courtesy of FORD MOTOR COMPANY

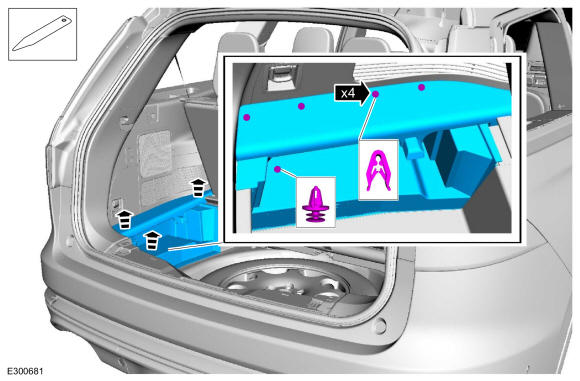

2. Release the clips and the luggage compartment side trim panel.Use the General Equipment: Interior Trim Remover

   Courtesy of FORD MOTOR COMPANY

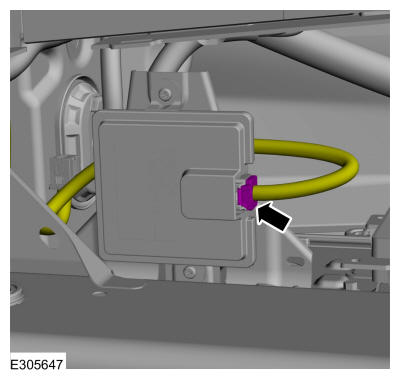

3. Disconnect the electrical connectors and position the wiring harness aside.

   Courtesy of FORD MOTOR COMPANY

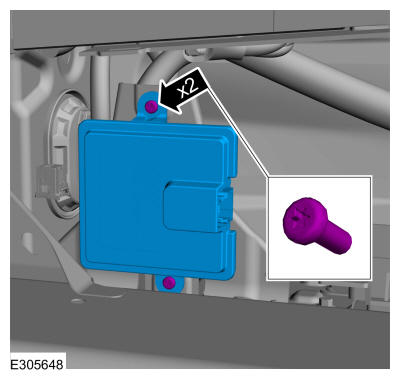

4. Remove the screws and the PACM.

Courtesy of FORD MOTOR COMPANY
