Engine - 3.0L ECOBOOST: Disassembly: Engine

For information on Ford Color Coded Illustrations refer to OEM COLOR CODING

Special Tool(s) / General Equipment

Courtesy of FORD MOTOR COMPANY	205-153 (T80T-4000-W)Handle
Courtesy of FORD MOTOR COMPANY	303-1246Engine Spreader BarTKIT-2006UF-FLMTKIT-2006UF-ROW
Courtesy of FORD MOTOR COMPANY	303-1247VCT Spark Plug Tube Seal Remover and InstallerTKIT-2006UF-FLMTKIT-2006UF-ROW

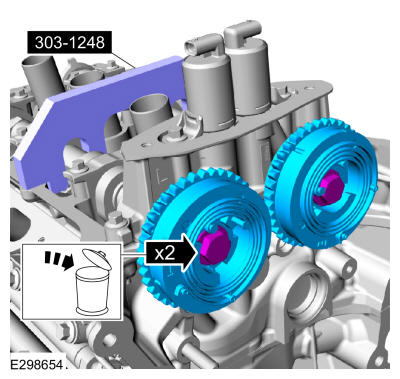

Courtesy of FORD MOTOR COMPANY	303-1248Camshaft holding toolsTKIT-2006UF-FLMTKIT-2006UF-ROW
Courtesy of FORD MOTOR COMPANY	303-1634Lift Eyes (2)TKIT-2014D-ROW3TKIT-2014D-FL_ROW
Courtesy of FORD MOTOR COMPANY	303-1696Camshaft holding fixture

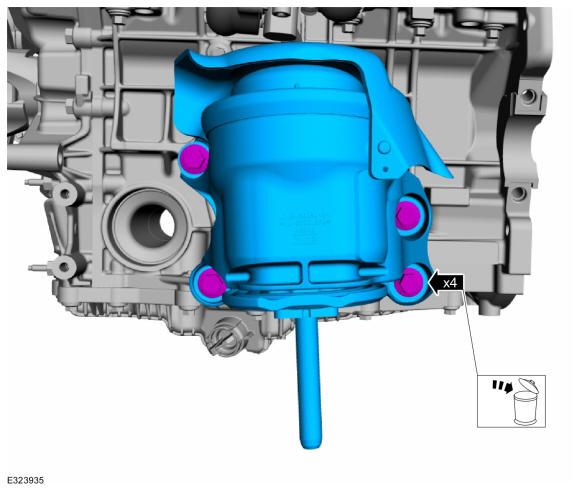

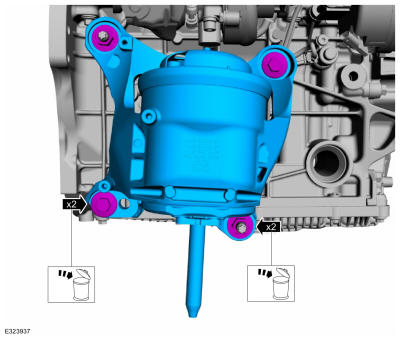

Courtesy of FORD MOTOR COMPANY	303-409 (T92C-6700-CH)Remover, Crankshaft SealTKIT-1992-FH/FMH/FLMHTKIT-1993-LMH/MH
Floor Crane
Mounting Stand
Plastic Scraper
Flat-Bladed Screwdriver

Materials

Name	Specification
Motorcraft® Silicone Gasket RemoverZC-30-A	-
Motorcraft® Metal Surface Prep WipesZC-31-B	-
Motorcraft® Metal Brake Parts CleanerPM-4-A, PM-4-B	-

LHD AWD/LHD RWD

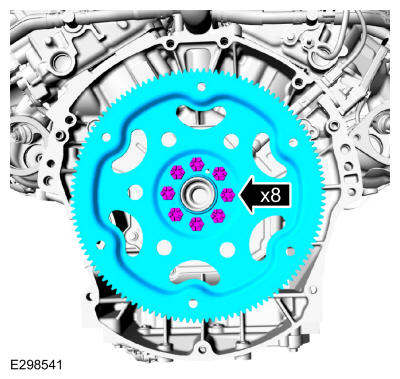

1. Remove the bolts and the flexplate.

   Courtesy of FORD MOTOR COMPANY

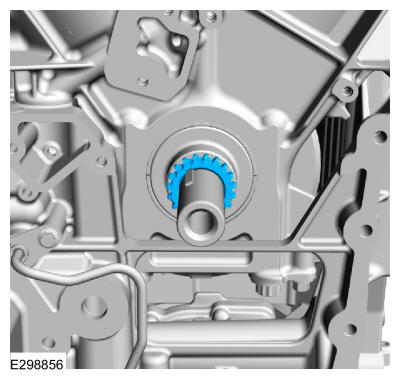

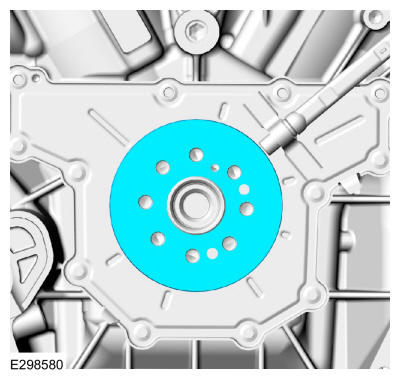

2. Remove the crankshaft sensor ring.

   Courtesy of FORD MOTOR COMPANY

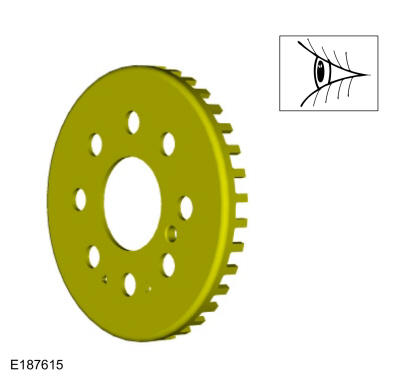

3. Inspect the crankshaft sensor ring for damage. If the crankshaft sensor ring has been dropped or has any visual damage, it must be discarded.

   Courtesy of FORD MOTOR COMPANY

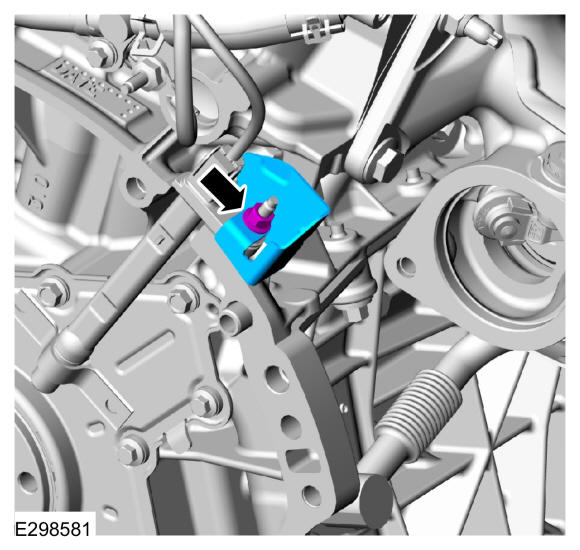

4. Remove the nut and the heat shield.

   Courtesy of FORD MOTOR COMPANY

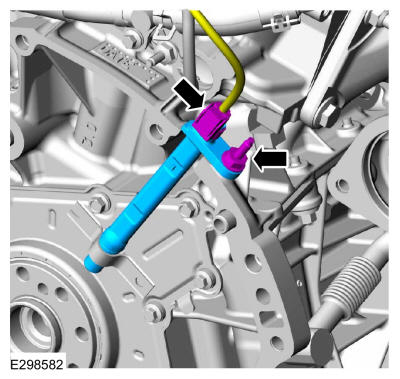

5. 1. Disconnect the CKP sensor electrical connector.
   2. Remove the stud bolt and the CKP sensor.

   Courtesy of FORD MOTOR COMPANY

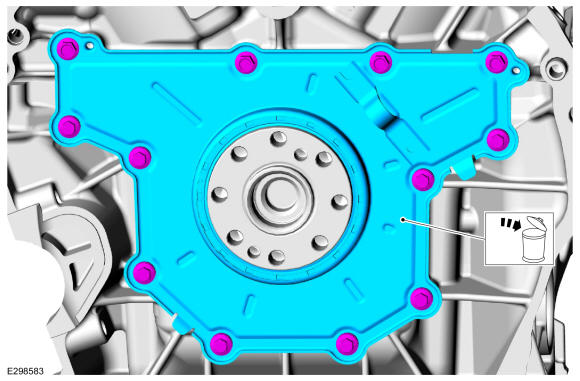

6. Remove the bolts and the crankshaft rear seal and retainer plate.
   • Discard the crankshaft rear seal and retainer plate.

   Courtesy of FORD MOTOR COMPANY

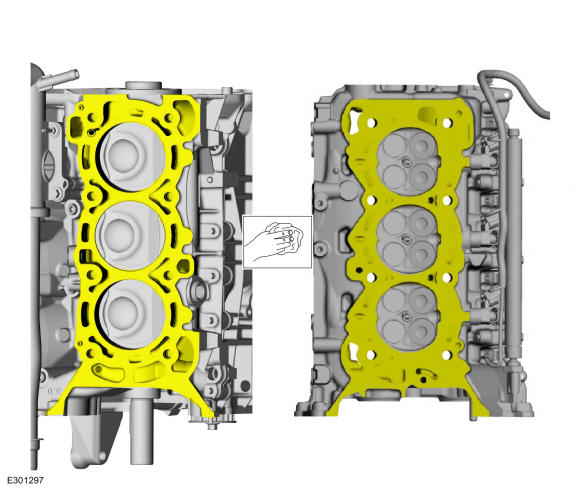

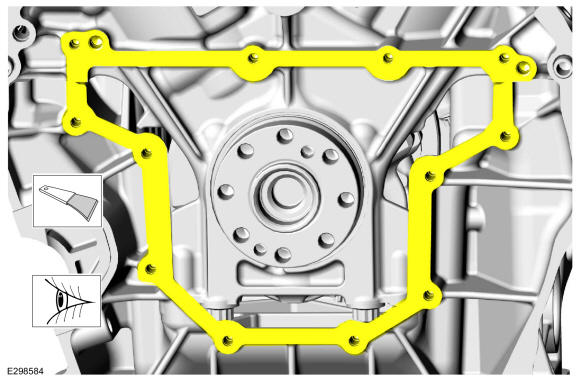

7. NOTE: Do not use metal scrapers, wire brushes, power abrasive discs or other abrasive means to clean the sealing surfaces. These tools cause scratches and gouges which make leak paths. Use a plastic scraping tool to remove all traces of old sealant.

   Clean and inspect the mating surface. Refer to: RTV Sealing Surface Cleaning and Preparation

   ENGINE SYSTEM - GENERAL INFORMATION . Use the General Equipment: Plastic Scraper

   Material

   : Motorcraft® Silicone Gasket Remover / ZC-30-A

   Material

   : Motorcraft® Metal Brake Parts Cleaner / PM-4-A, PM-4-B

   Material

   : Motorcraft® Metal Surface Prep Wipes / ZC-31-B

   Courtesy of FORD MOTOR COMPANY

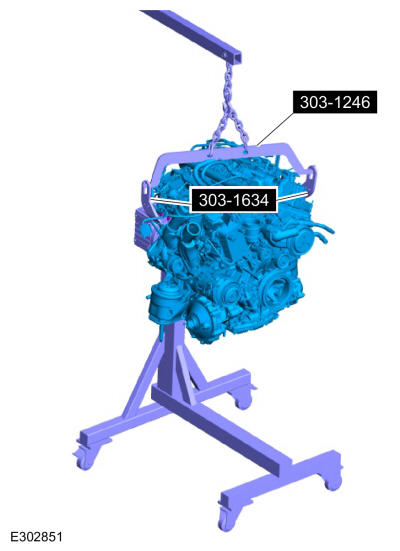

8. Using a floor crane, install the engine on a mounting stand.Remove Special Service Tool: 303-1246 Engine Spreader Bar., 303-1634 Lift Eyes (2). Use the General Equipment: Floor CraneUse the General Equipment: Mounting Stand

   Courtesy of FORD MOTOR COMPANY

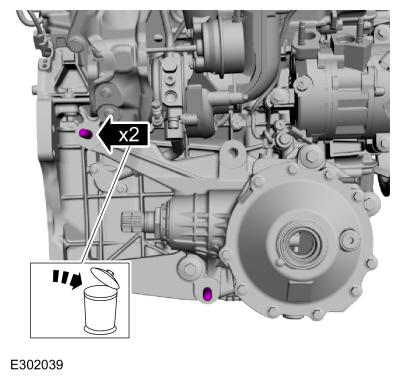

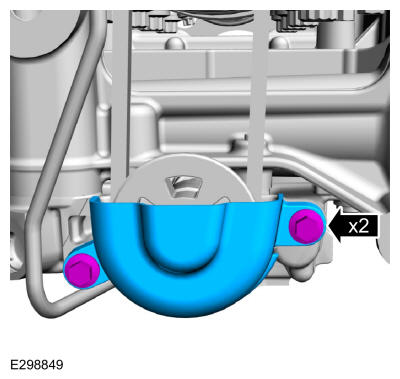

9. • Remove the bolts and the LH engine mount.
   • Discard the bolts.

   Courtesy of FORD MOTOR COMPANY

10. NOTE: AWD shown, RWD similar.
    • Remove and discard the nuts and bolts.
    • Remove the RH engine mount.

    Courtesy of FORD MOTOR COMPANY

11. NOTE: AWD shown, RWD similar.

    Remove and discard the studs.

    Courtesy of FORD MOTOR COMPANY

    LHD RWD

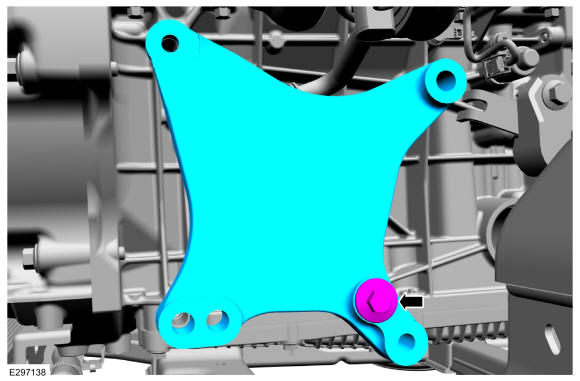

12. Remove the bolt and the engine mount spacer.

    Courtesy of FORD MOTOR COMPANY

    LHD AWD

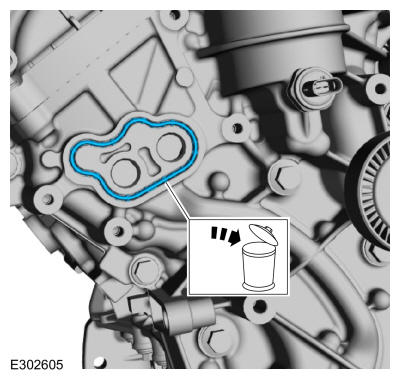

13. Remove the bolts and the front axle disconnect actuator.

    Courtesy of FORD MOTOR COMPANY

14. Remove and discard the seal.

    Courtesy of FORD MOTOR COMPANY

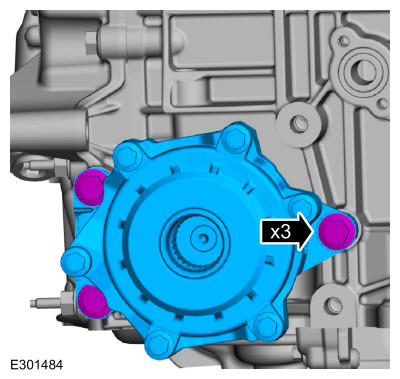

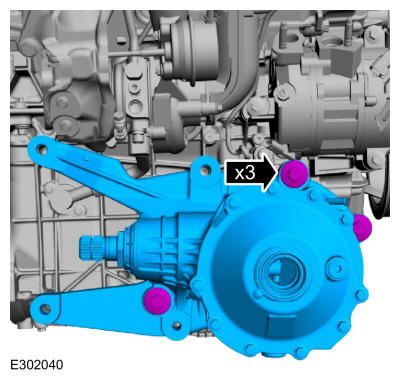

15. Remove the bolts and the front axle assembly.

    Courtesy of FORD MOTOR COMPANY

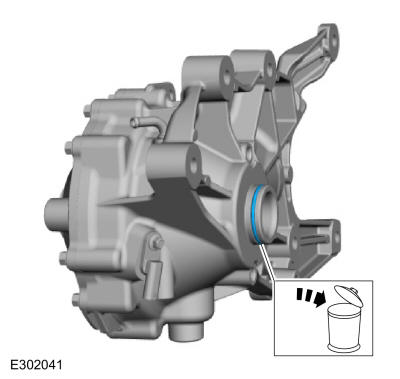

16. Remove and discard the front axle assembly seal.

    Courtesy of FORD MOTOR COMPANY

    LHD AWD/LHD RWD

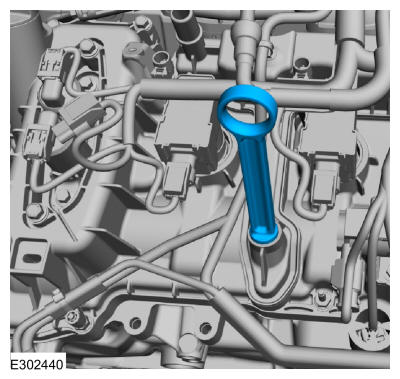

17. Remove the oil level indicator.

    Courtesy of FORD MOTOR COMPANY

18. • Detach the fuel tube retainer.
    • Disconnect the quick release coupling and remove the fuel tube assembly. Refer to: Quick Release Coupling .
    • Disconnect the quick release coupling and remove the EVAP tube. Refer to: Quick Release Coupling .

    Courtesy of FORD MOTOR COMPANY

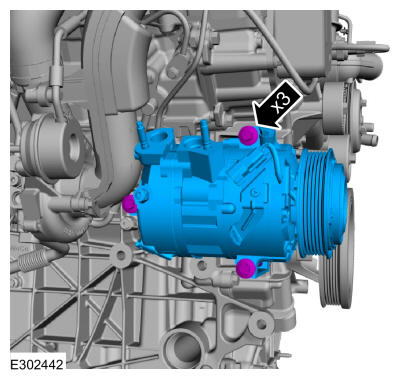

19. Remove the bolts and the A/C compressor.

    Courtesy of FORD MOTOR COMPANY

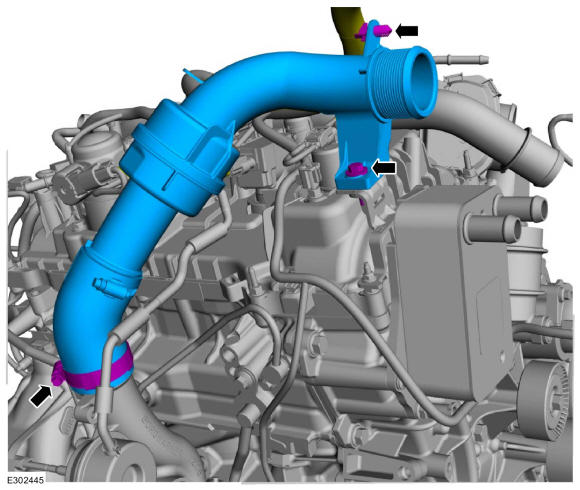

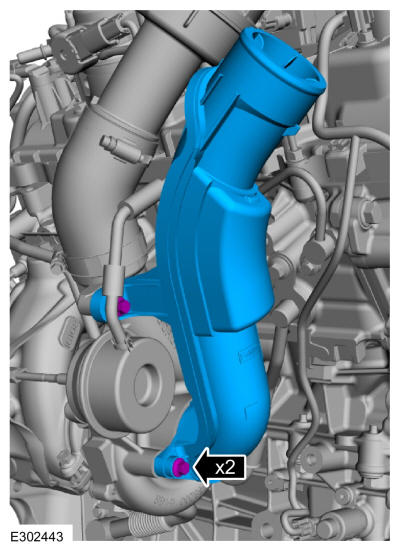

20. Remove the bolts and the air cleaner outlet pipe.

    Courtesy of FORD MOTOR COMPANY

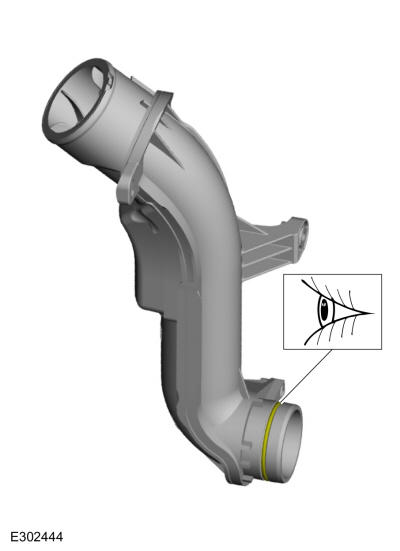

21. Inspect the O-ring seal and replace as necessary.

    Courtesy of FORD MOTOR COMPANY

22. • Detach the wiring harness retainer.
    • Remove the bolt.
    • Loosen the clamp and remove the CAC inlet pipe.

    Courtesy of FORD MOTOR COMPANY

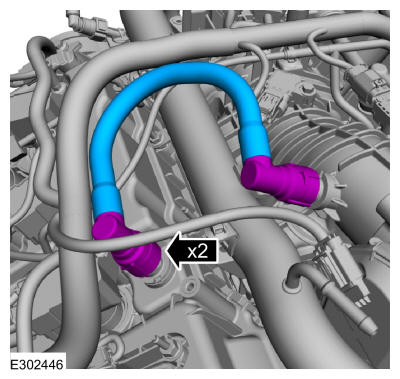

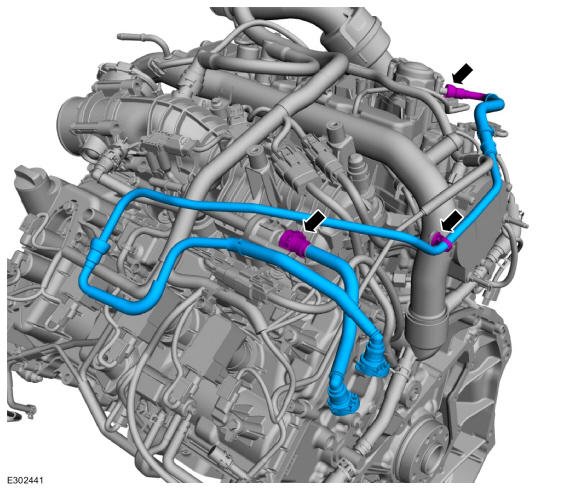

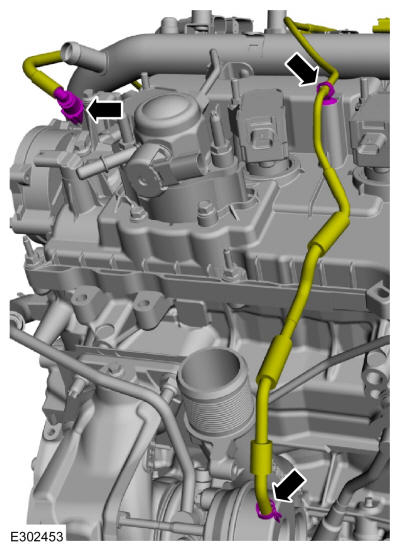

23. Disconnect the quick release couplings and remove the crankcase vent tube. Refer to: Quick Release Coupling .

    Courtesy of FORD MOTOR COMPANY

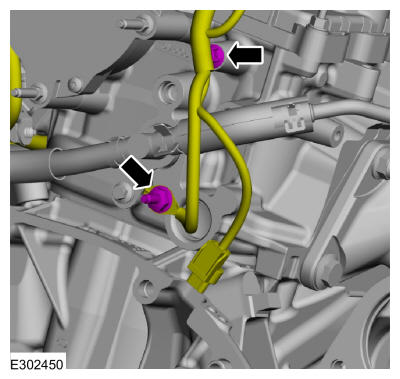

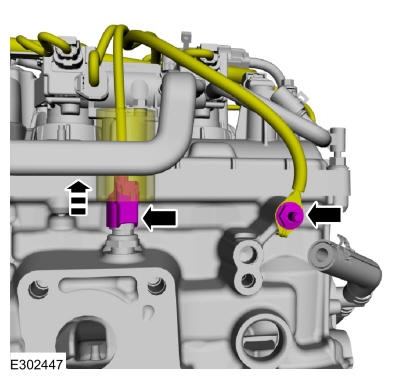

24. • Remove the stud bolt and the ground wire.
    • Slide the wiring harness insulator up.
    • Disconnect the CHT electrical connector.

    Courtesy of FORD MOTOR COMPANY

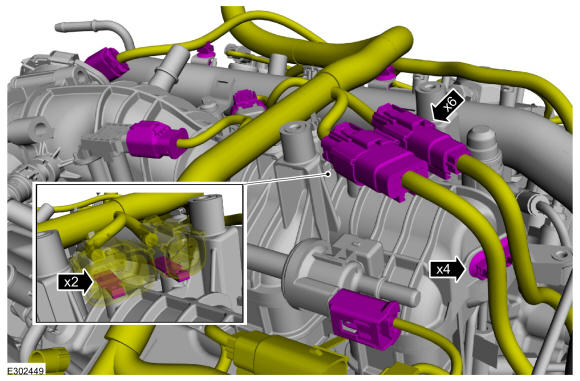

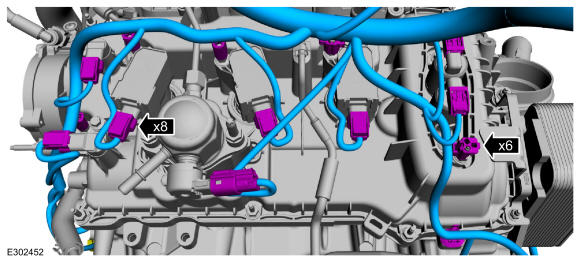

25. • Disconnect the wiring harness electrical connectors.
    • Detach the wiring harness retainers.

    Courtesy of FORD MOTOR COMPANY

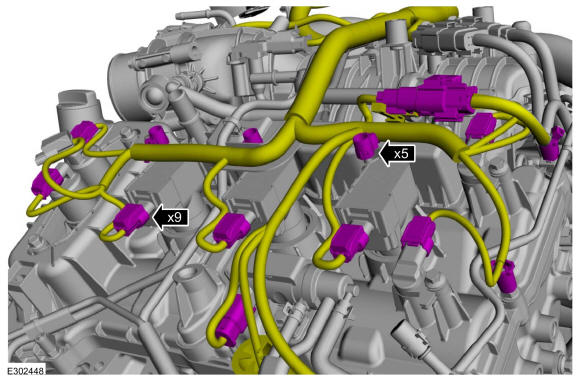

26. • Disconnect the wiring harness electrical connectors.
    • Detach the wiring harness retainers.

    Courtesy of FORD MOTOR COMPANY

27. • Remove the stud bolt and the ground wire from the rear of the RH cylinder head.
    • Detach the wiring harness retainer.

    Courtesy of FORD MOTOR COMPANY

28. • Disconnect the wiring harness electrical connectors.
    • Detach the wiring harness retainers.

    Courtesy of FORD MOTOR COMPANY

29. • Disconnect the wiring harness electrical connectors.
    • Detach the wiring harness retainers.
    • Remove the wiring harness from the engine.

    Courtesy of FORD MOTOR COMPANY

30. • Release the clamp and disconnect the vacuum hose.
    • Detach the vacuum harness retainer.
    • Disconnect the vacuum harness quick release coupling. Refer to: Quick Release Coupling .

    Courtesy of FORD MOTOR COMPANY

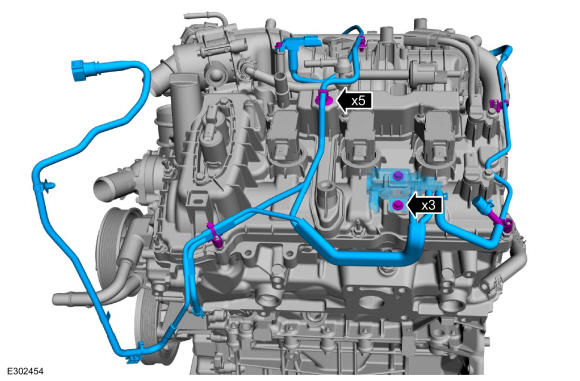

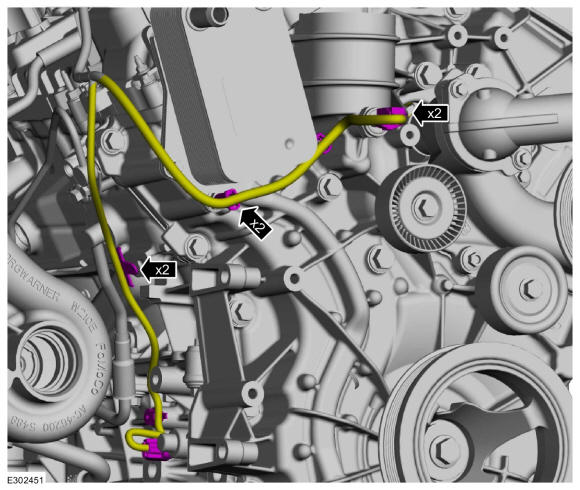

31. • Remove the bolts.
    • Detach the vacuum harness retainers.
    • Remove the vacuum harness from the engine.

    Courtesy of FORD MOTOR COMPANY

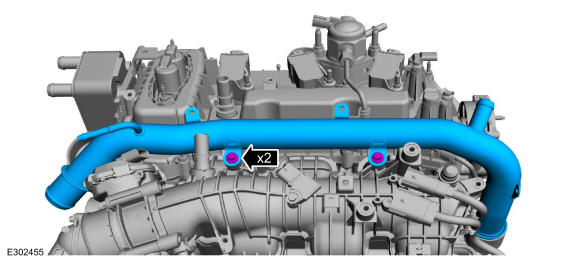

32. Remove the bolts and the coolant pipe.

    Courtesy of FORD MOTOR COMPANY

33. Inspect the O-ring seal and replace as necessary.

    Courtesy of FORD MOTOR COMPANY

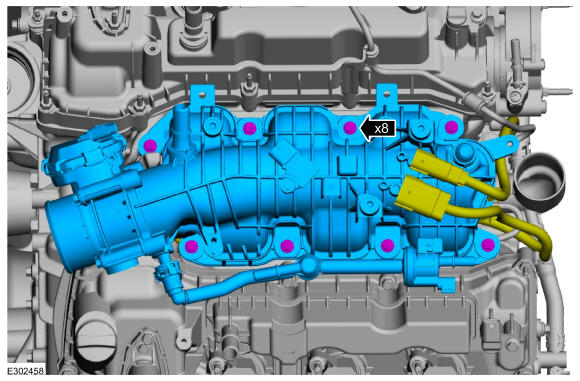

34. Loosen the bolts and remove the intake manifold.

    Courtesy of FORD MOTOR COMPANY

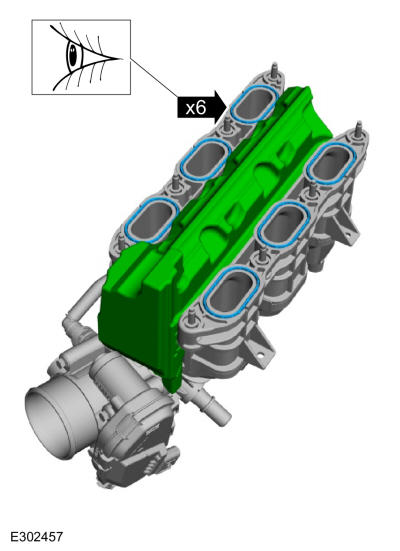

35. • Remove the insulator.
    • Remove and inspect the gaskets, replace as necessary.

    Courtesy of FORD MOTOR COMPANY

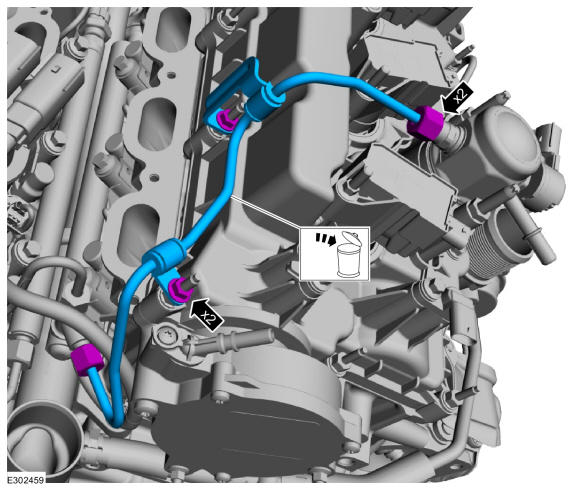

36. NOTE: To release the fuel pressure in the high-pressure fuel tube, wrap the high-pressure fuel tube flare nuts with a shop towel to absorb any residual fuel pressure during the loosening of high-pressure fuel tube flare nuts.
    • Loosen the fuel tube flare nut fittings.
    • Remove the nuts.
    • Remove and discard the fuel tube.

    Courtesy of FORD MOTOR COMPANY

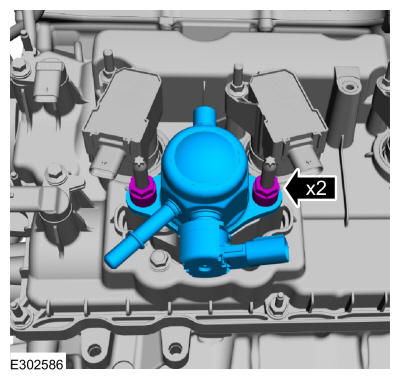

37. NOTE: Alternately loosen the high-pressure fuel pump nuts one revolution at a time.

    Remove the nuts and the high-pressure fuel pump.

    Courtesy of FORD MOTOR COMPANY

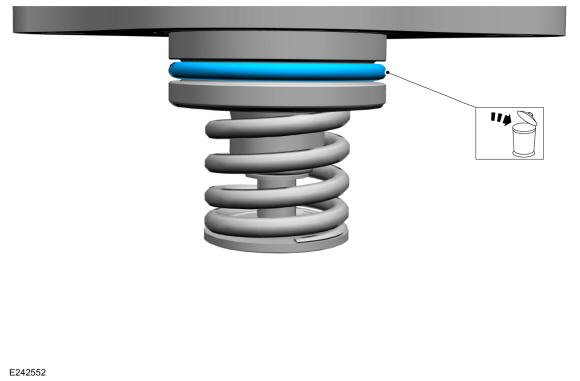

38. Remove and discard the high-pressure fuel pump O-ring seal.

    Courtesy of FORD MOTOR COMPANY

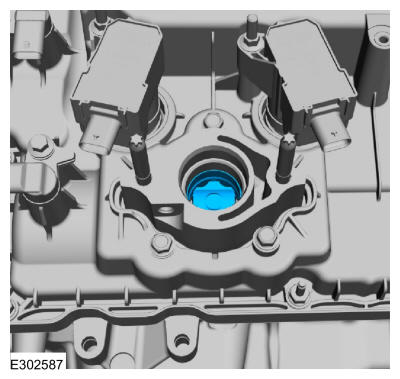

39. Remove the high-pressure fuel pump tappet.

    Courtesy of FORD MOTOR COMPANY

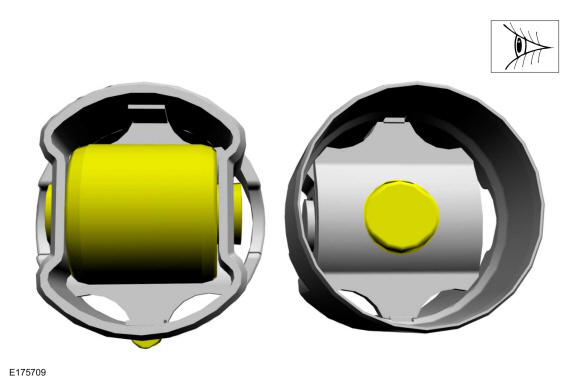

40. Inspect the high-pressure fuel pump roller tappet. If any flat spots or scoring are found, especially in the indicated areas, then inspect the high-pressure fuel pump and the high-pressure fuel pump roller tappet drive lobe. Install new components as necessary.

    Courtesy of FORD MOTOR COMPANY

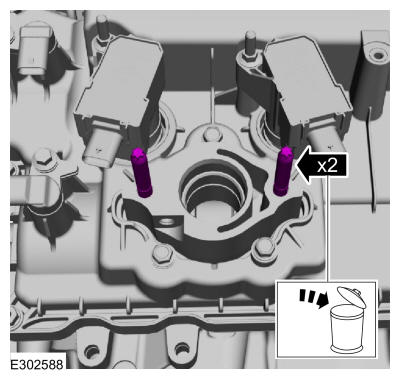

41. If damaged, remove and discard the studs.

    Courtesy of FORD MOTOR COMPANY

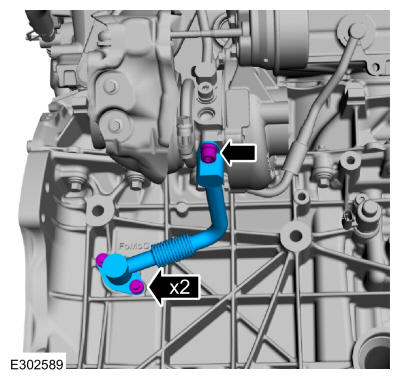

42. Remove the fasteners and the TC oil return tube.

    Courtesy of FORD MOTOR COMPANY

43. Remove and discard the TC oil return tube tube-to-engine block gasket.

    Courtesy of FORD MOTOR COMPANY

44. Remove and discard the TC oil return tube O-ring seal.

    Courtesy of FORD MOTOR COMPANY

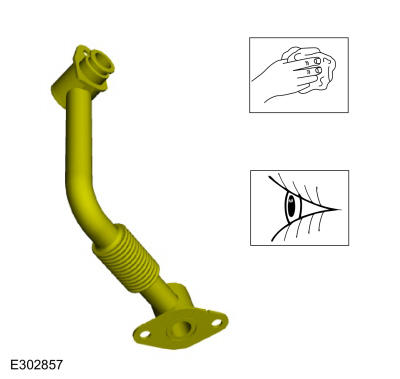

45. NOTE: Inspect for blockage in the turbocharger tube. Check the tube, the sealing surfaces and the flange for flatness and damage. Ensure that the retaining bracket is not bent, check for square-ness of the retaining bracket to the O-ring area. Use brake cleaner and a NYLON brush to clean. DO NOT USE A METAL BRUSH; DAMAGE TO SEALING AREA WILL RESULT IN LEAKS.

    Clean and inspect the TC oil return tube.

    Material

    : Motorcraft® Metal Brake Parts Cleaner / PM-4-A, PM-4-B

    Courtesy of FORD MOTOR COMPANY

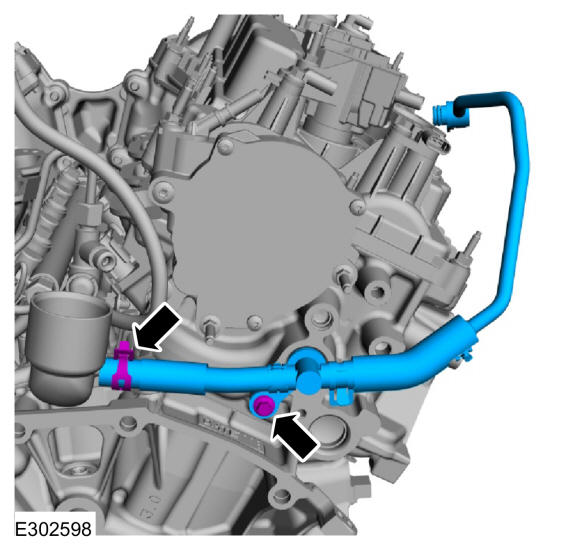

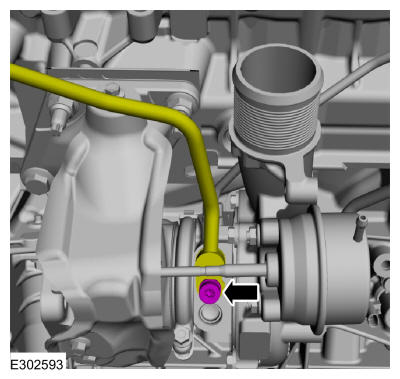

46. Remove the TC coolant return tube bolt.

    Courtesy of FORD MOTOR COMPANY

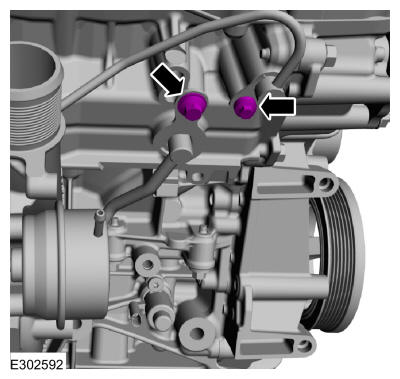

47. • Remove the TC oil supply tube bolt.
    • Remove the TC coolant supply tube bolt.

    Courtesy of FORD MOTOR COMPANY

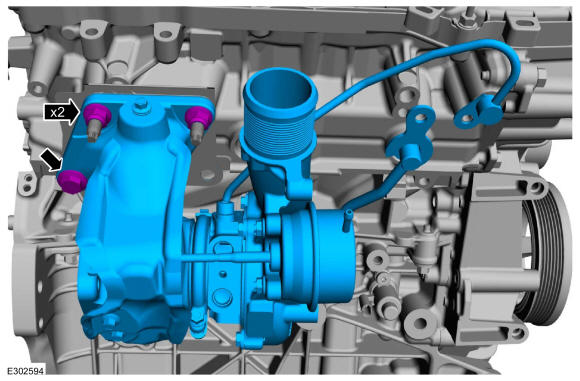

48. Remove the fasteners and the TC.

    Courtesy of FORD MOTOR COMPANY

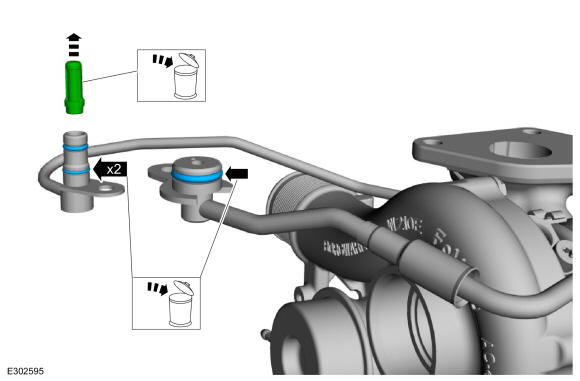

49. • Remove and discard the TC oil supply tube filter and O-ring seals.
    • Remove and discard the TC coolant supply tube O-ring seal.

    Courtesy of FORD MOTOR COMPANY

50. NOTE: Inspect the turbocharger tubes and the sealing surfaces. Ensure that the retaining brackets are not bent, check for square-ness of the retaining brackets to the O-ring areas. Use brake cleaner and a NYLON brush to clean. DO NOT USE A METAL BRUSH; DAMAGE TO SEALING AREA WILL RESULT IN LEAKS.
    • Clean and inspect the TC oil supply tube.

      Material

      : Motorcraft® Metal Brake Parts Cleaner / PM-4-A, PM-4-B

    • Clean and inspect the TC coolant supply tube.

      Material

      : Motorcraft® Metal Brake Parts Cleaner / PM-4-A, PM-4-B

    Courtesy of FORD MOTOR COMPANY

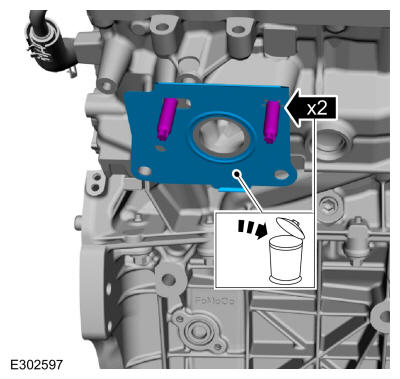

51. • Remove and discard the TC gasket.
    • If damaged, remove and discard the TC stud(s).

    Courtesy of FORD MOTOR COMPANY

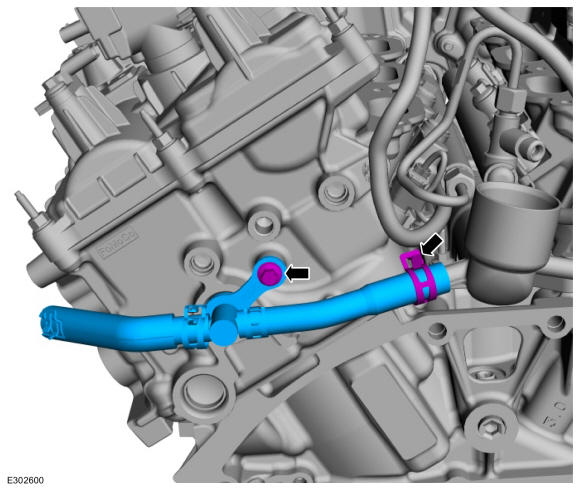

52. • Remove the bolt.
    • Release the clamp and remove the TC coolant return tube.

    Courtesy of FORD MOTOR COMPANY

53. Remove and discard the O-ring seals.

    Courtesy of FORD MOTOR COMPANY

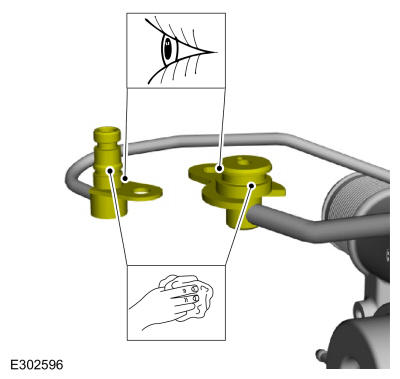

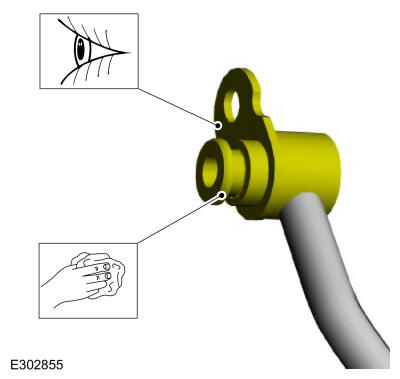

54. NOTE: Inspect the turbocharger tube and the sealing surfaces. Ensure that the retaining bracket is not bent, check for square-ness of the retaining brackets to the O-ring area. Use brake cleaner and a NYLON brush to clean. DO NOT USE A METAL BRUSH; DAMAGE TO SEALING AREA WILL RESULT IN LEAKS.

    Clean and inspect the TC coolant return tube fitting.

    Material

    : Motorcraft® Metal Brake Parts Cleaner / PM-4-A, PM-4-B

    Courtesy of FORD MOTOR COMPANY

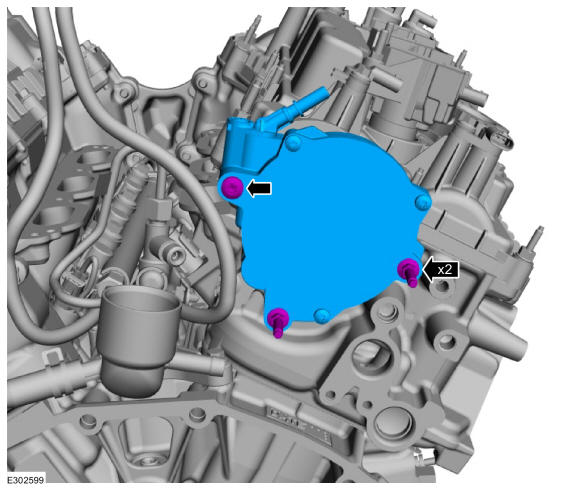

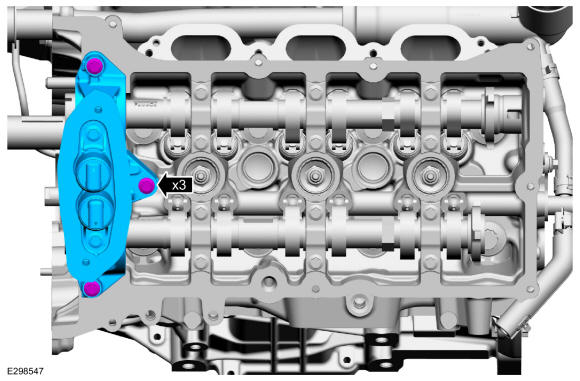

55. Remove the fasteners and the vacuum pump.

    Courtesy of FORD MOTOR COMPANY

56. • Remove the bolt.
    • Release the clamp and remove the TC coolant return tube.

    Courtesy of FORD MOTOR COMPANY

57. Remove and discard the O-ring seal.

    Courtesy of FORD MOTOR COMPANY

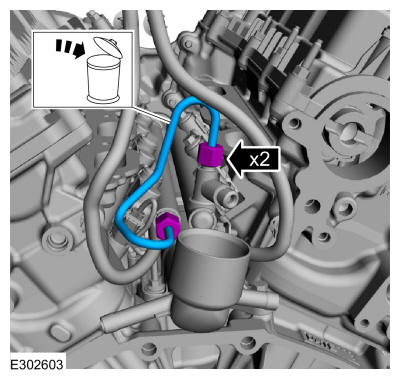

58. • Loosen the fuel tube flare nut fittings.
    • Remove and discard the fuel tube

    Courtesy of FORD MOTOR COMPANY

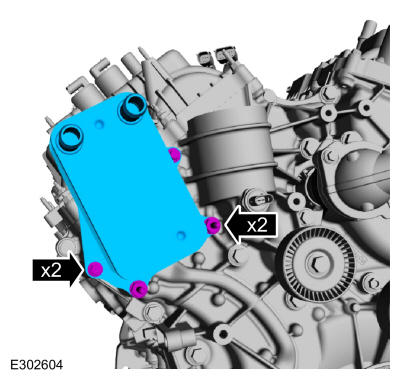

59. Remove the bolts and the oil cooler.

    Courtesy of FORD MOTOR COMPANY

60. Inspect the oil cooler. If metal or aluminum material is present in the oil cooler, mechanical concerns exist. Failure to correct these concerns may cause engine failure. Refer to: Engine .

    Courtesy of FORD MOTOR COMPANY

61. Remove and discard the oil cooler gasket.

    Courtesy of FORD MOTOR COMPANY

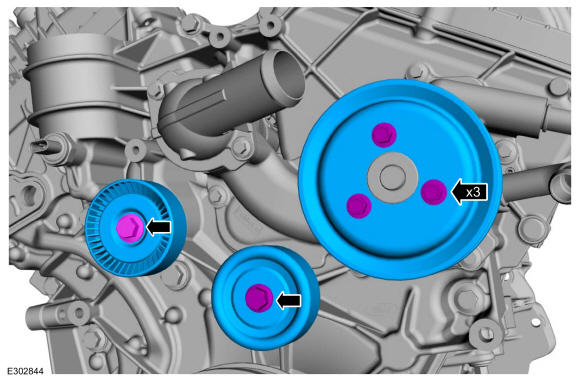

62. • Remove the bolts and the coolant pump pulley.
    • Remove the bolt and the idler pulley.
    • Remove the bolt and the idler pulley.

    Courtesy of FORD MOTOR COMPANY

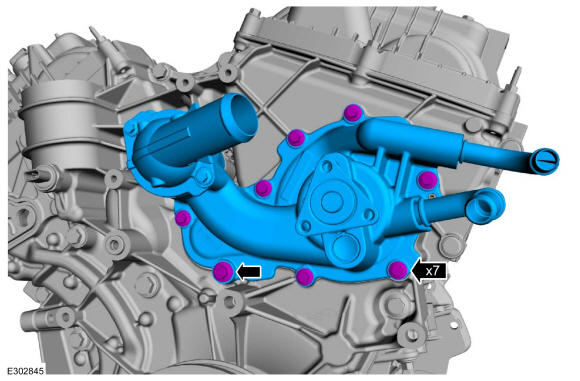

63. Remove the bolts and the coolant pump.

    Courtesy of FORD MOTOR COMPANY

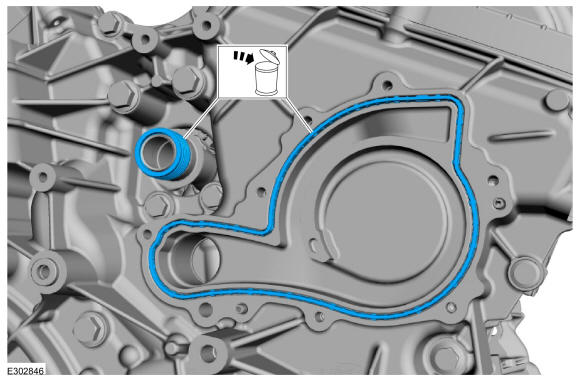

64. Remove and discard the coolant pump gasket and seal.

    Courtesy of FORD MOTOR COMPANY

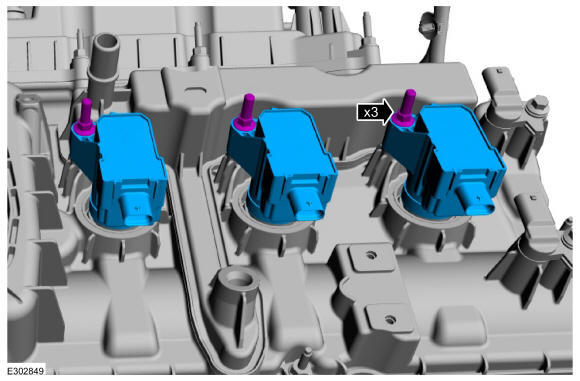

65. NOTE: When removing the ignition coil-on-plugs, a slight twisting motion will break the seal and ease removal.

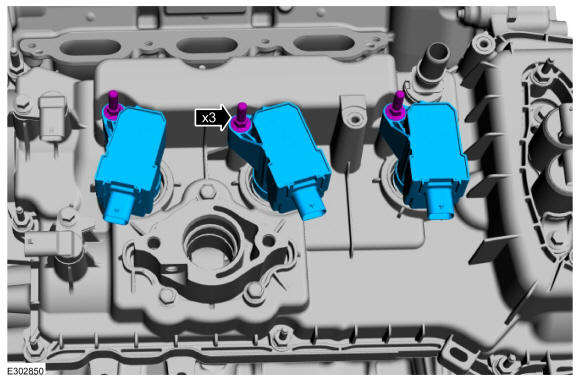

    Remove the stud bolts and the LH ignition coil-on-plugs.

    Courtesy of FORD MOTOR COMPANY

66. NOTE: When removing the ignition coil-on-plugs, a slight twisting motion will break the seal and ease removal.

    Remove the stud bolts and the RH ignition coil-on-plugs.

    Courtesy of FORD MOTOR COMPANY

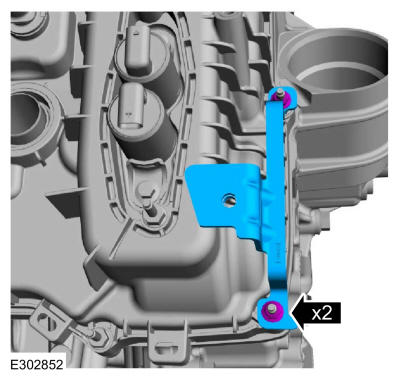

67. Remove the nuts and the bracket.

    Courtesy of FORD MOTOR COMPANY

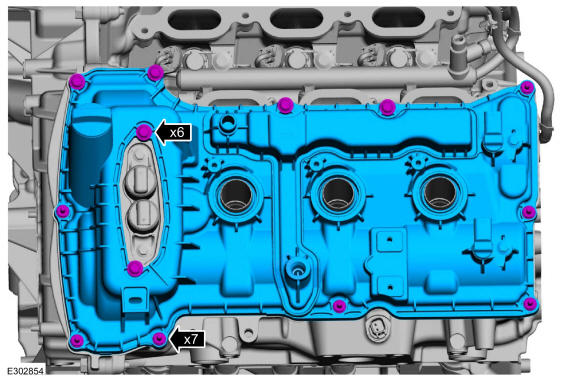

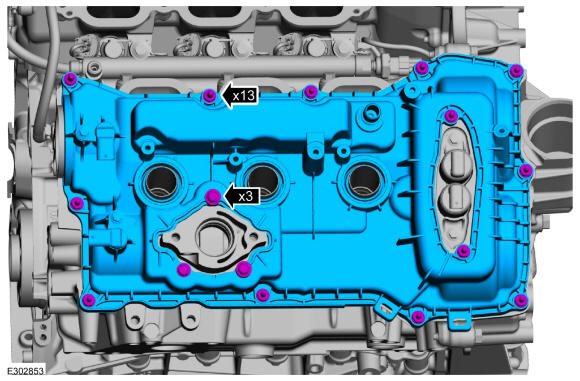

68. Loosen the fasteners and remove the valve cover.

    Courtesy of FORD MOTOR COMPANY

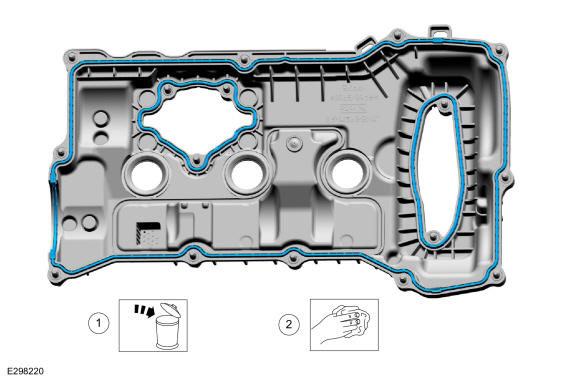

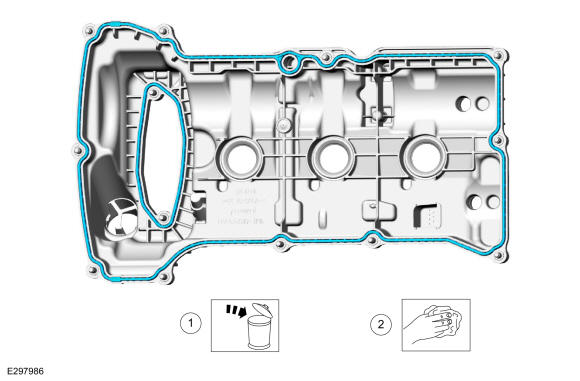

69. 1. Remove and discard the gaskets.
    2. Clean the valve cover gasket groove with soap and water or a suitable solvent.

    Courtesy of FORD MOTOR COMPANY

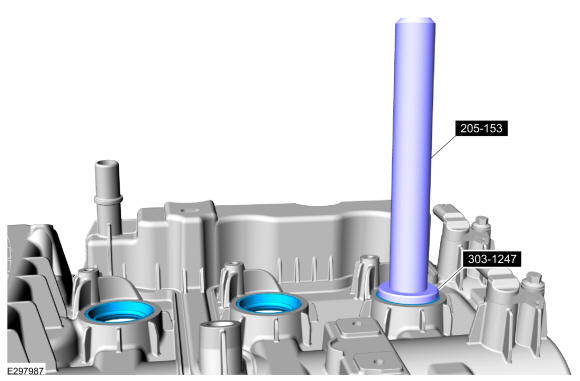

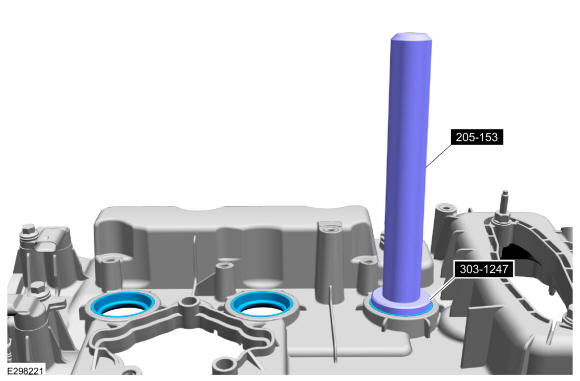

70. Inspect the spark plug seals. Remove any damaged seals using the special tools. Use Special Service Tool: 205-153 (T80T-4000-W) Handle., 303-1247 VCT Spark Plug Tube Seal Remover and Installer.

    Courtesy of FORD MOTOR COMPANY

71. Loosen the fasteners and remove the valve cover.

    Courtesy of FORD MOTOR COMPANY

72. 1. Remove and discard the gaskets.
    2. Clean the valve cover gasket groove with soap and water or a suitable solvent.

    Courtesy of FORD MOTOR COMPANY

73. Inspect the spark plug seals. Remove any damaged seals using the special tools. Use Special Service Tool: 205-153 (T80T-4000-W) Handle., 303-1247 VCT Spark Plug Tube Seal Remover and Installer.

    Courtesy of FORD MOTOR COMPANY

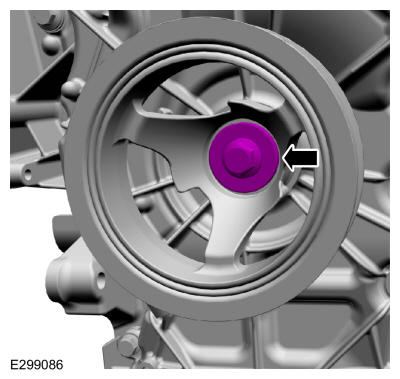

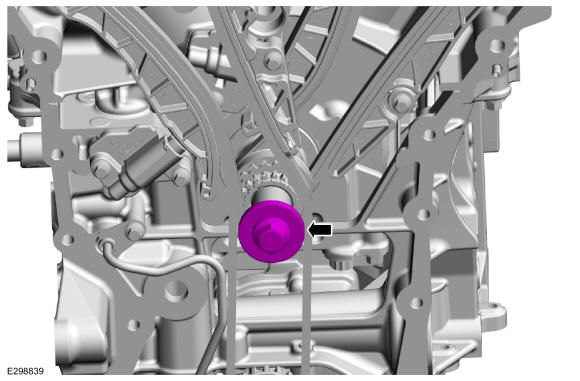

74. Remove the crankshaft pulley bolt.

    Courtesy of FORD MOTOR COMPANY

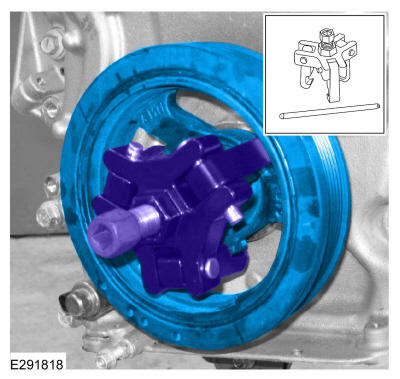

75. NOTE: Use a universal puller (such as an OTC 6667, or equivalent).

    Using a universal puller, remove the crankshaft pulley.

    Courtesy of FORD MOTOR COMPANY

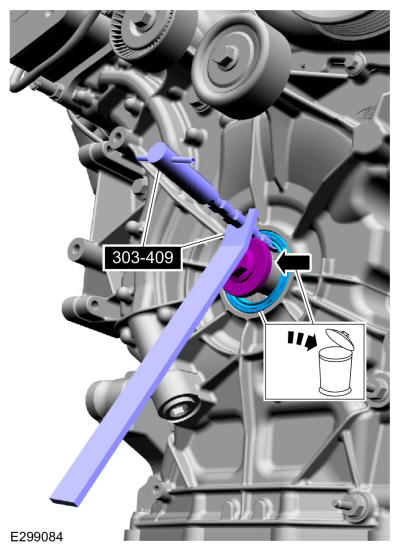

76. NOTE: Use care not to damage the engine front cover or the crankshaft when removing the seal.
    1. Install the crankshaft pulley bolt.
    2. Using the special tool, remove and discard the crankshaft front oil seal. Use Special Service Tool: 303-409 (T92C-6700-CH) Remover, Crankshaft Seal.
    3. NOTE: If further disassembly of the engine will be performed, retain the original crankshaft pulley bolt for turning the crankshaft while the pulley is removed.

       Remove and discard the crankshaft pulley bolt.

    Courtesy of FORD MOTOR COMPANY

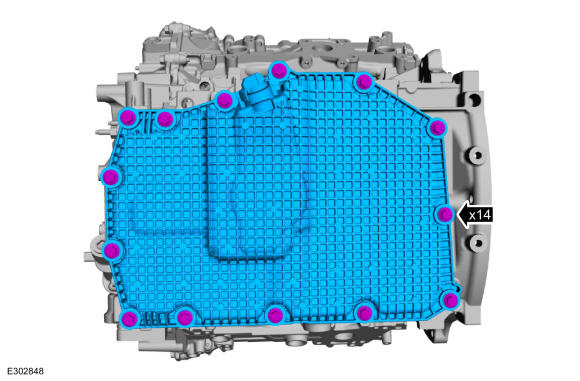

77. Remove the bolts and the oil pan.

    Courtesy of FORD MOTOR COMPANY

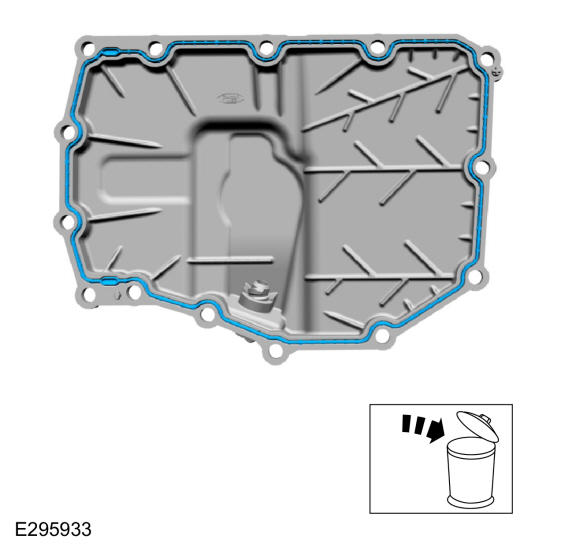

78. Remove and discard the oil pan gasket.

    Courtesy of FORD MOTOR COMPANY

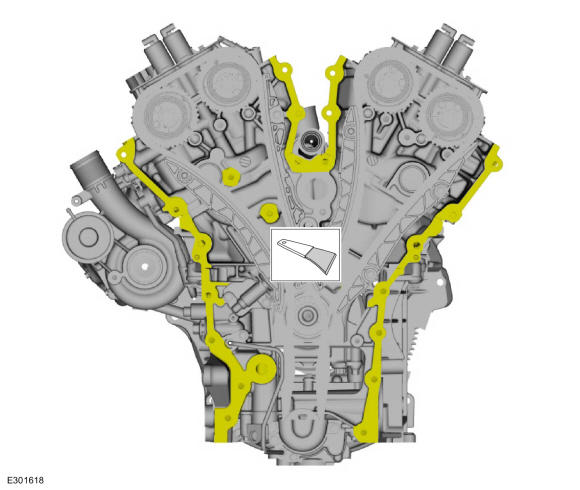

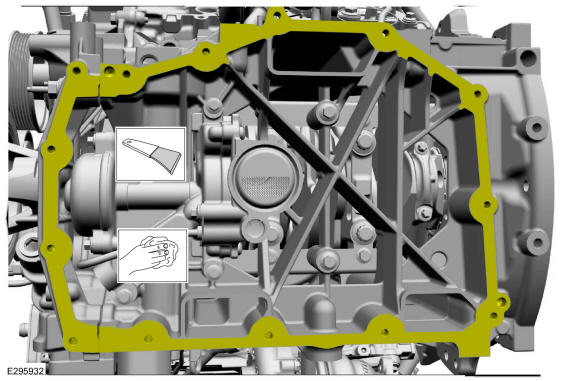

79. NOTE: Do not use metal scrapers, wire brushes, power abrasive discs or other abrasive means to clean the sealing surfaces. These tools cause scratches and gouges, which make leak paths. Use a plastic scraping tool to remove traces of sealant.

    Make sure that the mating faces of the engine block and engine front cover are clean and free of foreign material.

    Courtesy of FORD MOTOR COMPANY

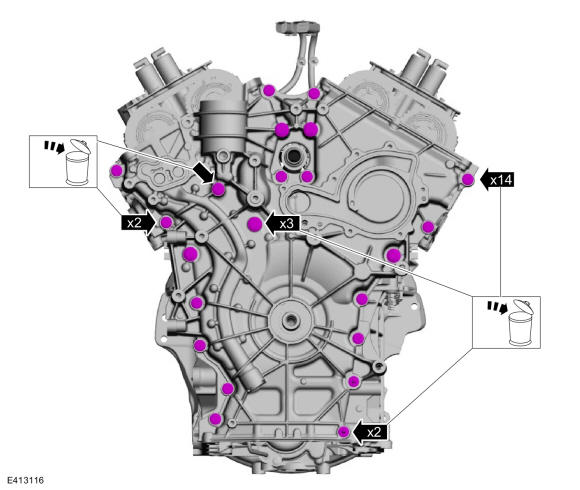

80. NOTE: There are 5 different types of fasteners, note location of each type fastener for assembly.

    Remove and discard the engine front cover fasteners.

    Courtesy of FORD MOTOR COMPANY

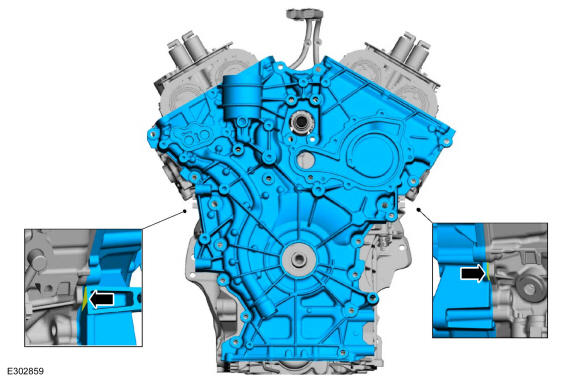

81. Using a large flat-bladed screwdriver and the indicated pry pads, release the sealer and remove the engine front cover. Use the General Equipment: Flat-Bladed Screwdriver

    Courtesy of FORD MOTOR COMPANY

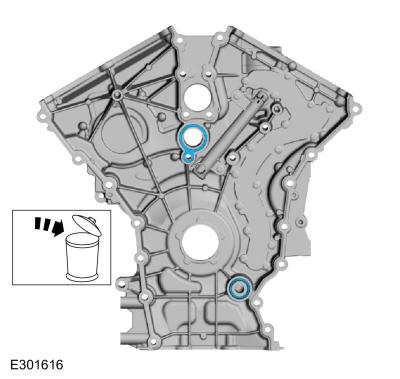

82. Remove and discard the engine front cover gaskets.

    Courtesy of FORD MOTOR COMPANY

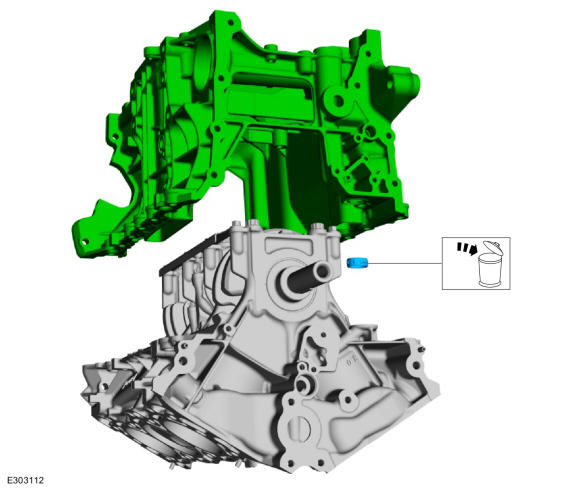

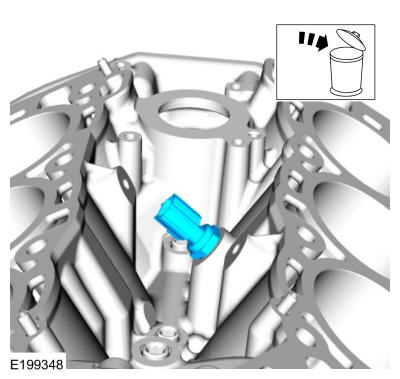

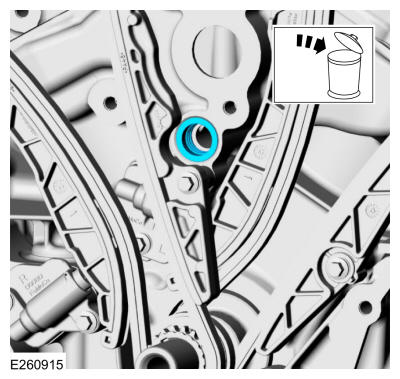

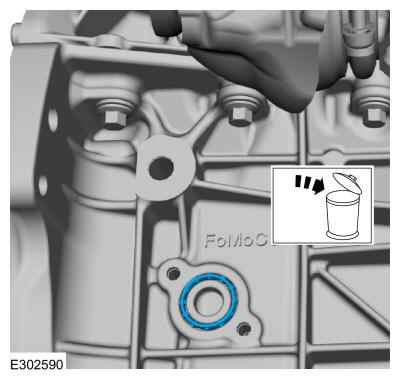

83. Remove and discard the oil gallery seal (00815).

    Courtesy of FORD MOTOR COMPANY

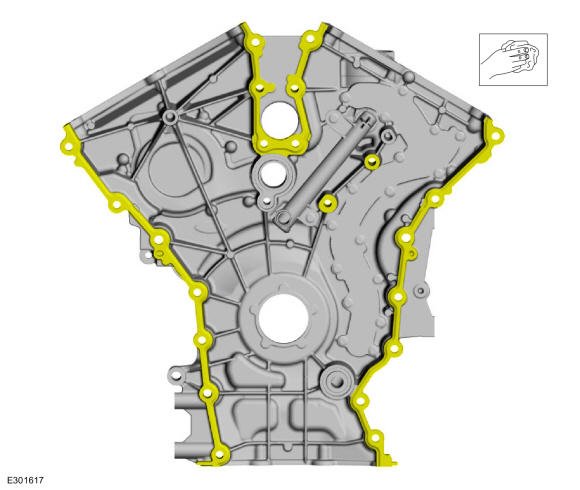

84. NOTE: Only use a 3M™ Roloc® Bristle Disk (2-in white, part number 07528) to clean the engine front cover. Do not use metal scrapers, wire brushes or any other power abrasive disk to clean front cover.
    • Clean the engine front cover using a 3M™ Roloc® Bristle Disk (2-in white, part number 07528) in a suitable tool turning at the recommended speed of 15, 000 rpm. Refer to: RTV Sealing Surface Cleaning and Preparation .
    • Thoroughly wash the engine front cover to remove any foreign material, including any abrasive particles created during the cleaning process.

      Material

      : Motorcraft® Silicone Gasket Remover / ZC-30-A

      Material

      : Motorcraft® Metal Brake Parts Cleaner / PM-4-A, PM-4-B

      Material

      : Motorcraft® Metal Surface Prep Wipes / ZC-31-B

    Courtesy of FORD MOTOR COMPANY

85. NOTE: Place clean, lint-free shop towels over exposed engine cavities. Carefully remove the towels so foreign material is not dropped into the engine. Any foreign material (including any material created while cleaning gasket surfaces) that enters the oil passages may cause engine failure.
    NOTE: Do not use wire brushes, power abrasive discs or 3M™ Roloc® Bristle Disk (2-in white part number 07528) to clean the sealing surfaces. These tools cause scratches and gouges that make leak paths. They also cause contamination that will cause premature engine failure. Remove all traces of the gasket.

    Make sure that the mating faces of the engine block are clean and free of foreign material. Refer to: RTV Sealing Surface Cleaning and Preparation

    ENGINE SYSTEM - GENERAL INFORMATION . Use the General Equipment: Plastic Scraper

    Material

    : Motorcraft® Silicone Gasket Remover / ZC-30-A

    Material

    : Motorcraft® Metal Brake Parts Cleaner / PM-4-A, PM-4-B

    Material

    : Motorcraft® Metal Surface Prep Wipes / ZC-31-B

    Courtesy of FORD MOTOR COMPANY

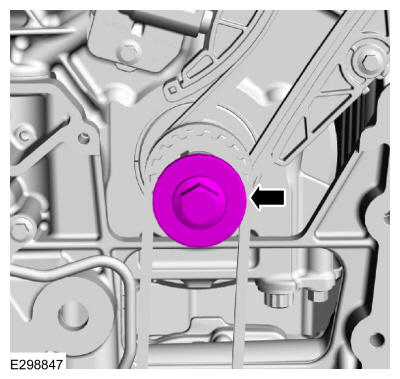

86. NOTE: Rotate the crankshaft utilizing only the original crankshaft pulley bolt. Failure to follow this direction may cause damage to the crankshaft and result in engine failure.

    Install the original crankshaft pulley bolt.

    Courtesy of FORD MOTOR COMPANY

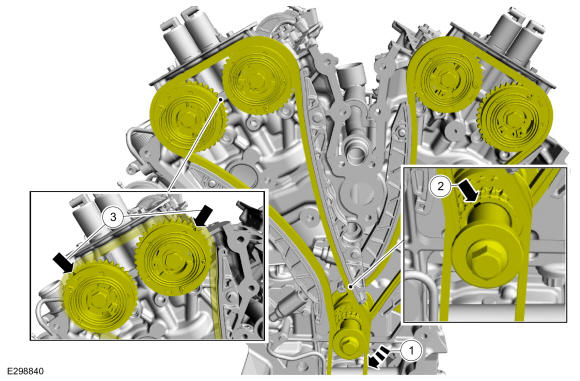

87. NOTE: The VCT units have 2 timing marks on them, a triangle and a circle. For removal and installation of the RH side the triangle marks are used.
    1. Rotate the crankshaft clockwise.
    2. Position the crankshaft sprocket keyway at the 11 o'clock position.
    3. Verify the triangle  timing marks on the VCT units are at the 2 o'clock (intake) and 11 o'clock (exhaust) positions. If the circle  timing marks are at these positions the crankshaft must be turned clockwise one revolution (360 degrees).

    Courtesy of FORD MOTOR COMPANY

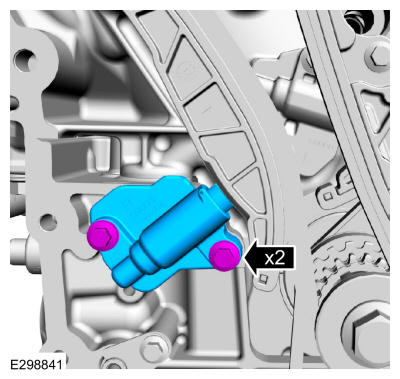

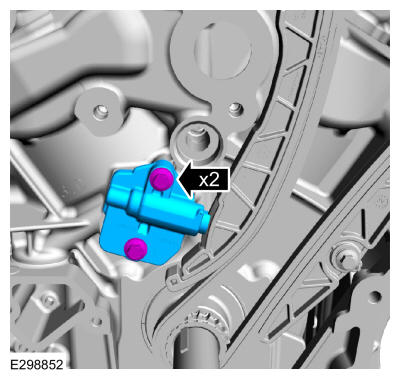

88. Remove the bolts and the RH timing chain tensioner.

    Courtesy of FORD MOTOR COMPANY

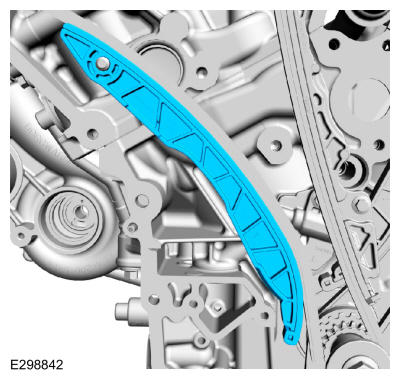

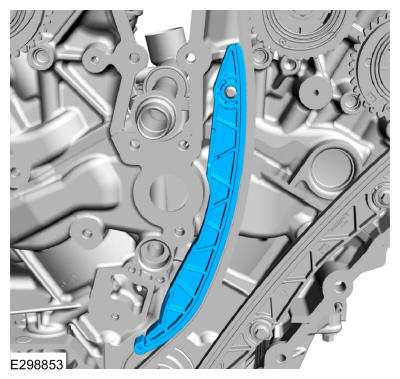

89. Remove the RH timing chain tensioner arm.

    Courtesy of FORD MOTOR COMPANY

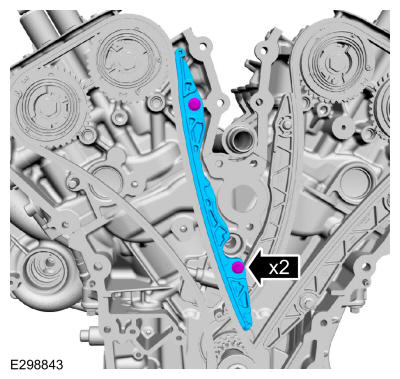

90. Remove the bolts and the RH timing chain guide.

    Courtesy of FORD MOTOR COMPANY

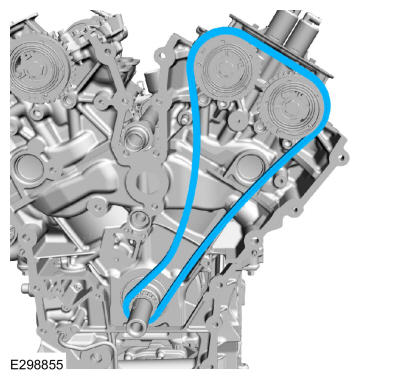

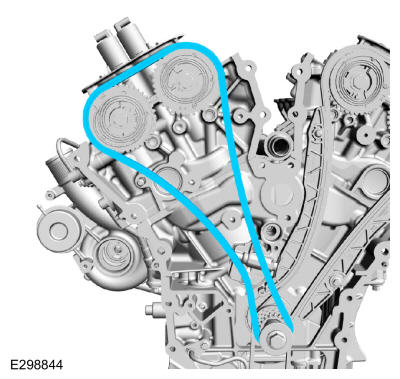

91. Remove the RH timing chain.

    Courtesy of FORD MOTOR COMPANY

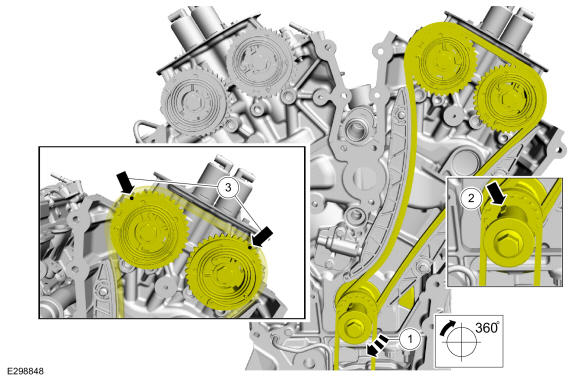

92. NOTE: The crankshaft must be rotated clockwise one revolution (360 degrees). Failure to do so will result in incorrect camshaft timing.
    NOTE: The VCT units have 2 timing marks on them, a triangle and a circle. For removal and installation of the LH side the circle marks are used.
    1. Rotate the crankshaft clockwise one revolution (360 degrees).
    2. Position the crankshaft sprocket keyway at the 11 o'clock position.
    3. The circle  timing marks on the VCT units will be at the 10 o'clock (intake) and 12:30 (exhaust) positions.

    Courtesy of FORD MOTOR COMPANY

93. Remove the original crankshaft pulley bolt.

    Courtesy of FORD MOTOR COMPANY

94. Remove the timing chain sprocket.

    Courtesy of FORD MOTOR COMPANY

95. Remove the bolts and the splash shield.

    Courtesy of FORD MOTOR COMPANY

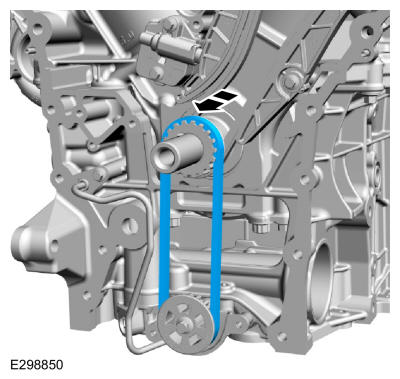

96. Slide the oil pump drive belt off of the crankshaft sprocket and remove the belt.

    Courtesy of FORD MOTOR COMPANY

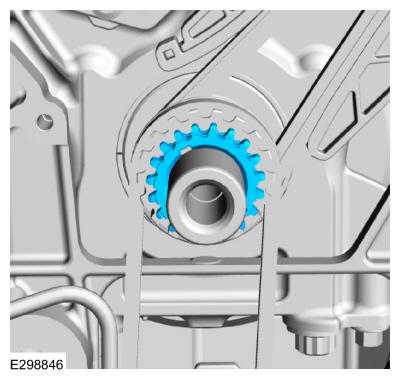

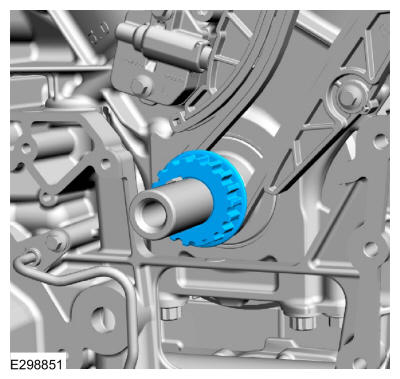

97. Remove the crankshaft sprocket.

    Courtesy of FORD MOTOR COMPANY

98. Remove the bolts and the LH timing chain tensioner.

    Courtesy of FORD MOTOR COMPANY

99. Remove the LH timing chain tensioner arm.

    Courtesy of FORD MOTOR COMPANY

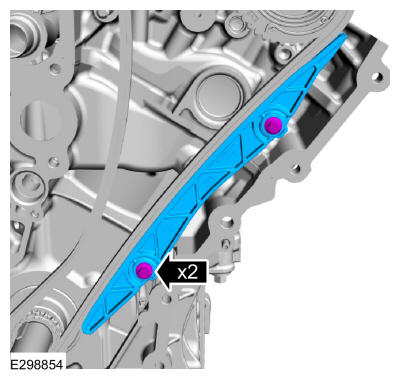

100. Remove the bolts and the LH timing chain guide.

     Courtesy of FORD MOTOR COMPANY

101. Remove the LH timing chain.

     Courtesy of FORD MOTOR COMPANY

102. Remove the timing chain sprocket.

     Courtesy of FORD MOTOR COMPANY

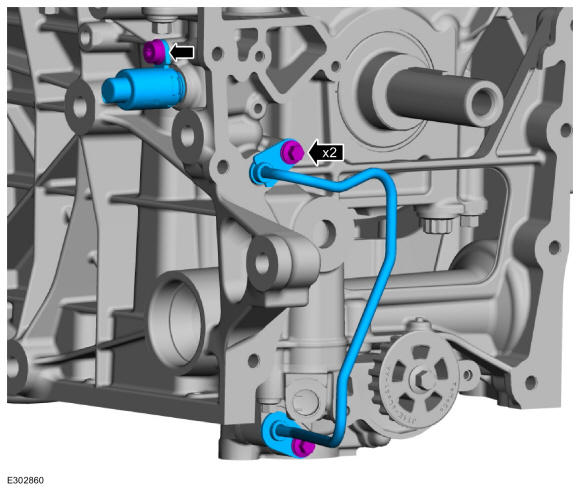

103. • Remove the bolts and the oil return tube,
     • Remove the bolt and the oil control solenoid.

     Courtesy of FORD MOTOR COMPANY

104. Remove and discard the O-ring seals.

     Courtesy of FORD MOTOR COMPANY

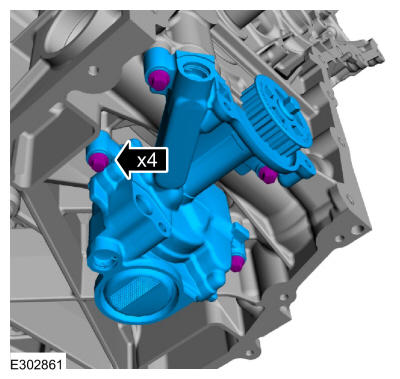

105. Remove the bolts and the oil pump.

     Courtesy of FORD MOTOR COMPANY

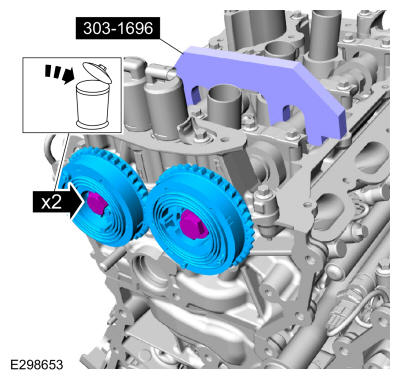

106. 1. Install Special Service Tool: 303-1696 Camshaft holding fixture.
     2. Remove and discard the VCT unit bolts.
     3. Remove the VCT units.
     4. Remove Special Service Tool: 303-1696 Camshaft holding fixture.

     Courtesy of FORD MOTOR COMPANY

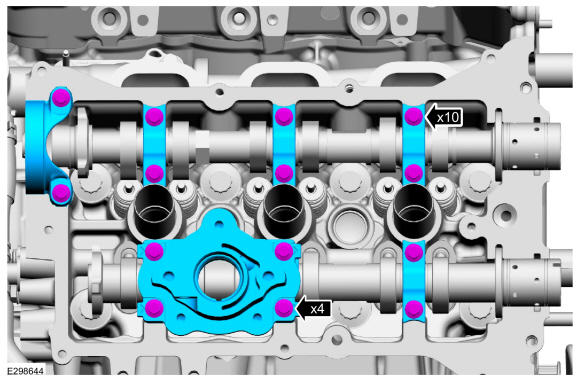

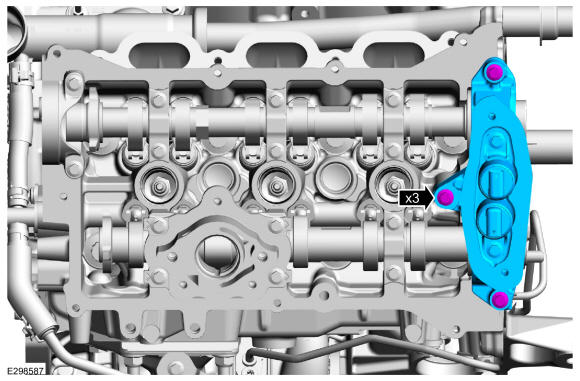

107. NOTE: The front camshaft bearing mega cap must be removed first and then the remaining camshaft bearing caps. Failure to follow this direction may result in damage to the engine.

     Remove the bolts and the front camshaft bearing mega cap.

     Courtesy of FORD MOTOR COMPANY

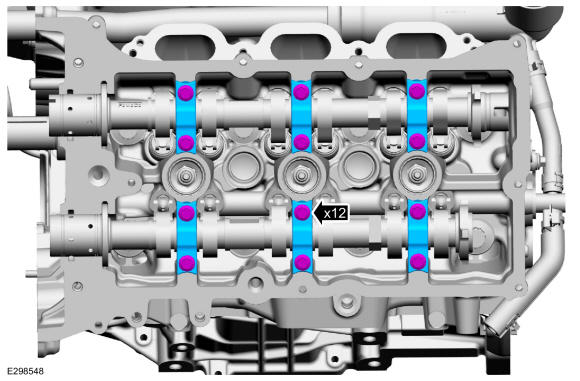

108. Remove the bolts and the camshaft bearing caps.

     Courtesy of FORD MOTOR COMPANY

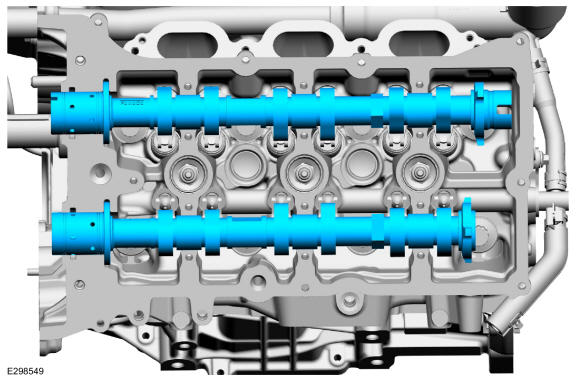

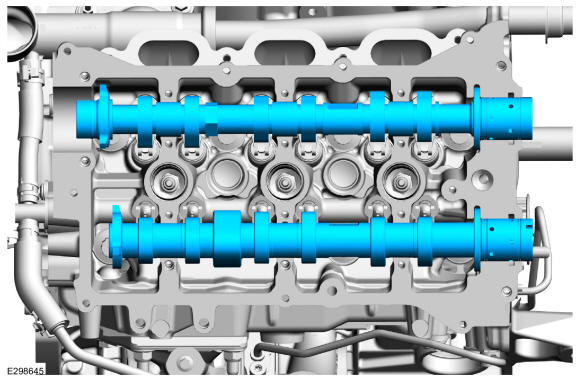

109. Remove the intake and exhaust camshafts.

     Courtesy of FORD MOTOR COMPANY

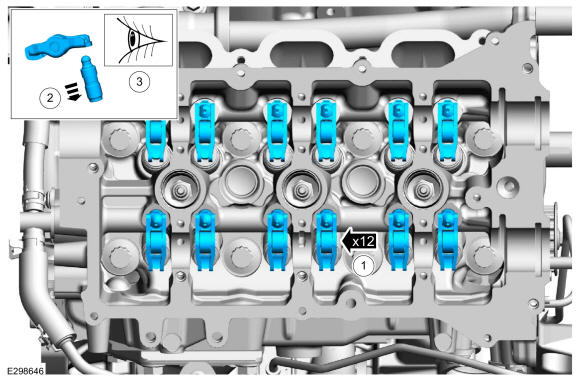

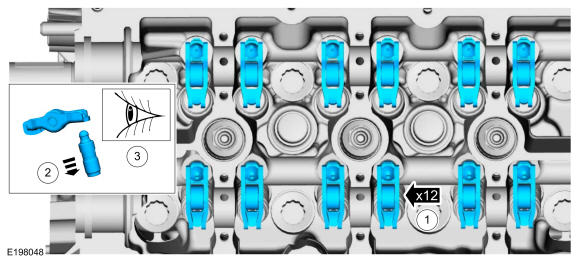

110. 1. Remove the camshaft roller follower and hydraulic lash adjuster assemblies.
     2. Separate the hydraulic lash adjusters from the spring clips on the camshaft roller followers.
     3. Inspect the hydraulic lash adjuster and roller follower for damage. If any damage is found, inspect the camshaft lobes and valves for damage. Replace damaged components as necessary.

     Courtesy of FORD MOTOR COMPANY

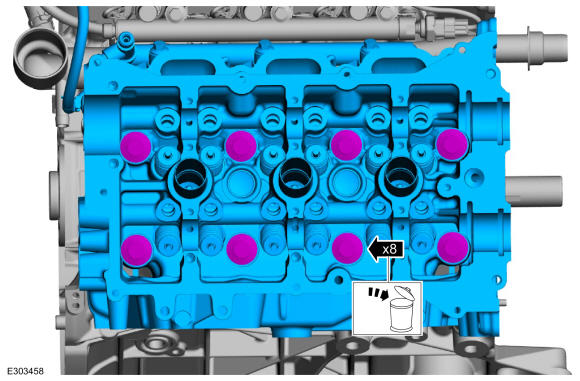

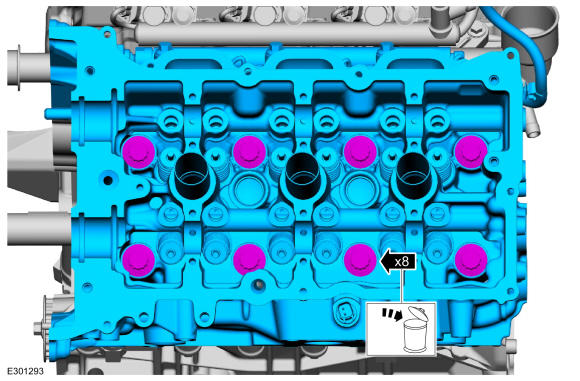

111. • Remove and discard the cylinder head bolts.
     • Remove the cylinder head.

     Courtesy of FORD MOTOR COMPANY

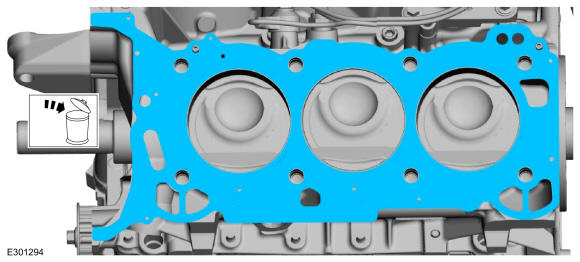

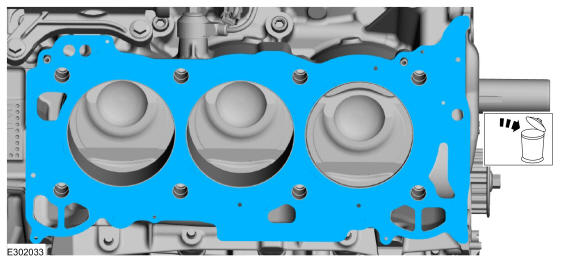

112. Remove and discard the cylinder head gasket.

     Courtesy of FORD MOTOR COMPANY

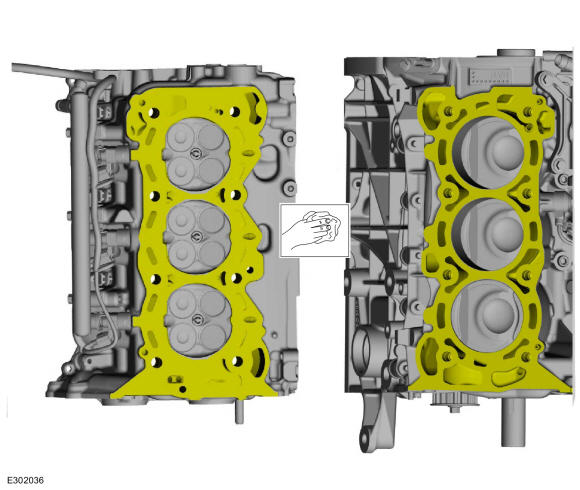

113. • Clean and inspect the cylinder head-to-cylinder block mating surfaces of both the cylinder head and the cylinder block.
     • Refer to: Cylinder Head Distortion .
     • Refer to: Cylinder Block Distortion .

     Courtesy of FORD MOTOR COMPANY

114. 1. Install Special Service Tool: 303-1248 Camshaft holding tools.
     2. Remove and discard the VCT unit bolts.
     3. Remove the VCT units.
     4. Remove Special Service Tool: 303-1248 Camshaft holding tools.

     Courtesy of FORD MOTOR COMPANY

115. NOTE: The front camshaft bearing mega cap must be removed first and then the remaining camshaft bearing caps. Failure to follow this direction may result in damage to the engine.

     Remove the bolts and the front camshaft bearing mega cap.

     Courtesy of FORD MOTOR COMPANY

116. Remove the bolts and the camshaft bearing caps.

     Courtesy of FORD MOTOR COMPANY

117. Remove the intake and exhaust camshafts.

     Courtesy of FORD MOTOR COMPANY

118. 1. Remove the camshaft roller follower and hydraulic lash adjuster assemblies.
     2. Separate the hydraulic lash adjusters from the spring clips on the camshaft roller followers.
     3. Inspect the hydraulic lash adjuster and roller follower for damage. If any damage is found, inspect the camshaft lobes and valves for damage. Replace damaged components as necessary.

     Courtesy of FORD MOTOR COMPANY

119. • Remove and discard the cylinder head bolts.
     • Remove the cylinder head.

     Courtesy of FORD MOTOR COMPANY

120. Remove and discard the cylinder head gasket.

     Courtesy of FORD MOTOR COMPANY

121. • Clean and inspect the cylinder head-to-cylinder block mating surfaces of both the cylinder head and the cylinder block.
     • Refer to: Cylinder Head Distortion .
     • Refer to: Cylinder Block Distortion .

     Courtesy of FORD MOTOR COMPANY

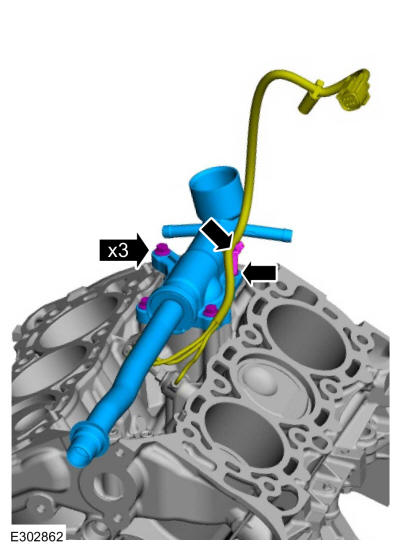

122. 1. Detach the wiring harness retainer from the stud bolt
     2. Remove the stud bolt, the nuts and the coolant outlet connector pipe.

     Courtesy of FORD MOTOR COMPANY

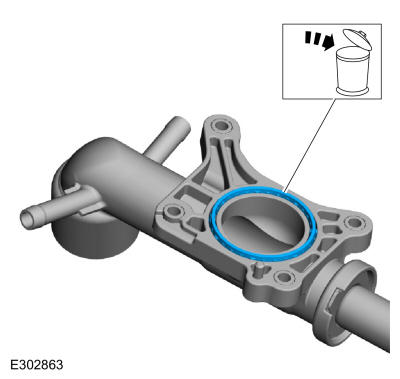

123. Remove and discard the coolant outlet connector pipe gasket.

     Courtesy of FORD MOTOR COMPANY

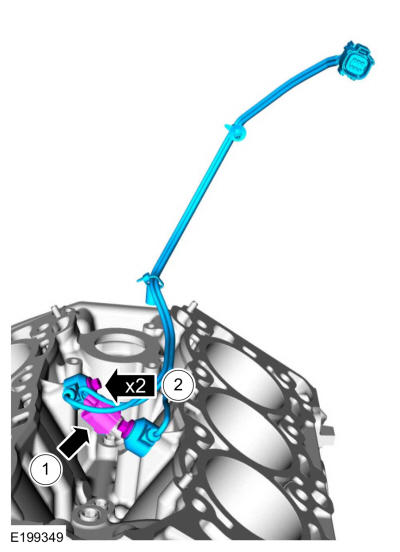

124. 1. Disconnect the ECT sensor electrical connector.
     2. Remove the bolts and the KS assembly.

     Courtesy of FORD MOTOR COMPANY

125. NOTE: Do not reuse the ECT sensor, install a new sensor.

     Remove and discard the ECT sensor.

     Courtesy of FORD MOTOR COMPANY

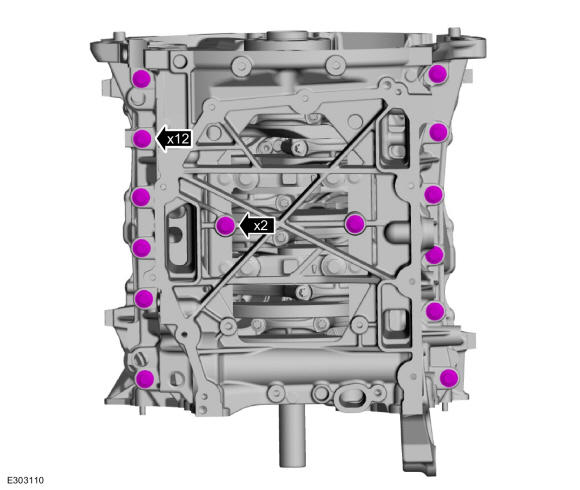

126. Remove the engine block skirt stiffener bolts.

     Courtesy of FORD MOTOR COMPANY

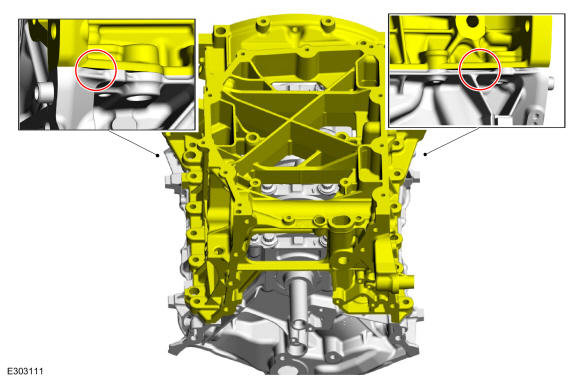

127. Using a suitable pry bar at the pry pad locations, release the engine block skirt stiffener-to-engine block seal.

     Courtesy of FORD MOTOR COMPANY

128. • Remove the engine block skirt stiffener.
     • Remove and discard the oil seal.

     Courtesy of FORD MOTOR COMPANY

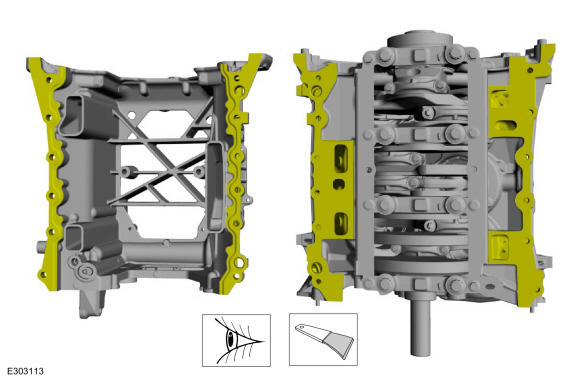

129. NOTE: Do not use metal scrapers, wire brushes, power abrasive discs or other abrasive means to clean the sealing surfaces. These tools cause scratches and gouges which make leak paths. Use a plastic scraping tool to remove all traces of old sealant.

     Clean and inspect the mating surfaces. Refer to: RTV Sealing Surface Cleaning and Preparation

     ENGINE SYSTEM - GENERAL INFORMATION . Use the General Equipment: Plastic Scraper

     Material

     : Motorcraft® Silicone Gasket Remover / ZC-30-A

     Material

     : Motorcraft® Metal Brake Parts Cleaner / PM-4-A, PM-4-B

     Material

     : Motorcraft® Metal Surface Prep Wipes / ZC-31-B

     Courtesy of FORD MOTOR COMPANY

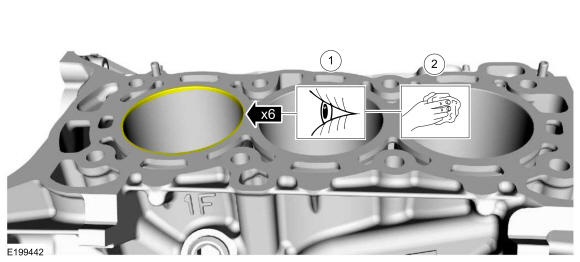

130. • Before removing the pistons, inspect the top of the cylinder bores.
     • If necessary, remove the ridge or carbon deposits from each cylinder using an abrasive pad.

     Courtesy of FORD MOTOR COMPANY

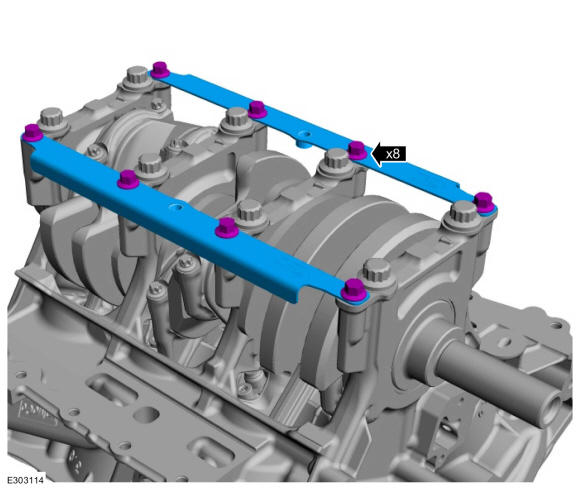

131. Remove the bolts and the main bearing cap support braces.

     Courtesy of FORD MOTOR COMPANY

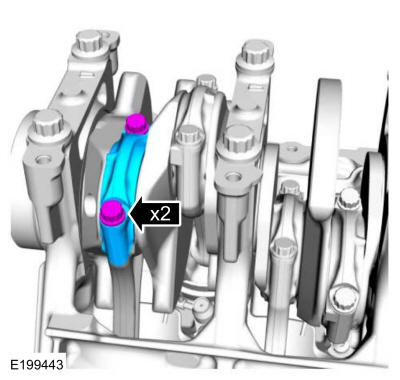

132. Remove the bolts and the connecting rod cap.

     Courtesy of FORD MOTOR COMPANY

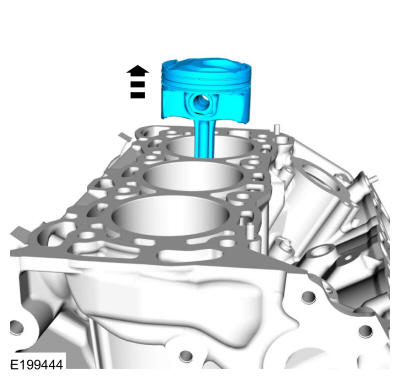

133. NOTE: Position the cylinder bank for the piston serviced in a vertical position. Do not scratch the cylinder walls or crankshaft journals with the connecting rod or engine damage may occur.
     • Remove the piston through the top of the cylinder block
     • Repeat the steps for each of the remaining pistons.

     Courtesy of FORD MOTOR COMPANY

134. • Remove the connecting rod bearings.
     • Disassemble and inspect the pistons. Refer to: Piston . Refer to: Piston Inspection .

     Courtesy of FORD MOTOR COMPANY

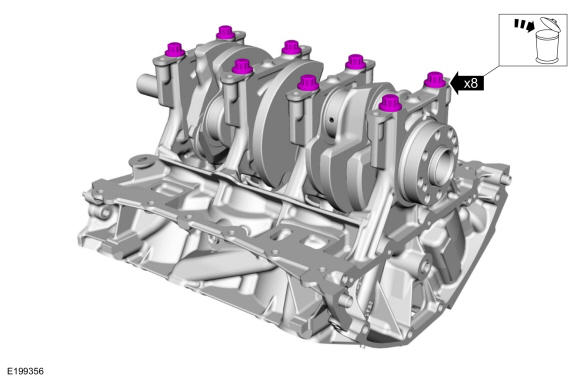

135. Remove and discard the main bearing cap bolts.

     Courtesy of FORD MOTOR COMPANY

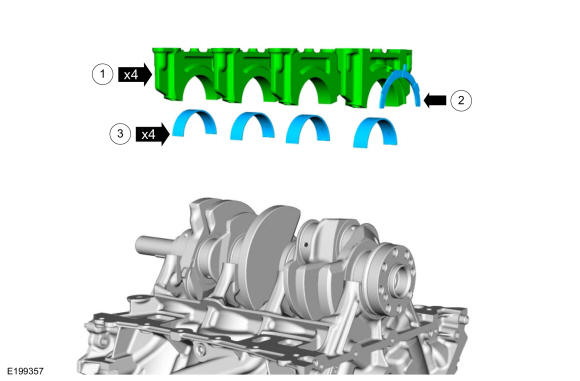

136. 1. Remove the main bearing caps.
     2. Remove the lower thrust washer.
     3. Remove the lower main bearings.

     Courtesy of FORD MOTOR COMPANY

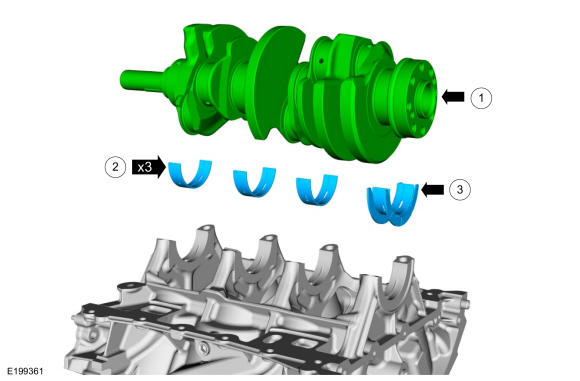

137. 1. Remove the crankshaft.
     2. Remove the lower main bearings.
     3. Remove the lower thrust bearing.

     Courtesy of FORD MOTOR COMPANY

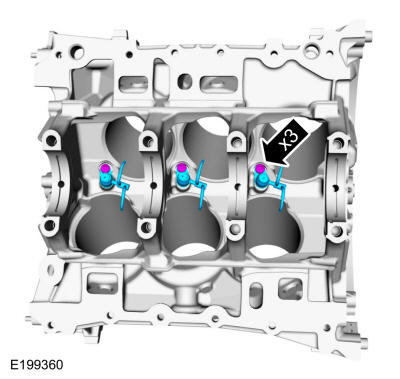

138. Remove the bolts and the piston cooling jets from the cylinder block.

Courtesy of FORD MOTOR COMPANY
