Second Row Blower Motor Control Module: Removal
NOTE:
Removal steps in this procedure may contain installation details.
- Remove the floor console. Refer to: Floor Console .
- Remove the bolts the front duct section.
Torque: 25 lb.in (2.77 Nm)

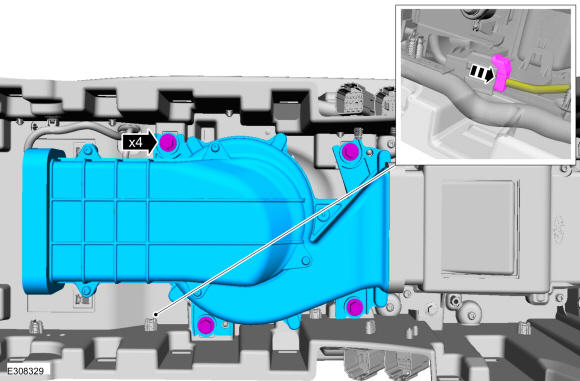

- Remove the bolts and the second row blower motor control module.
- Disconnect the electrical connector.
Torque: 71 lb.in (8.0 Nm)
- Disconnect the electrical connector.
