OEM Ground Distribution: Grounds

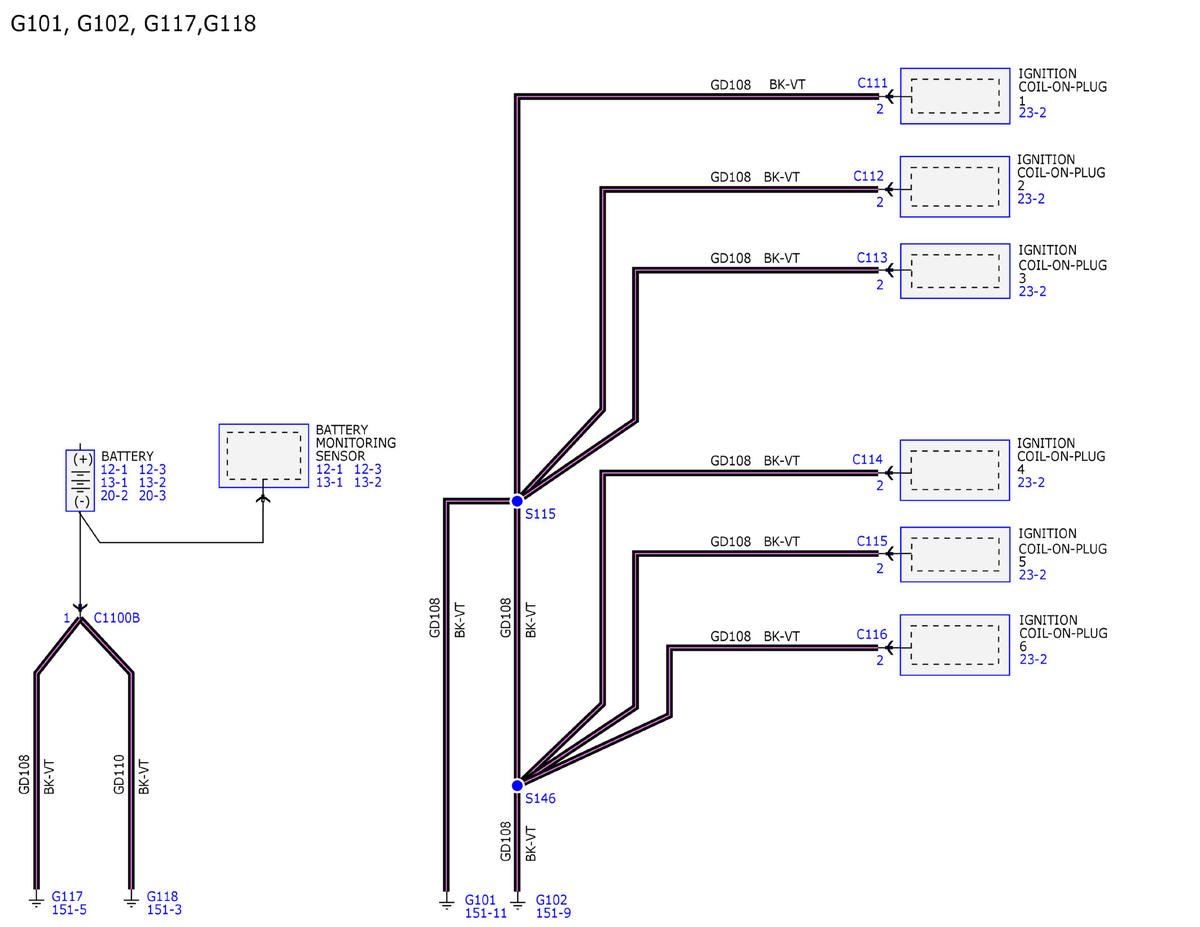

GFDWR218467Courtesy of FORD MOTOR COMPANY

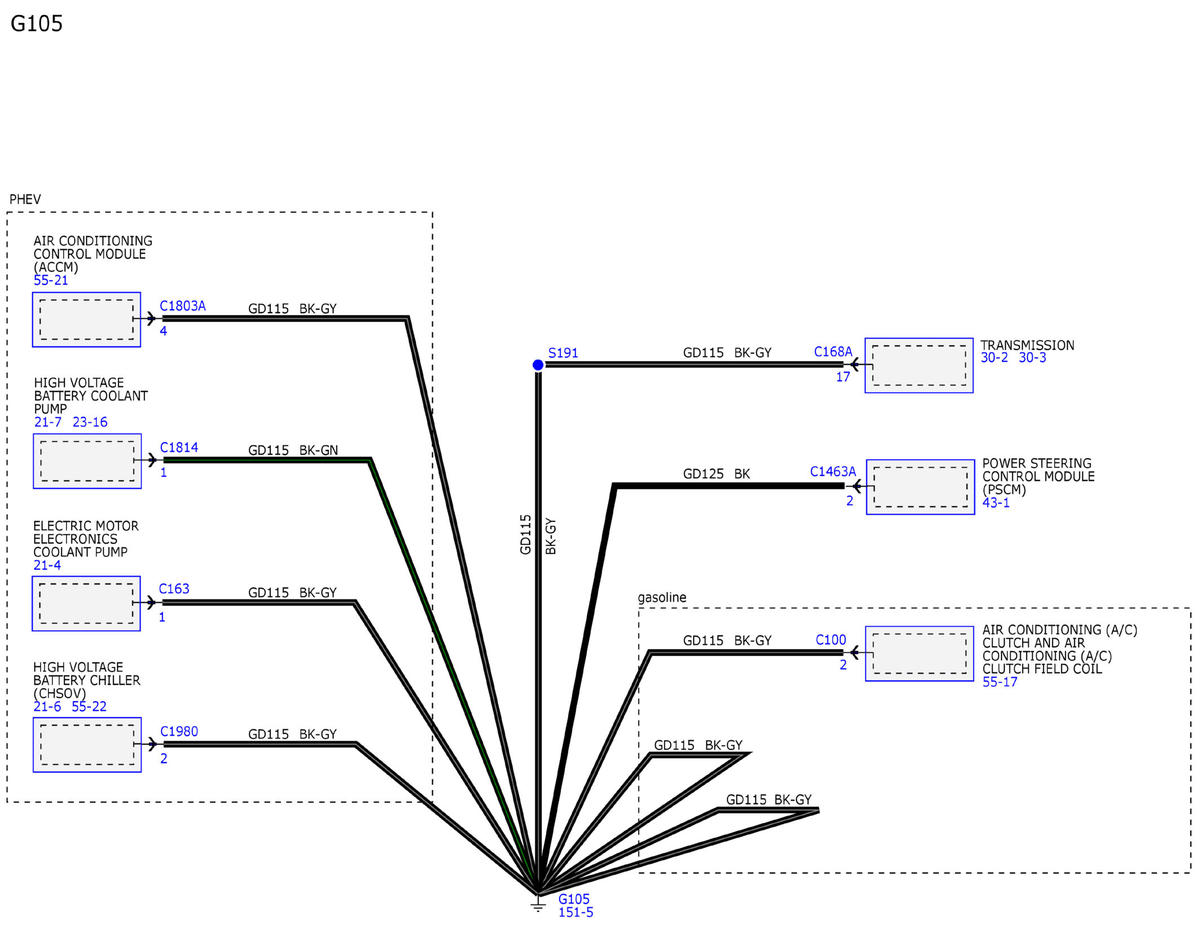

GFDWR218478Courtesy of FORD MOTOR COMPANY

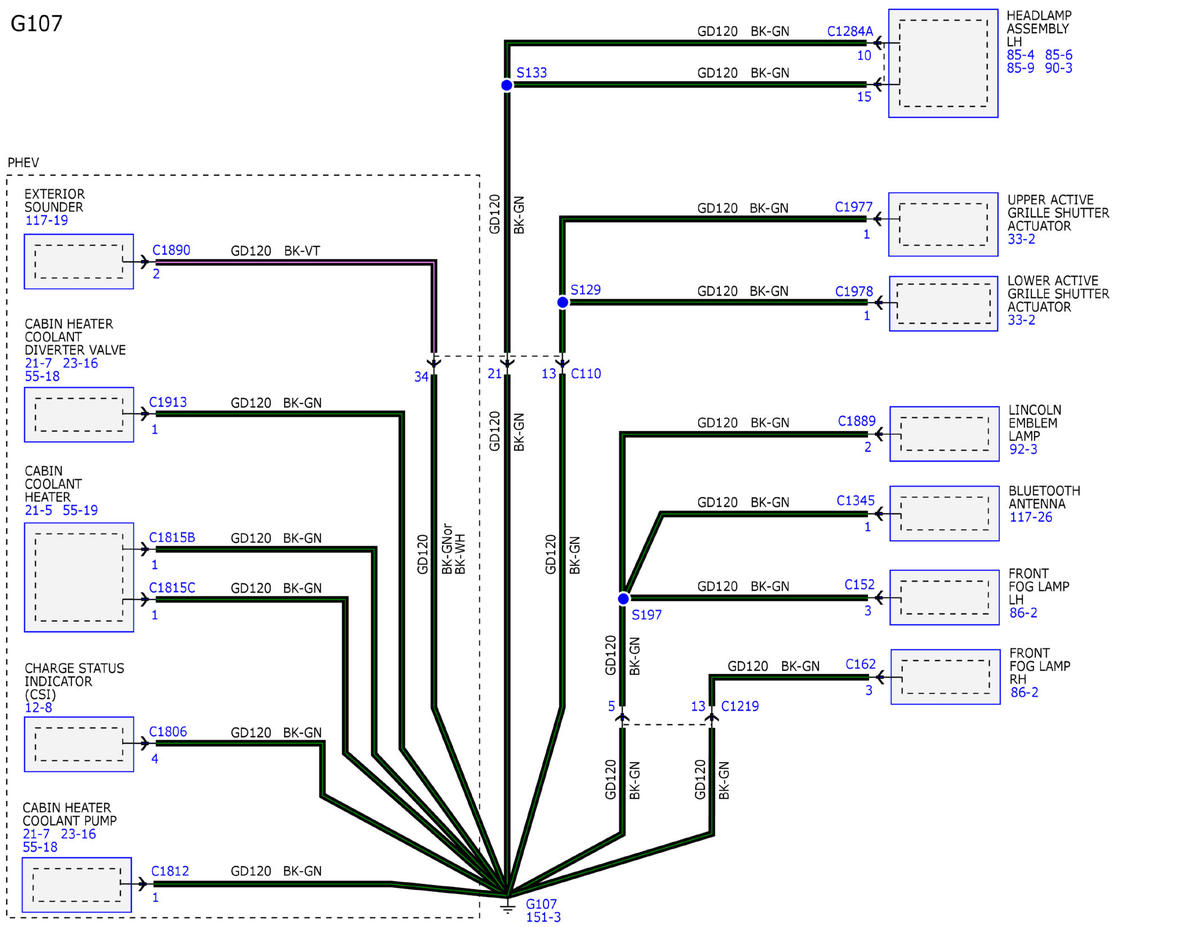

GFDWR218489Courtesy of FORD MOTOR COMPANY

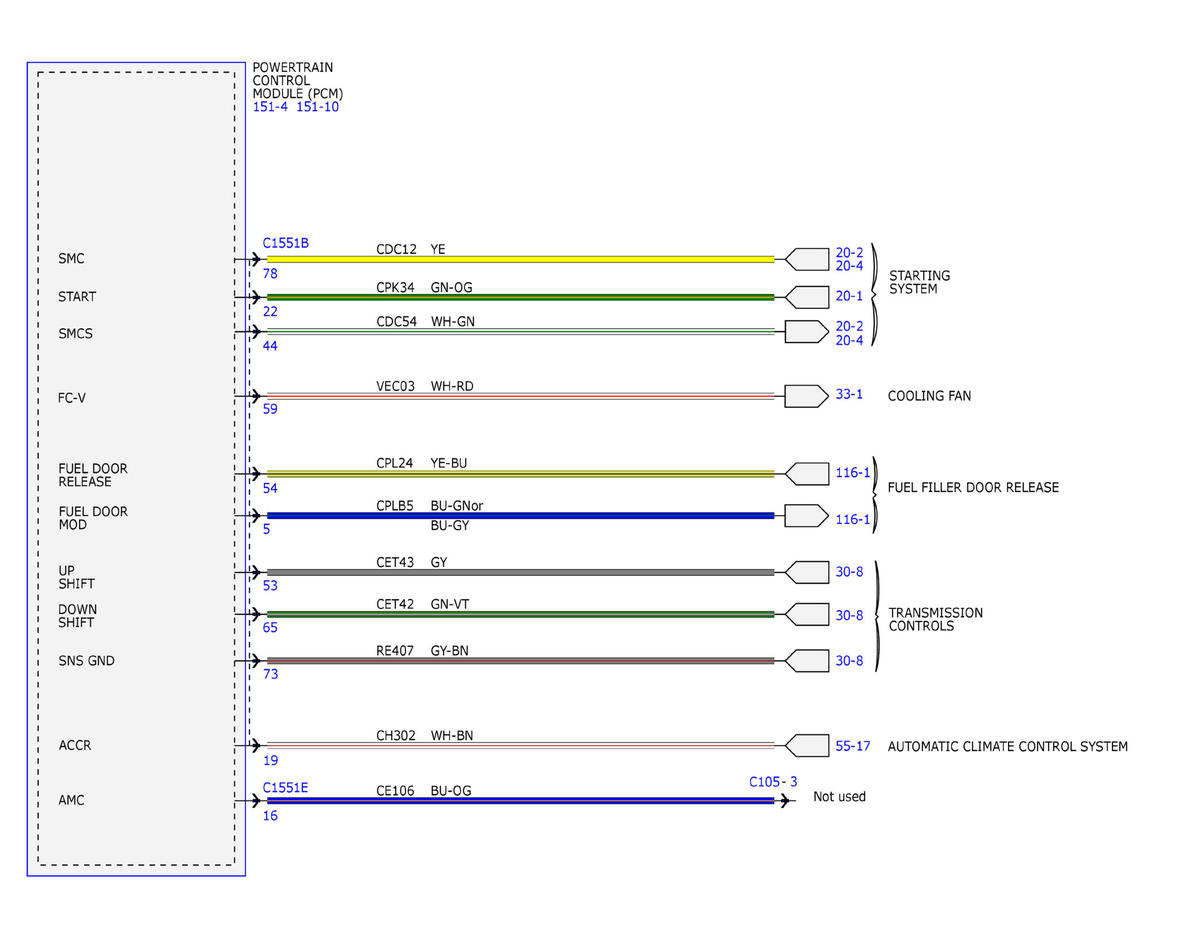

GFDWR218494Courtesy of FORD MOTOR COMPANY

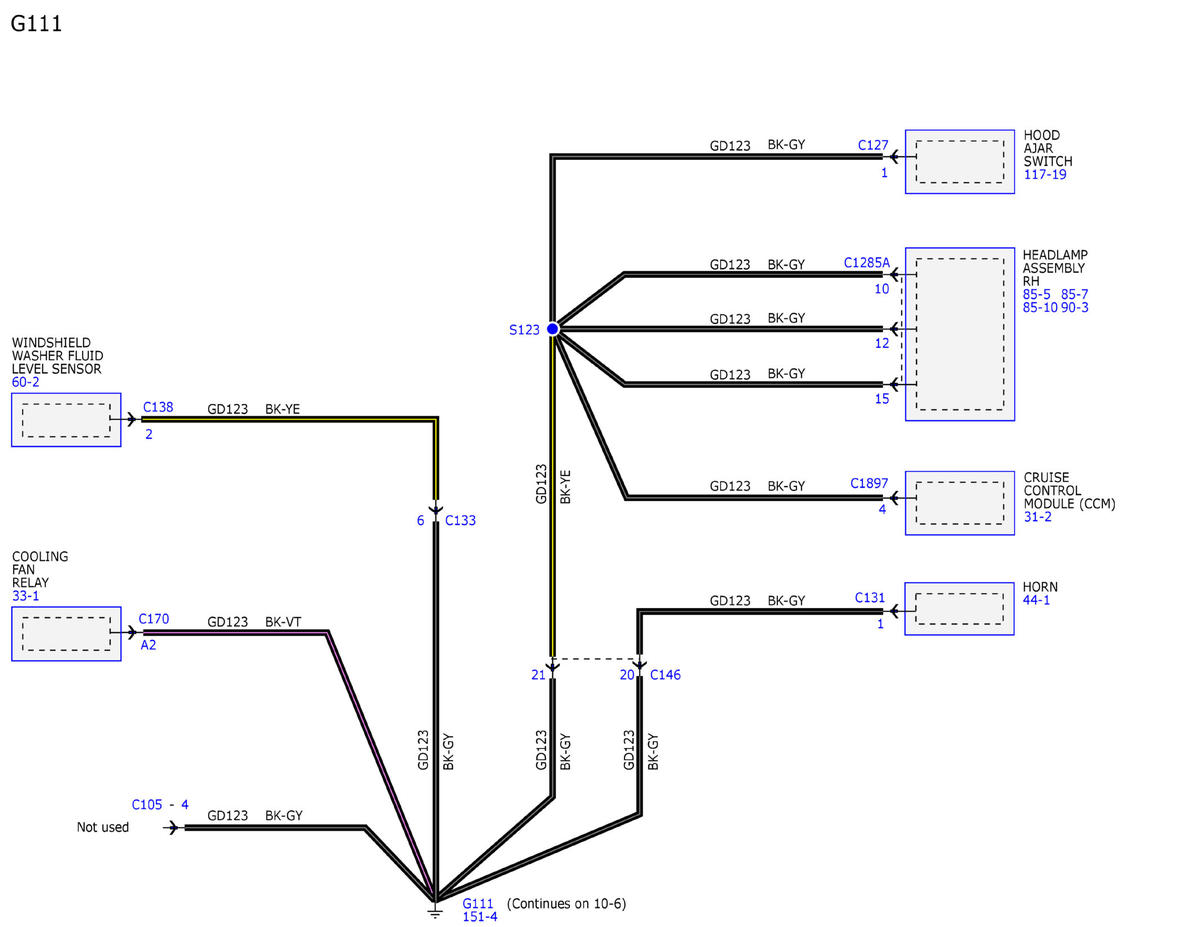

GFDWR218495Courtesy of FORD MOTOR COMPANY

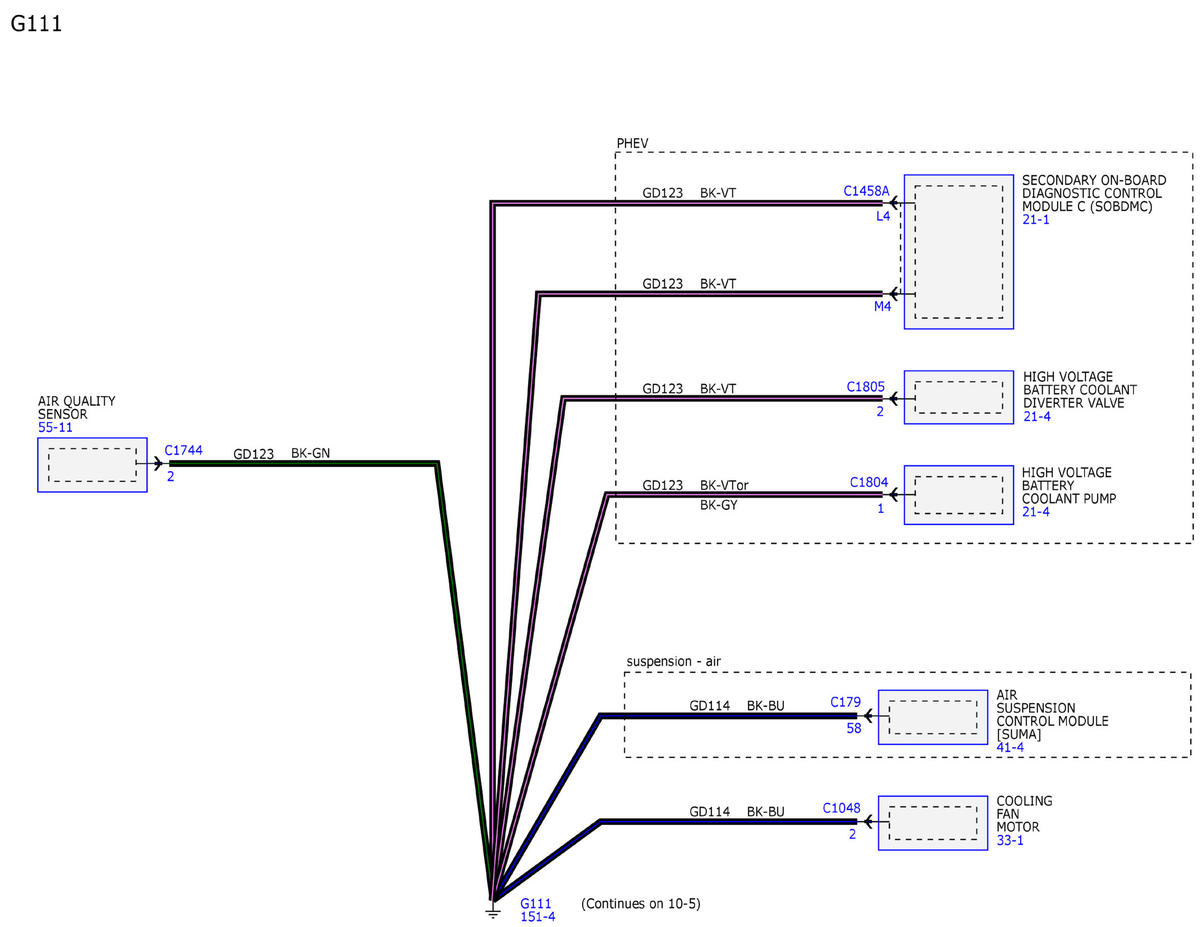

GFDWR218496Courtesy of FORD MOTOR COMPANY

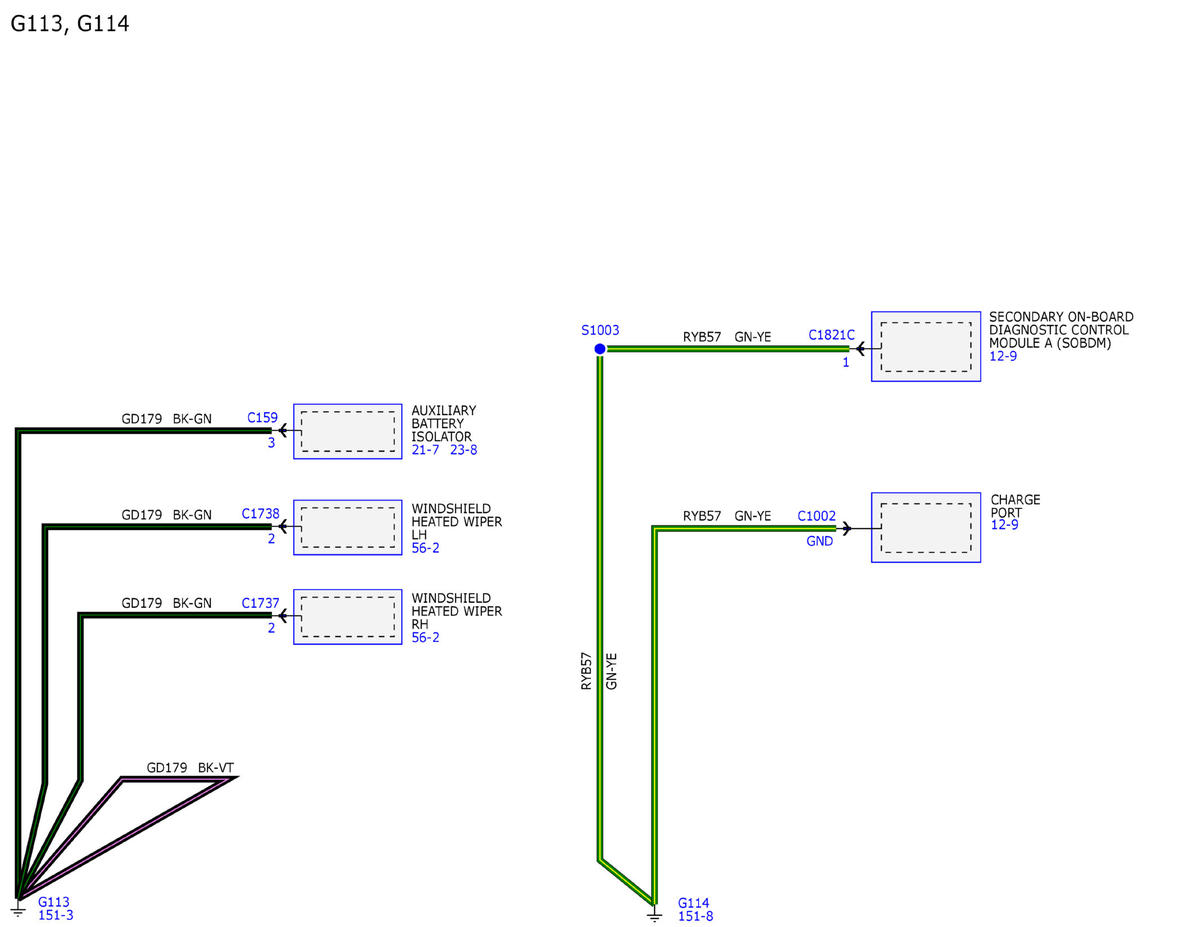

GFDWR218497Courtesy of FORD MOTOR COMPANY

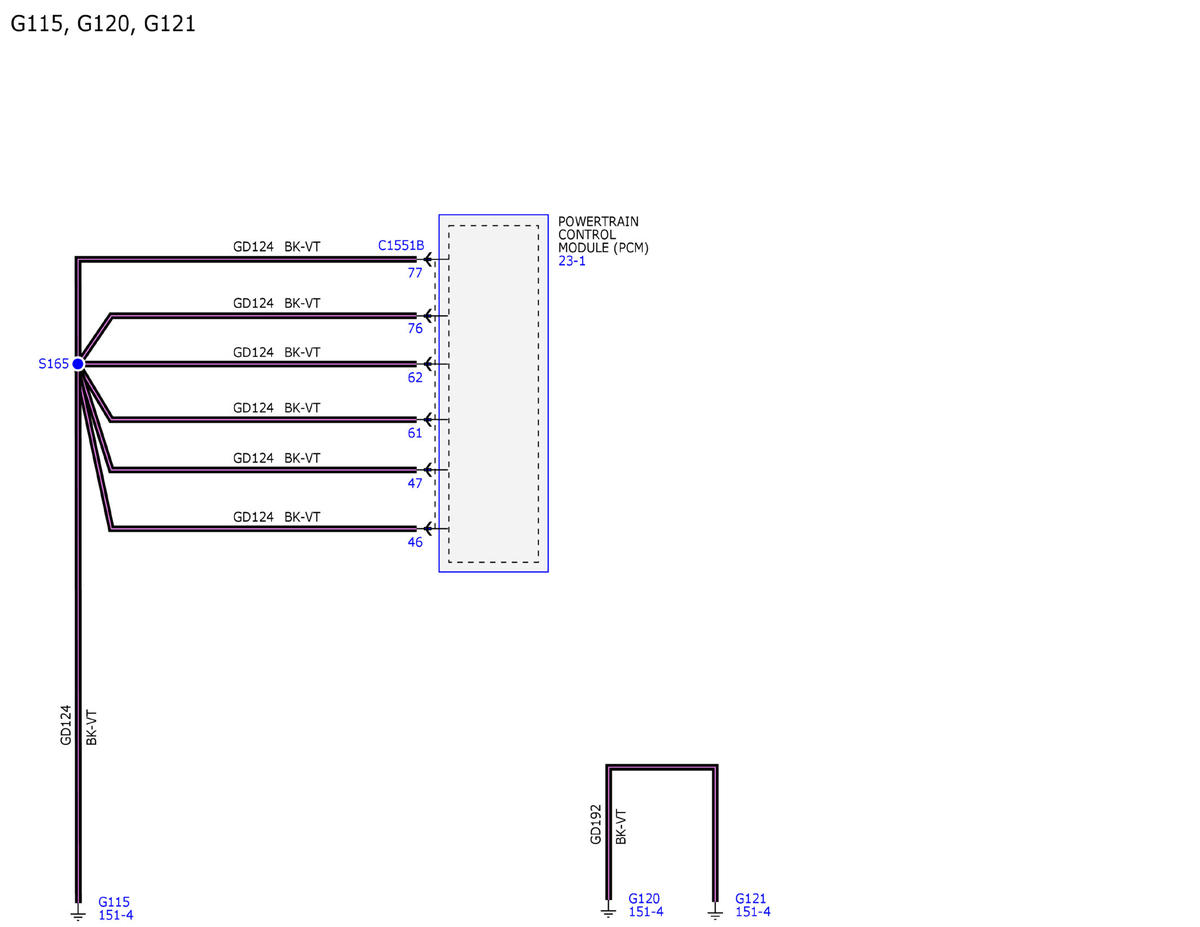

GFDWR218498Courtesy of FORD MOTOR COMPANY

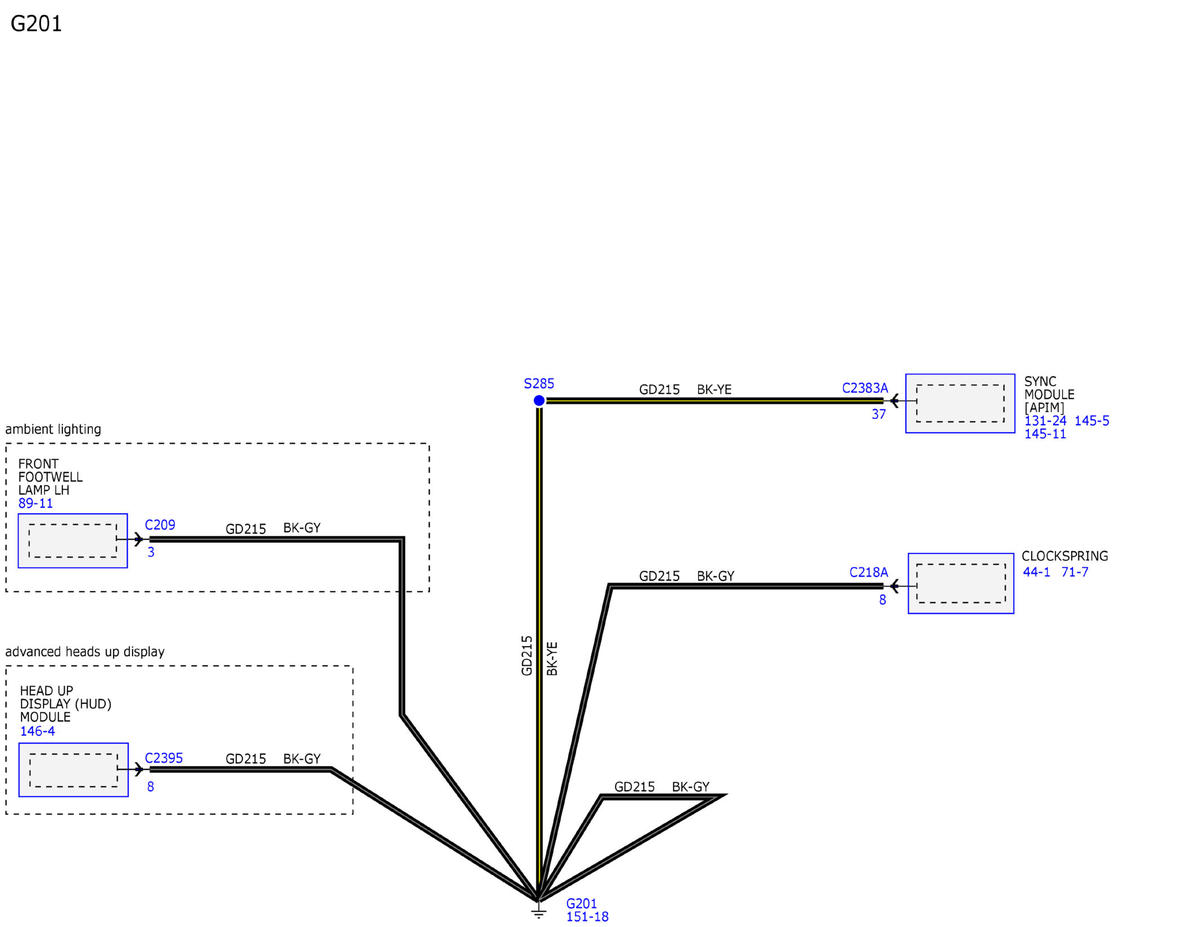

GFDWR218499Courtesy of FORD MOTOR COMPANY

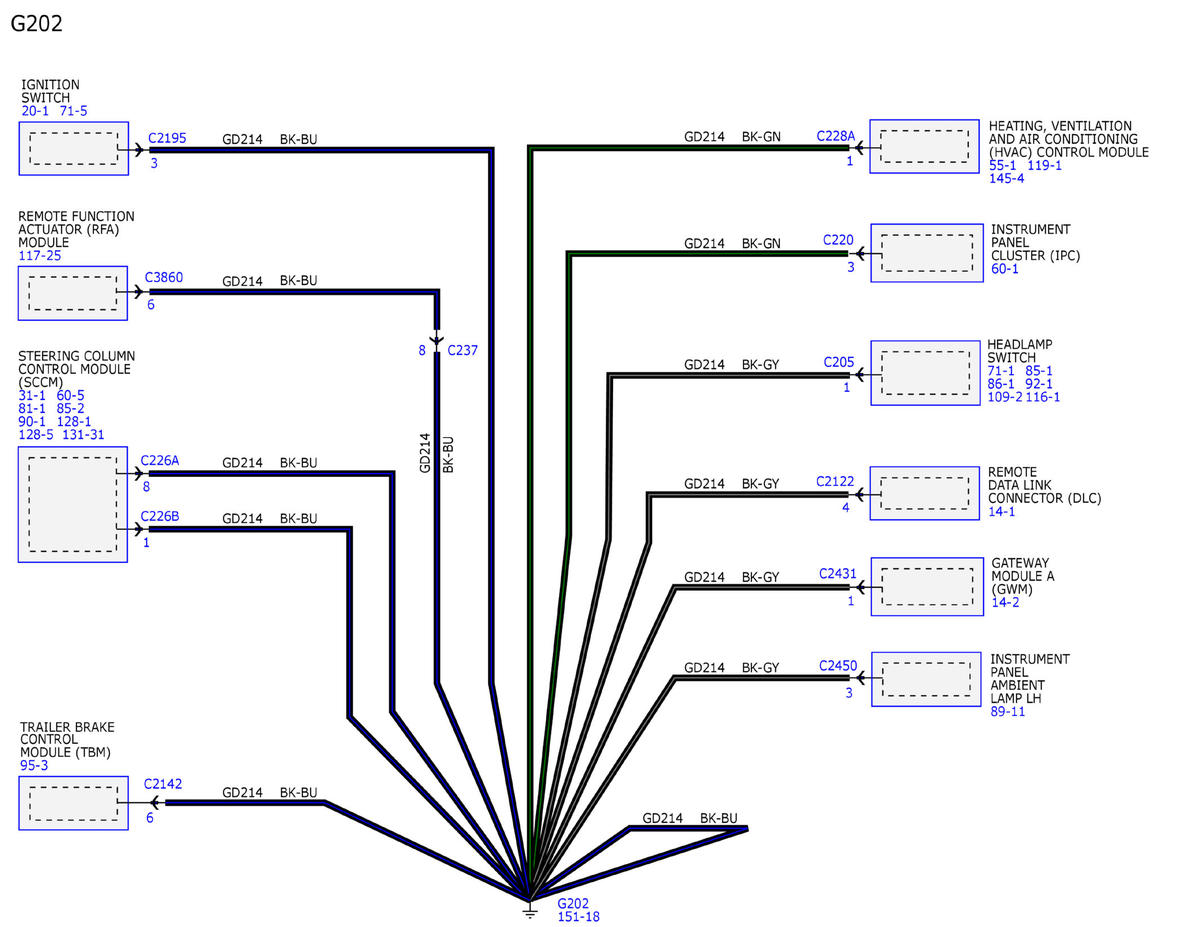

GFDWR218468Courtesy of FORD MOTOR COMPANY

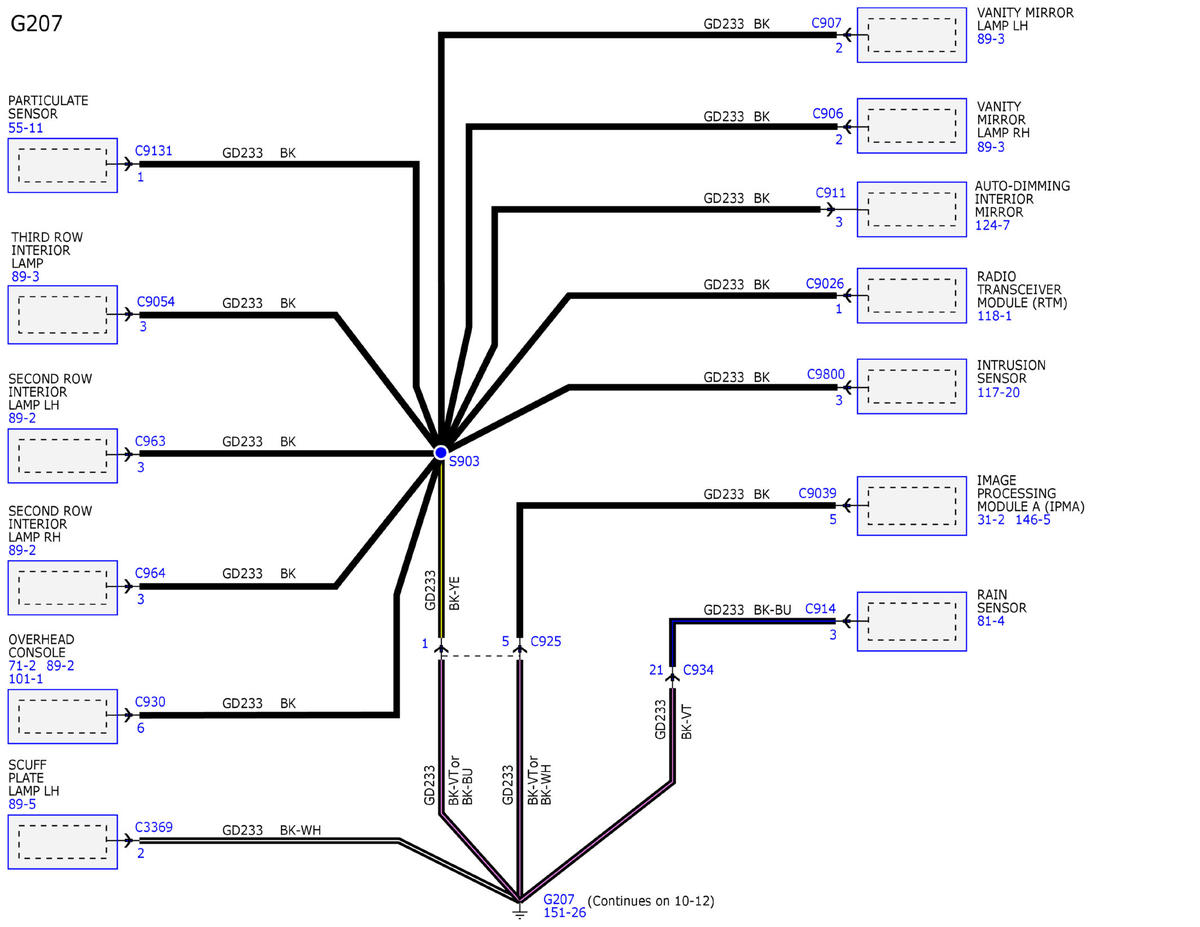

GFDWR218469Courtesy of FORD MOTOR COMPANY

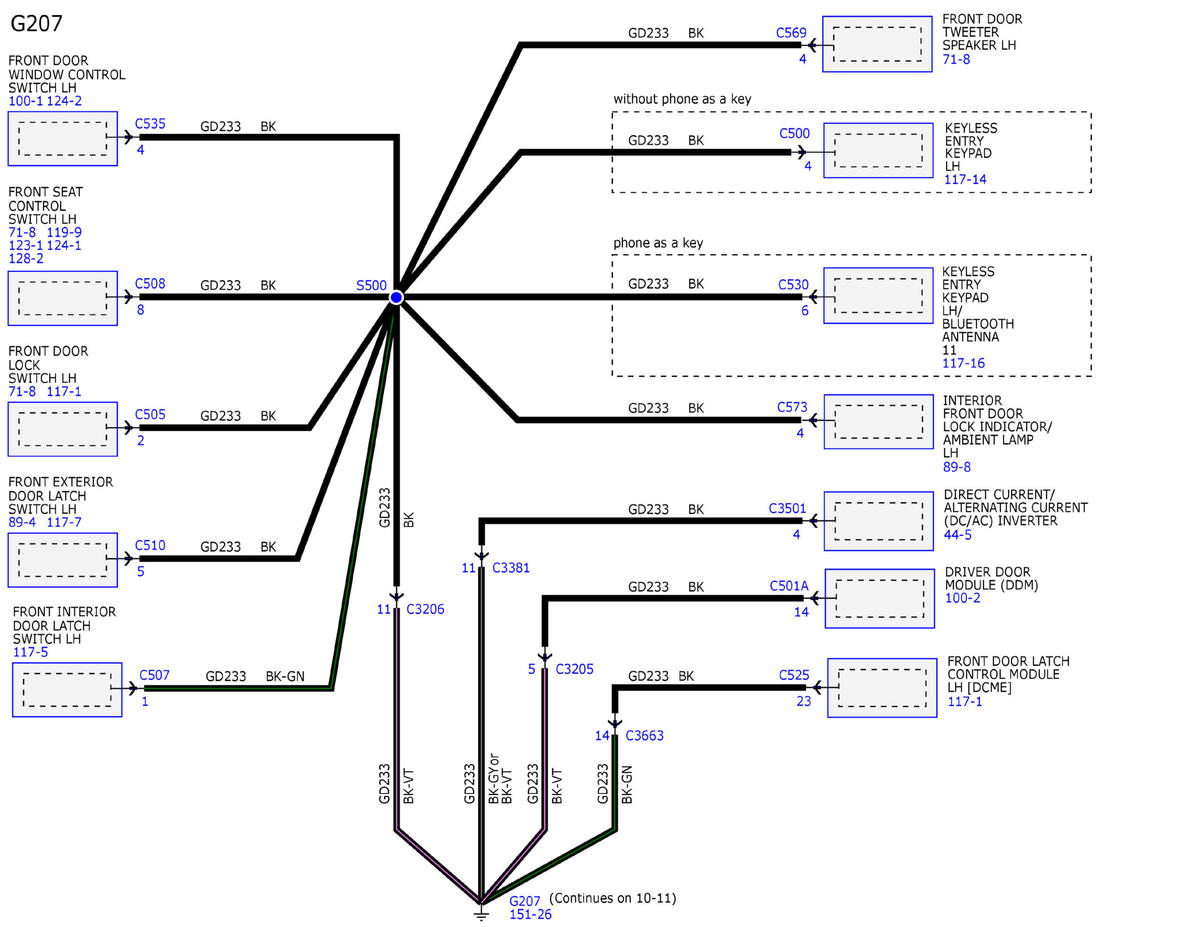

GFDWR218470Courtesy of FORD MOTOR COMPANY

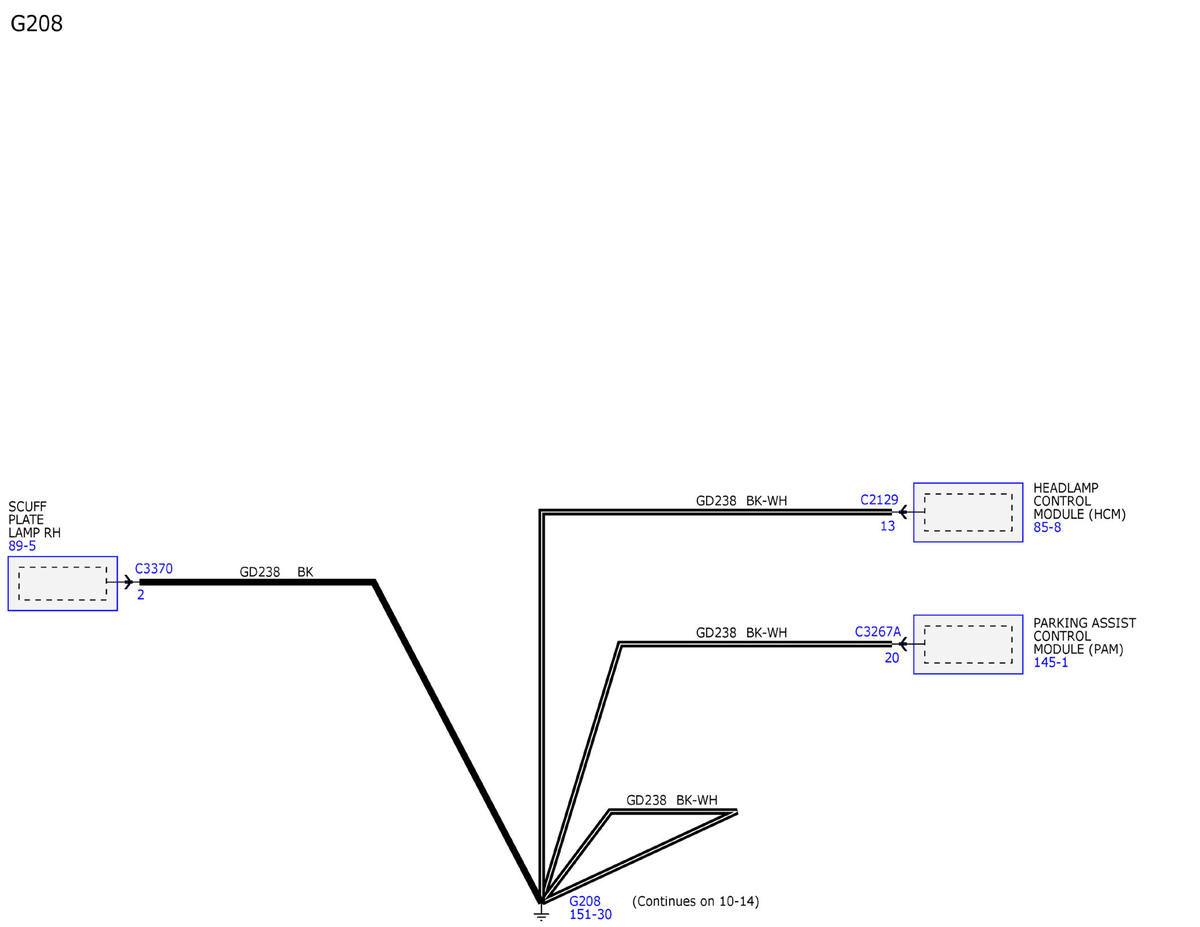

GFDWR218471Courtesy of FORD MOTOR COMPANY

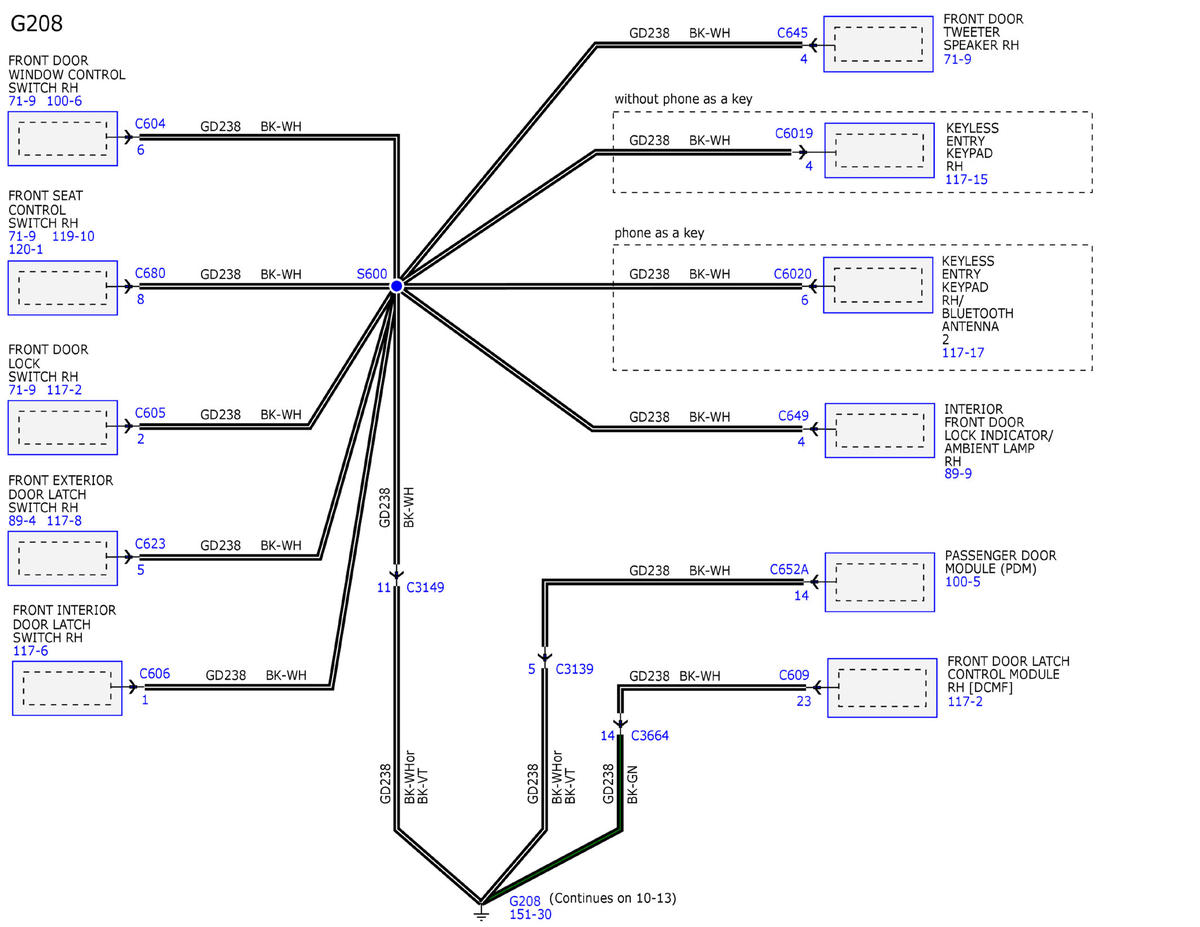

GFDWR218472Courtesy of FORD MOTOR COMPANY

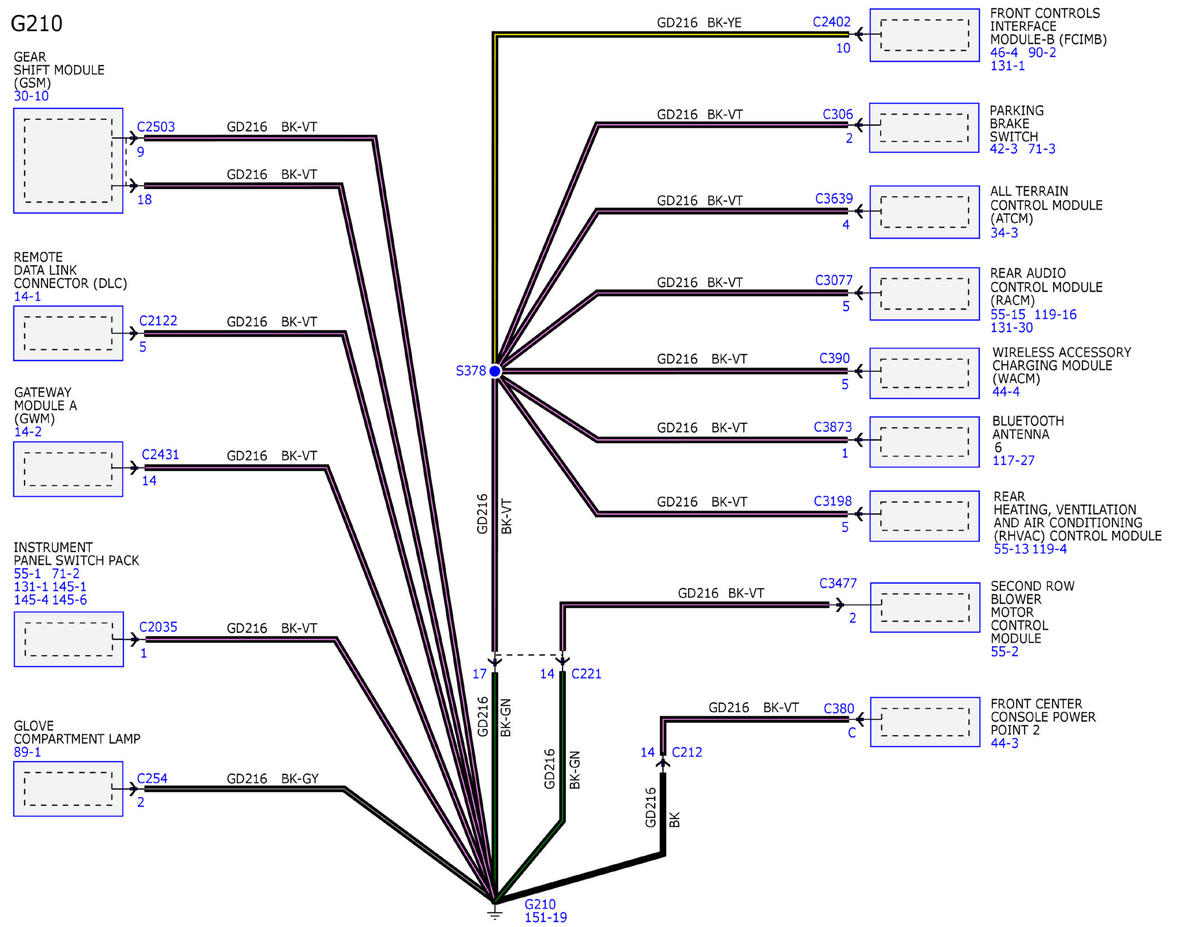

GFDWR218473Courtesy of FORD MOTOR COMPANY

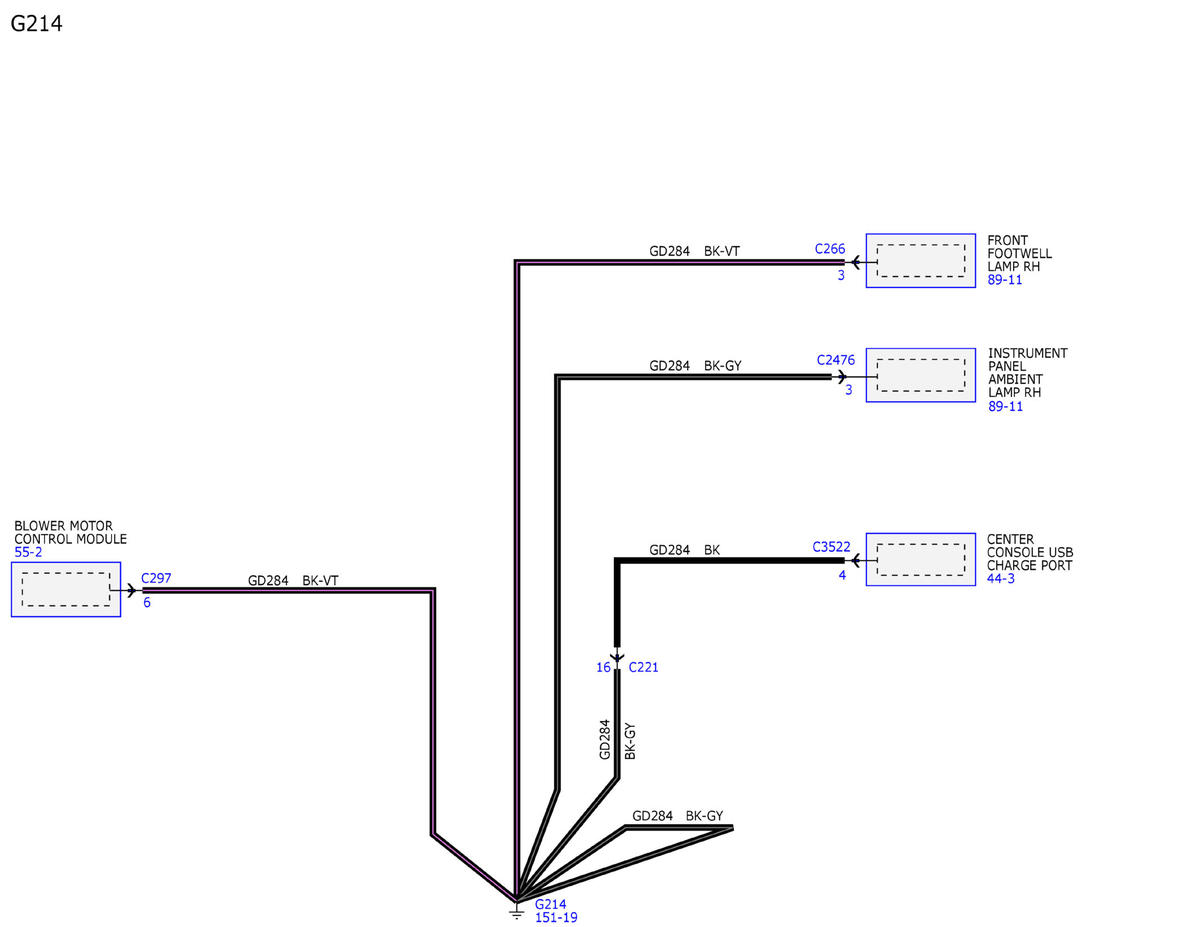

GFDWR218474Courtesy of FORD MOTOR COMPANY

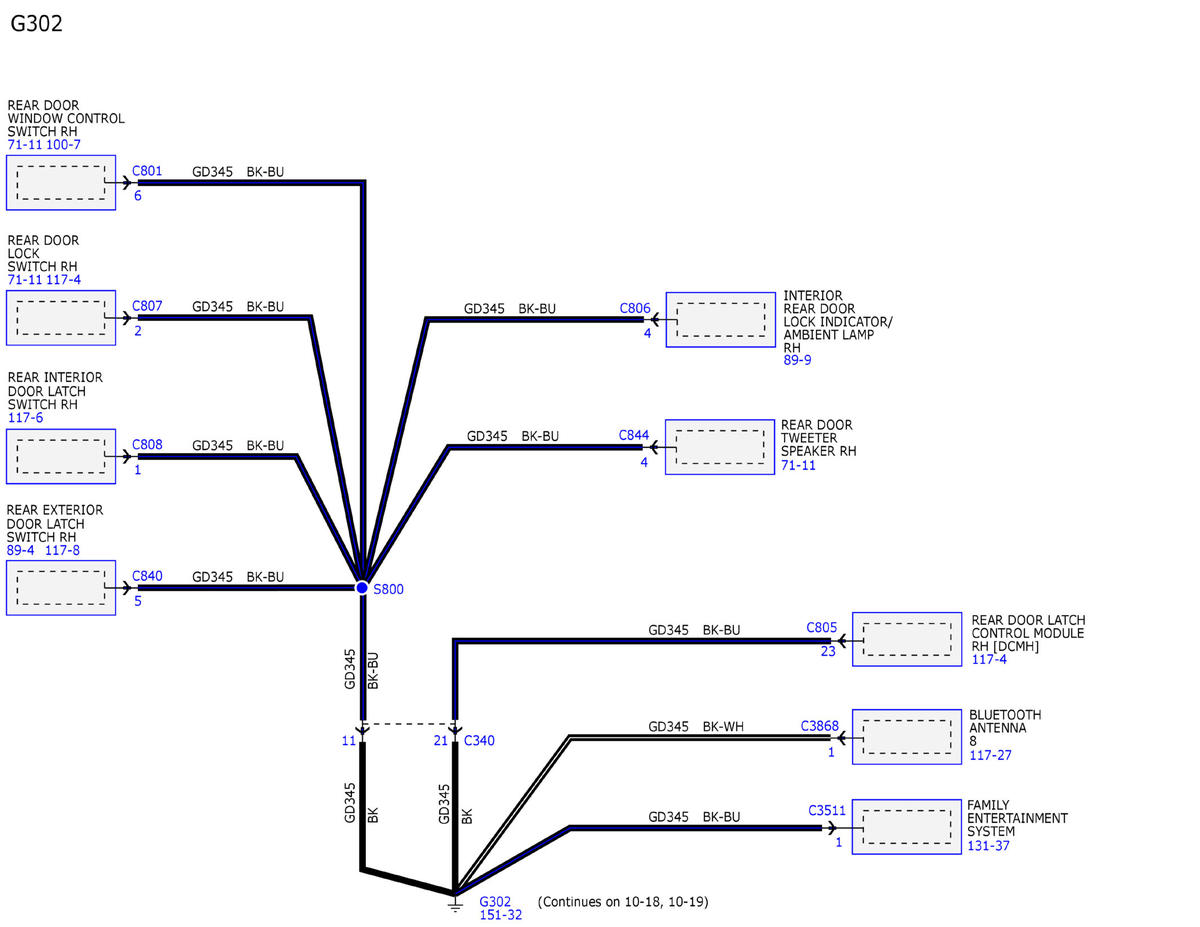

GFDWR218475Courtesy of FORD MOTOR COMPANY

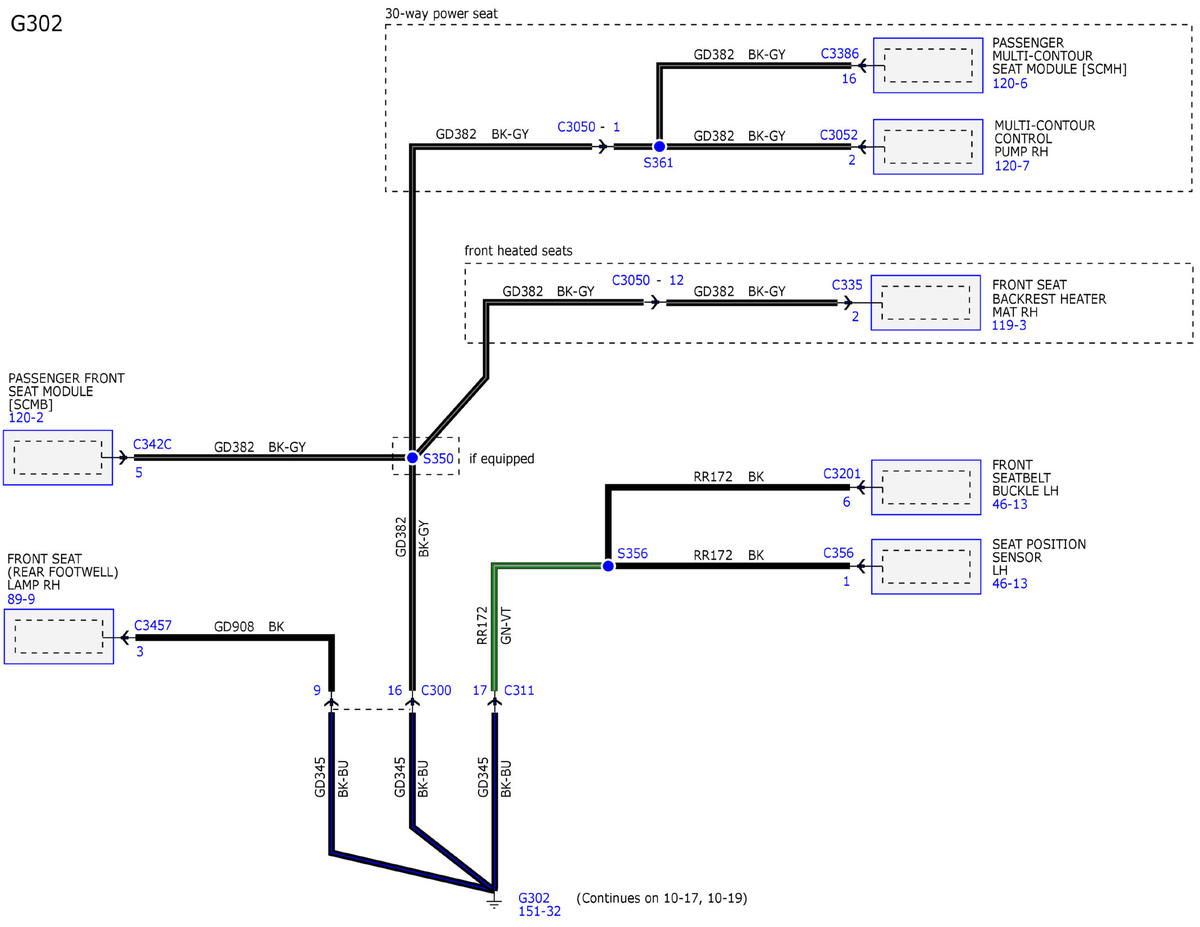

GFDWR218476Courtesy of FORD MOTOR COMPANY

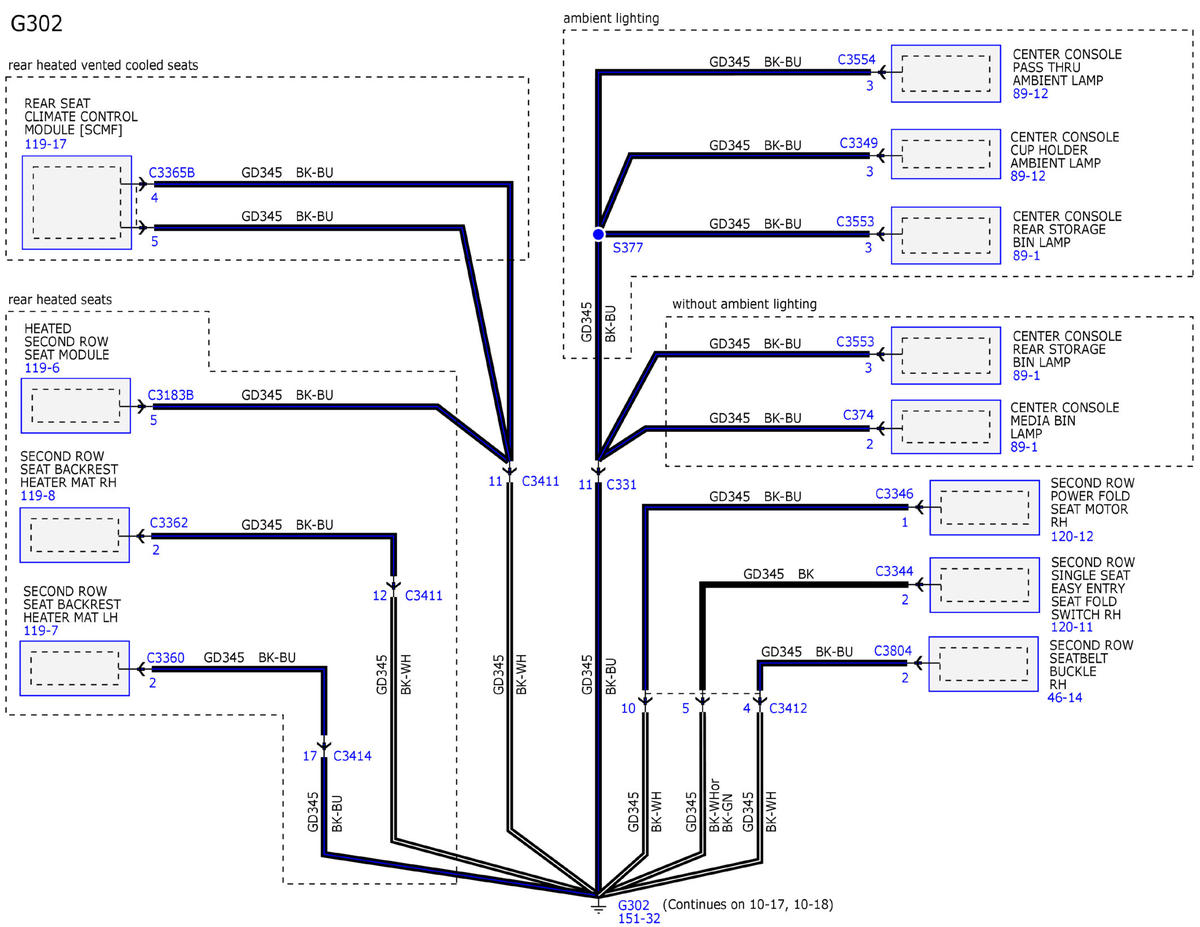

GFDWR218477Courtesy of FORD MOTOR COMPANY

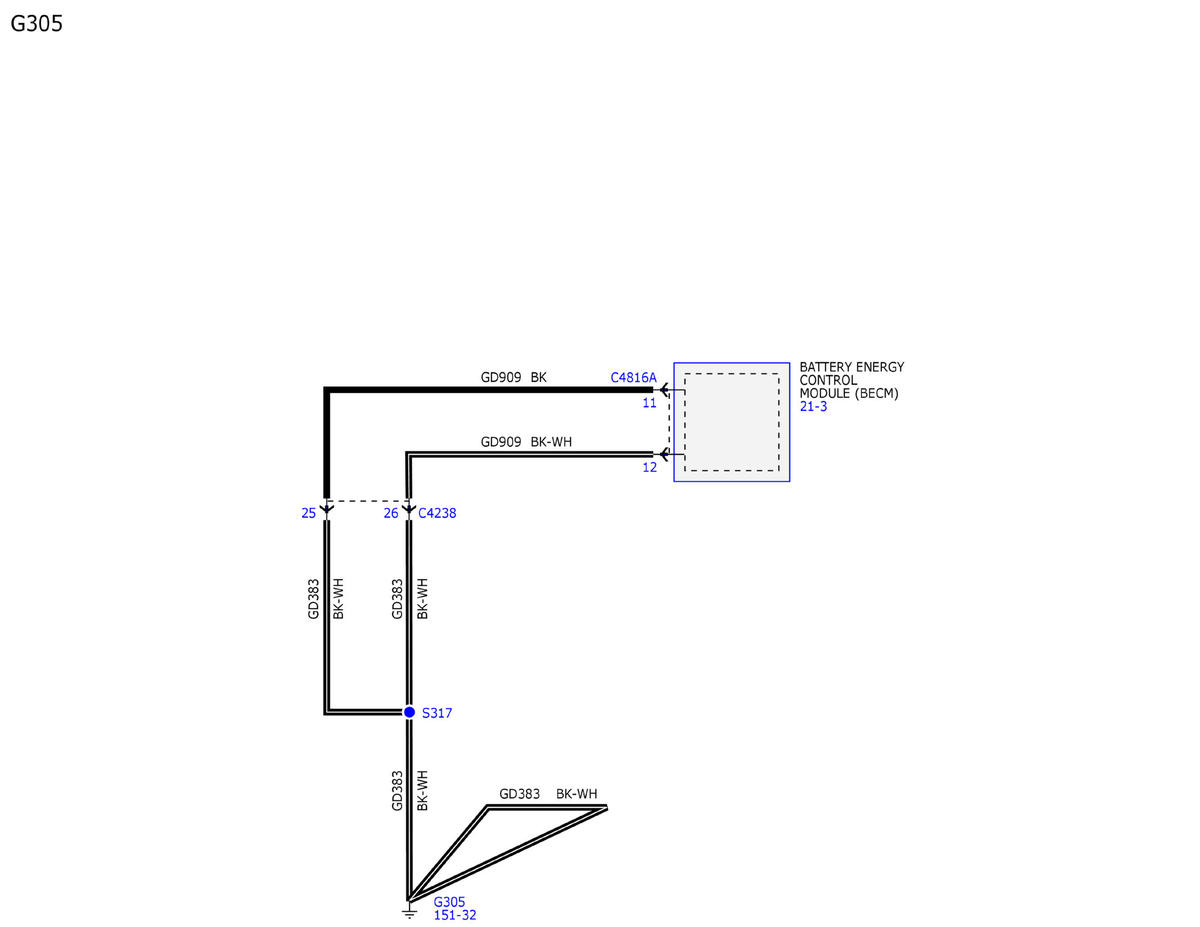

GFDWR218479Courtesy of FORD MOTOR COMPANY

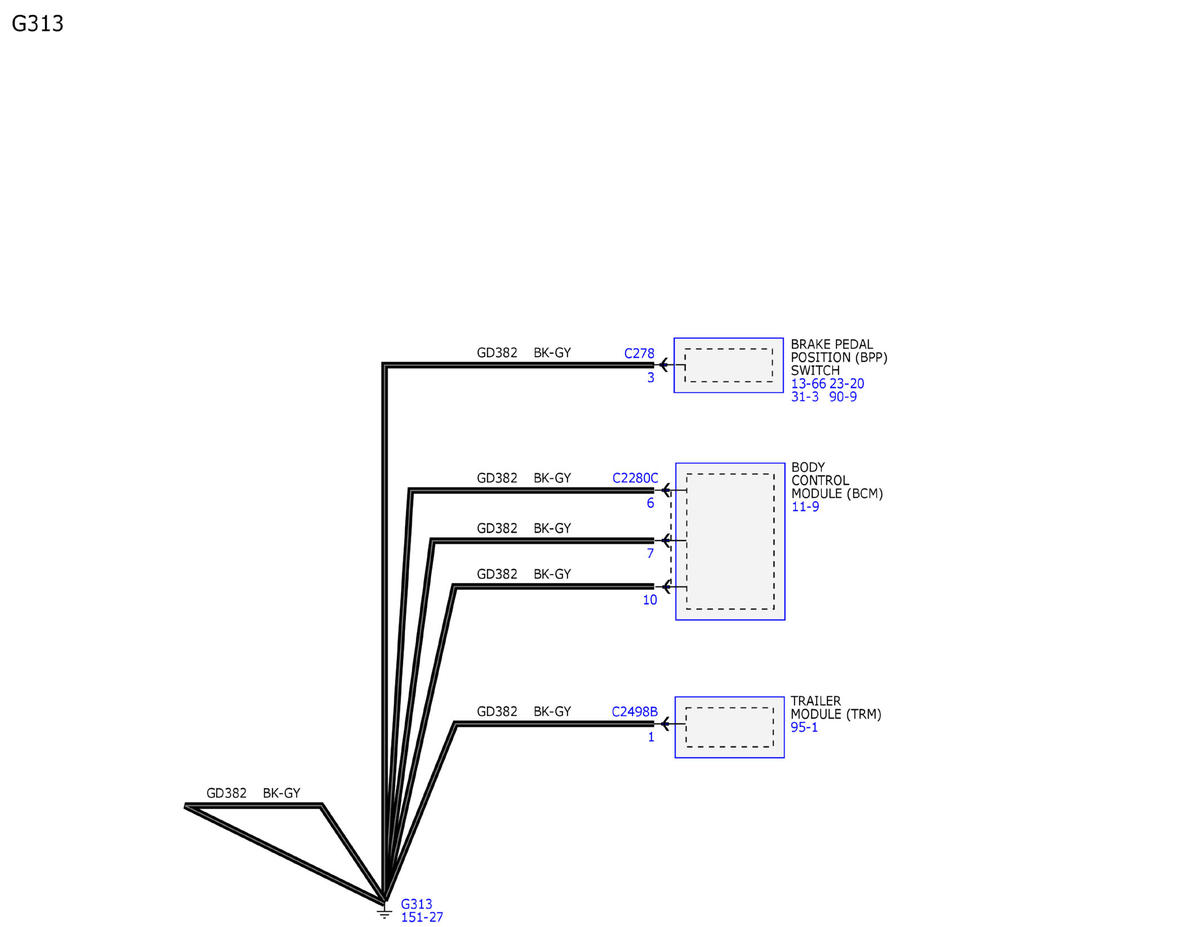

GFDWR218480Courtesy of FORD MOTOR COMPANY

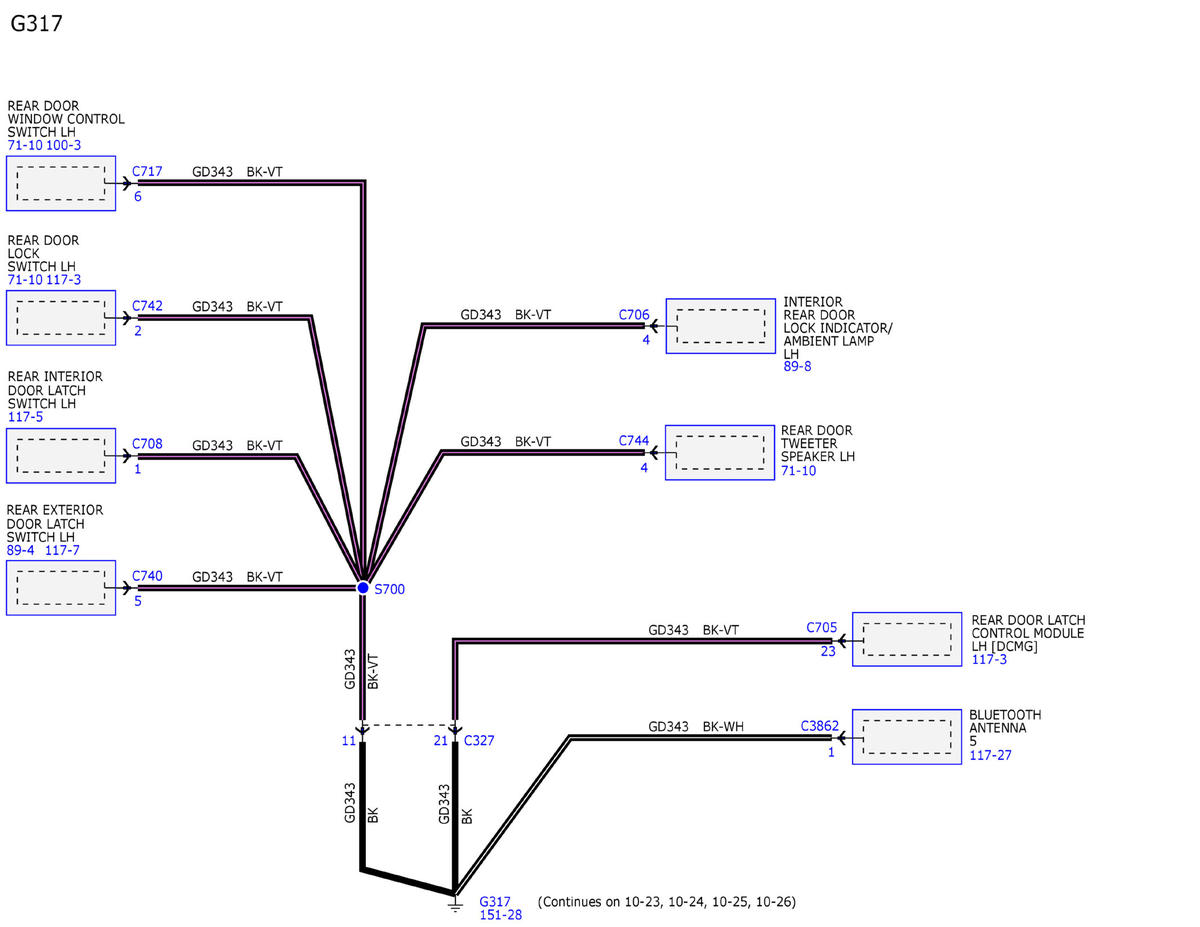

GFDWR218481Courtesy of FORD MOTOR COMPANY

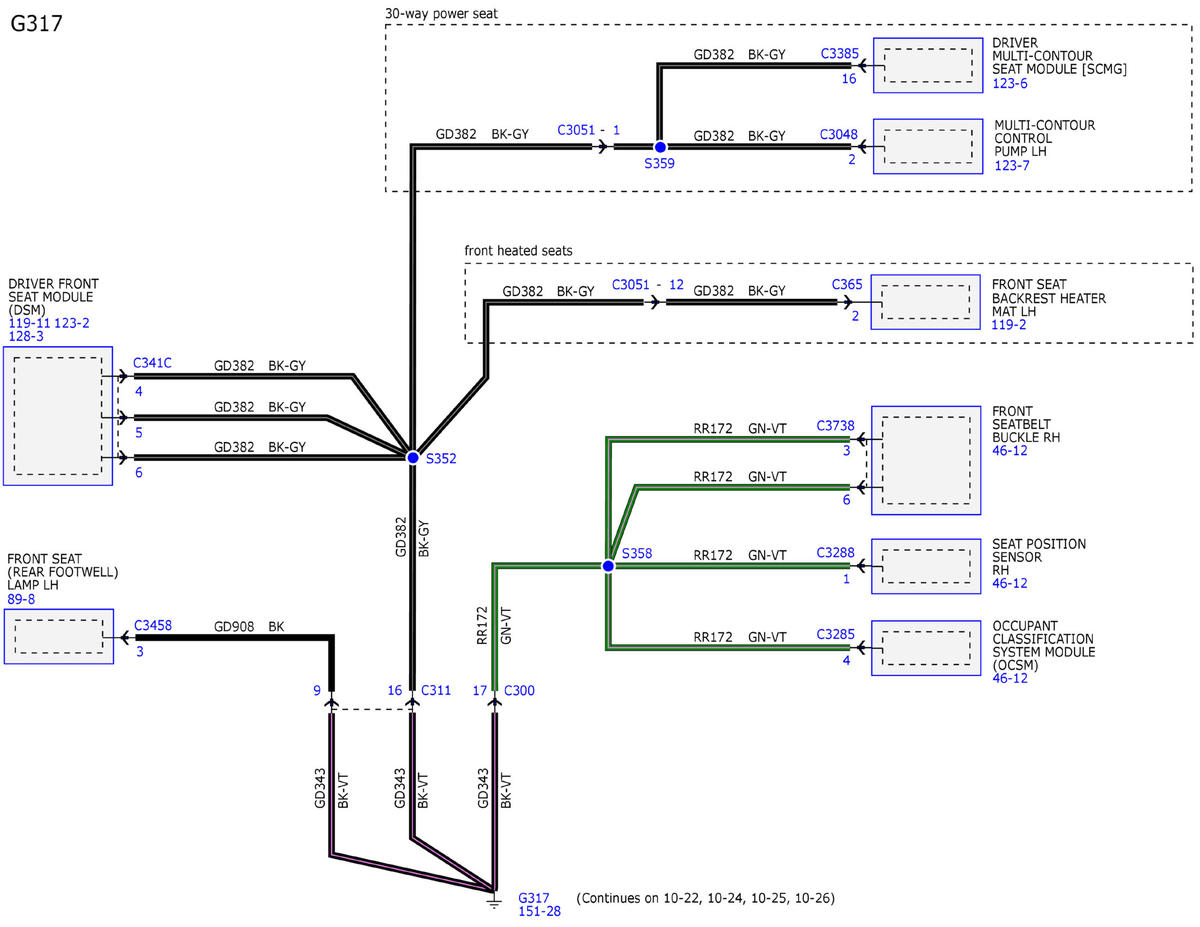

GFDWR218482Courtesy of FORD MOTOR COMPANY

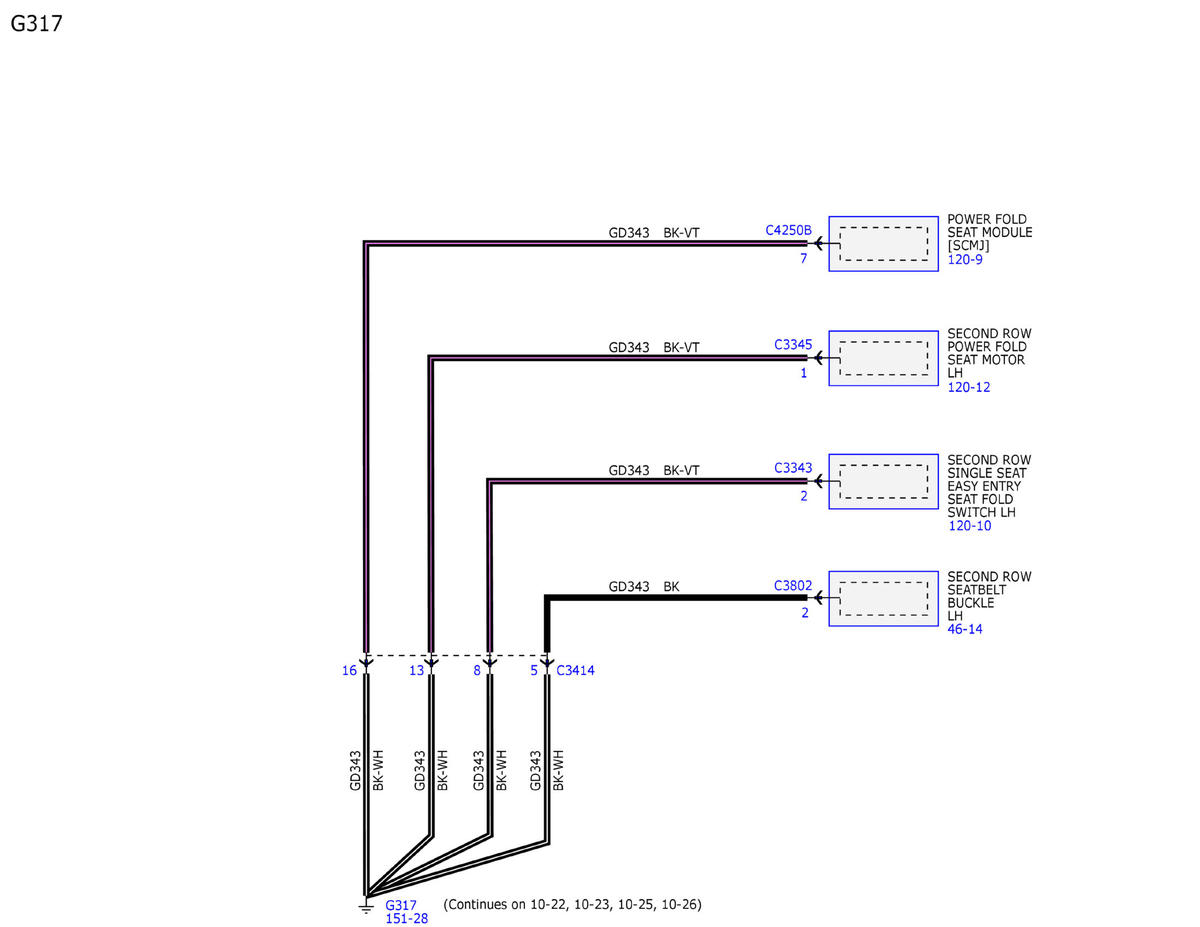

GFDWR218483Courtesy of FORD MOTOR COMPANY

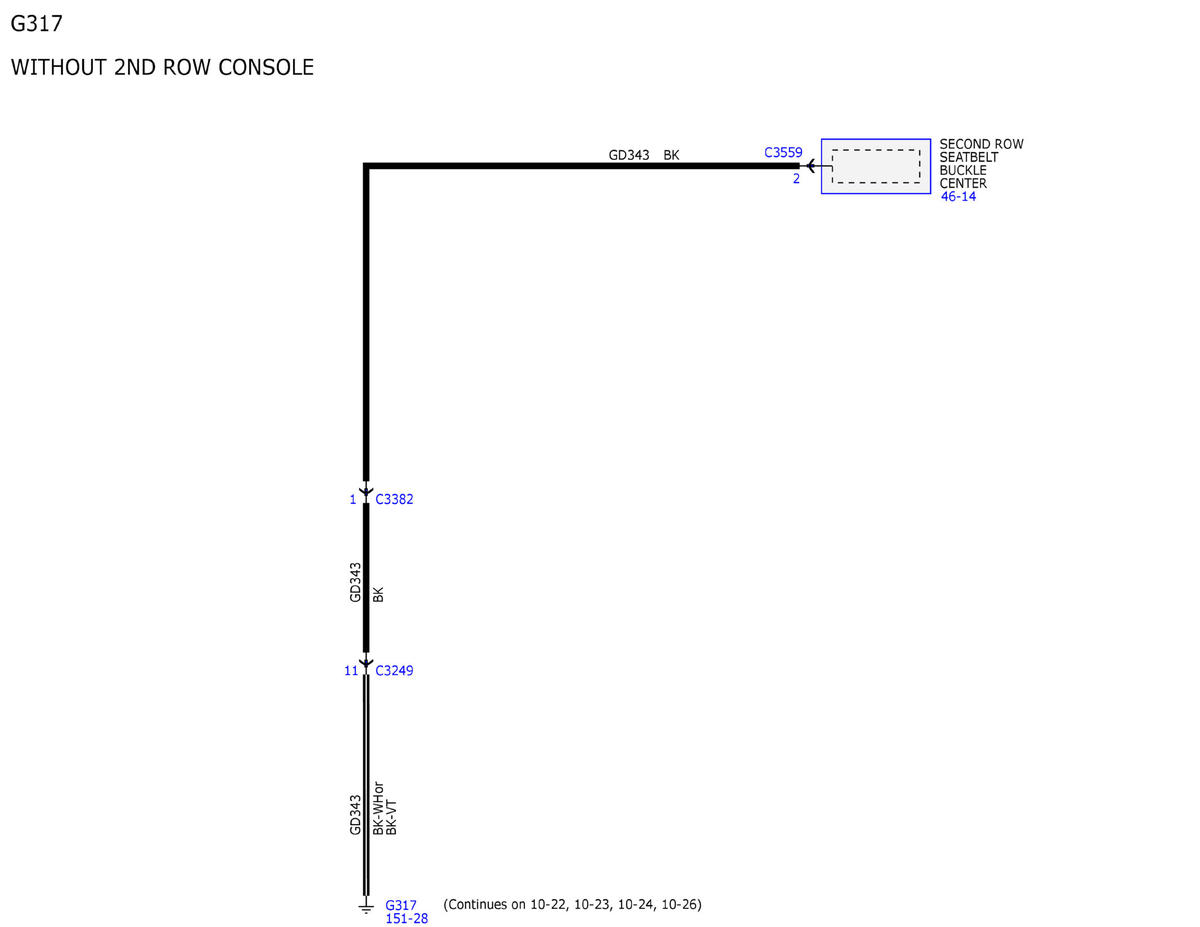

GFDWR218484Courtesy of FORD MOTOR COMPANY

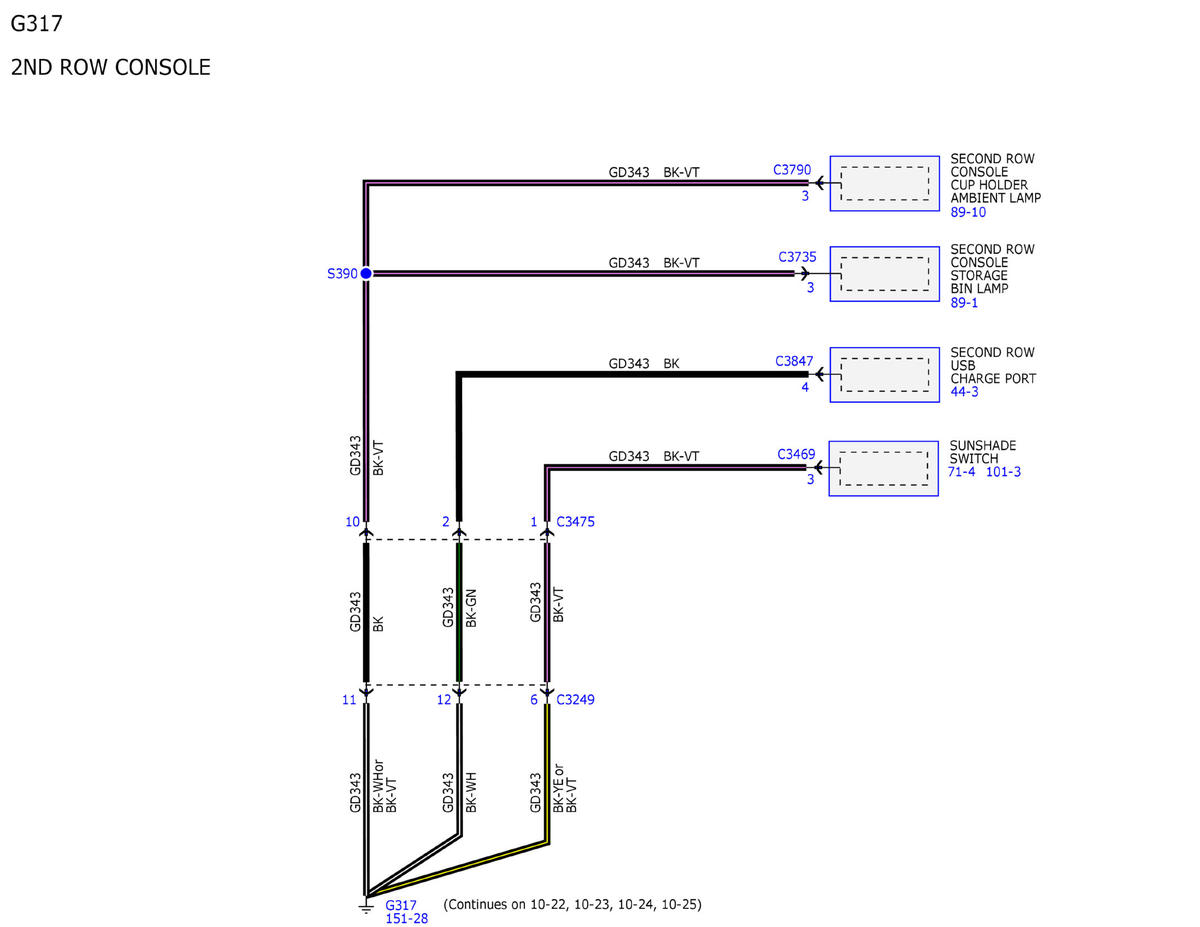

GFDWR218485Courtesy of FORD MOTOR COMPANY

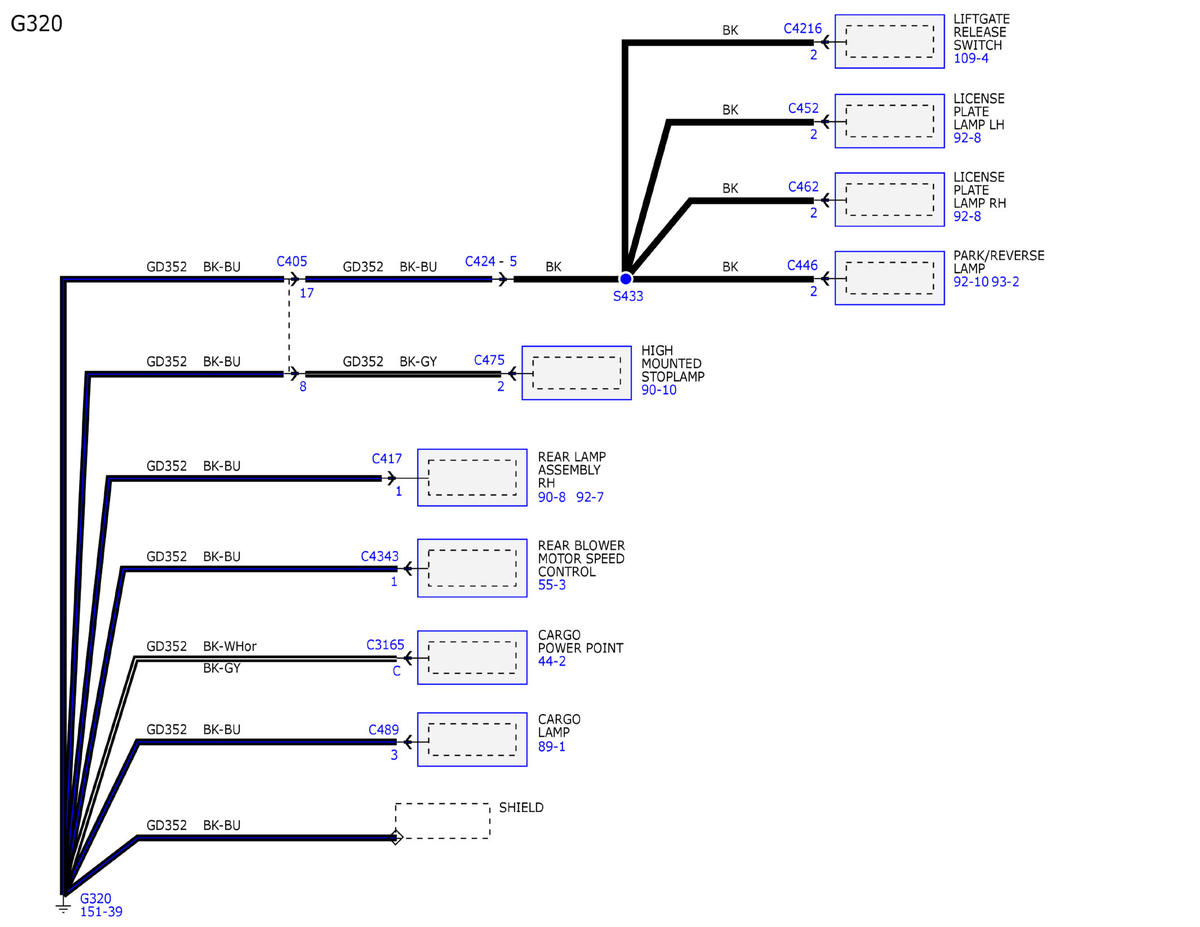

GFDWR218486Courtesy of FORD MOTOR COMPANY

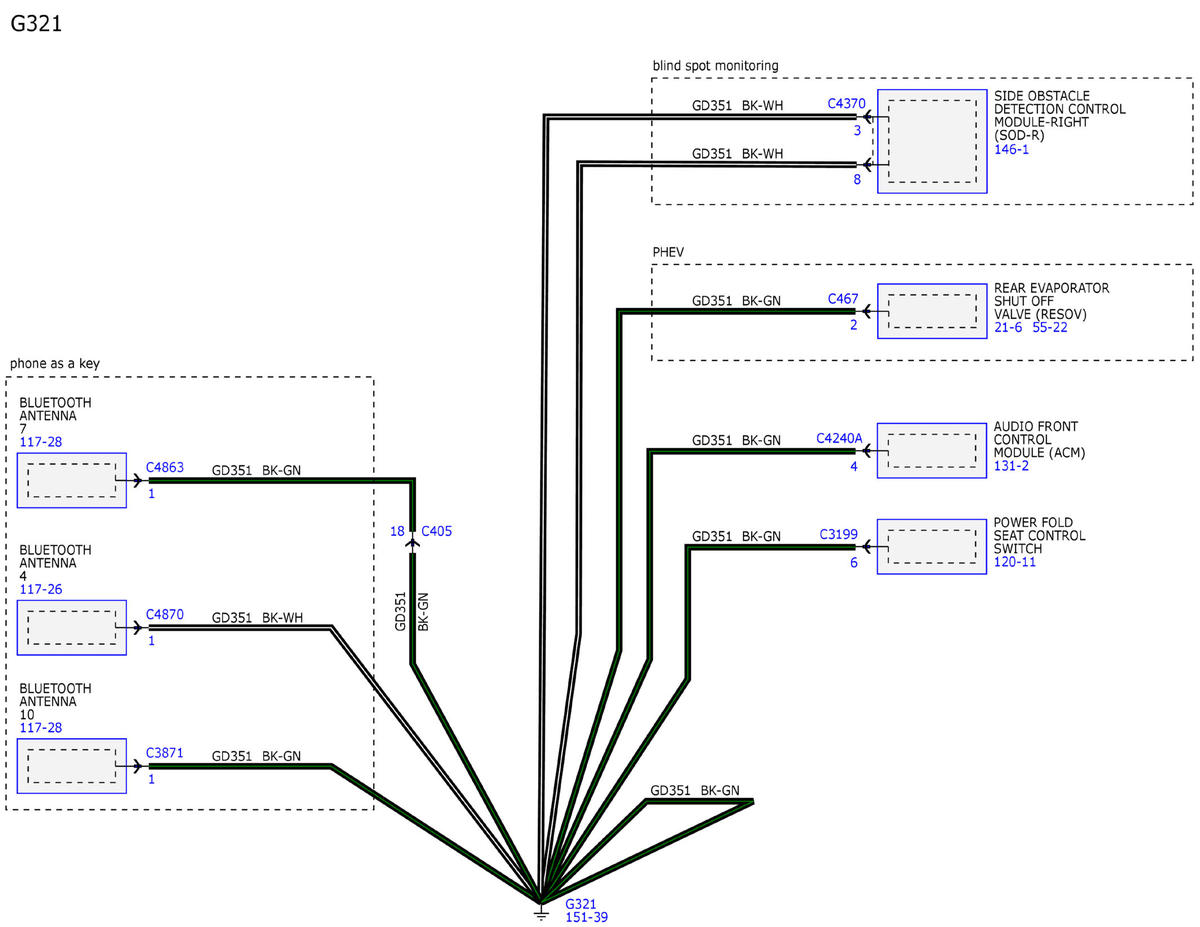

GFDWR218487Courtesy of FORD MOTOR COMPANY

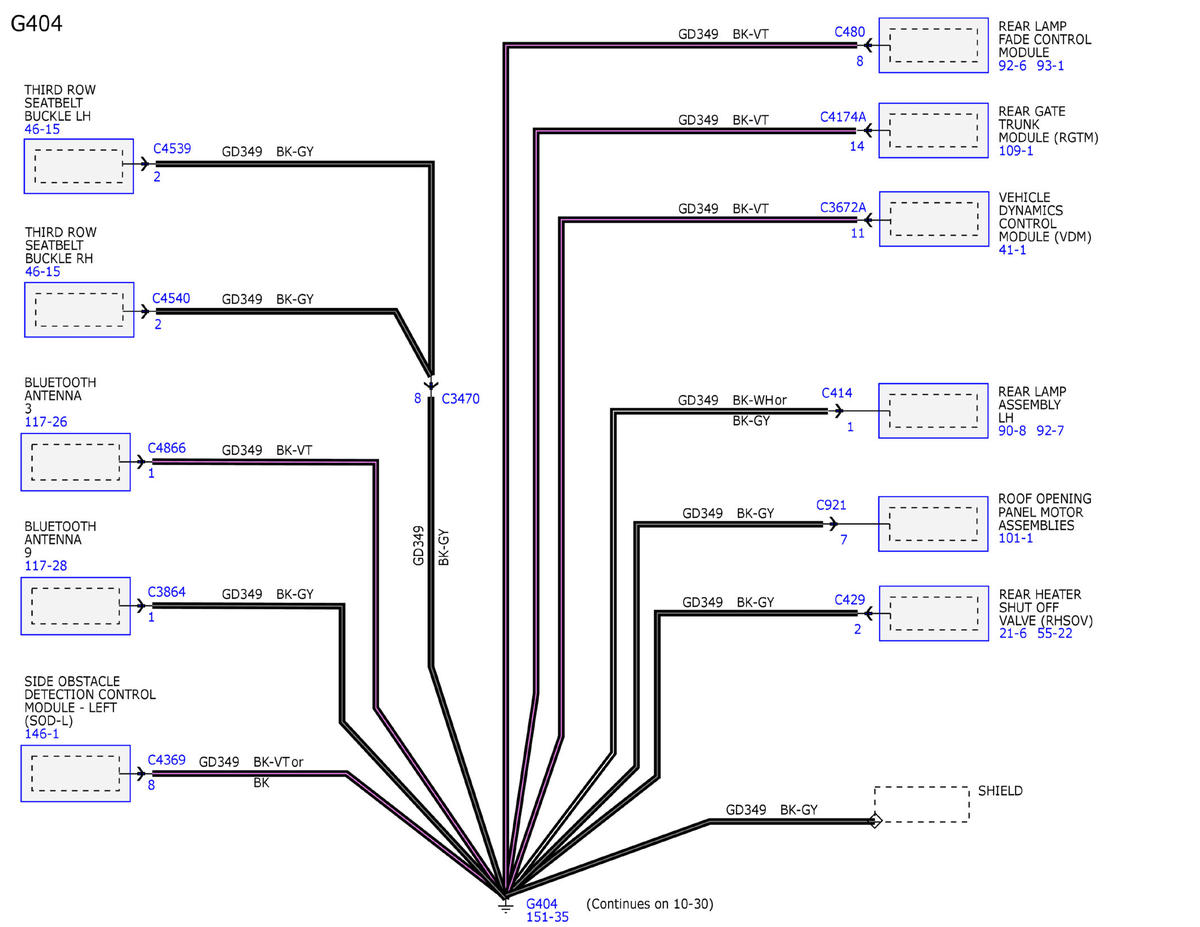

GFDWR218488Courtesy of FORD MOTOR COMPANY

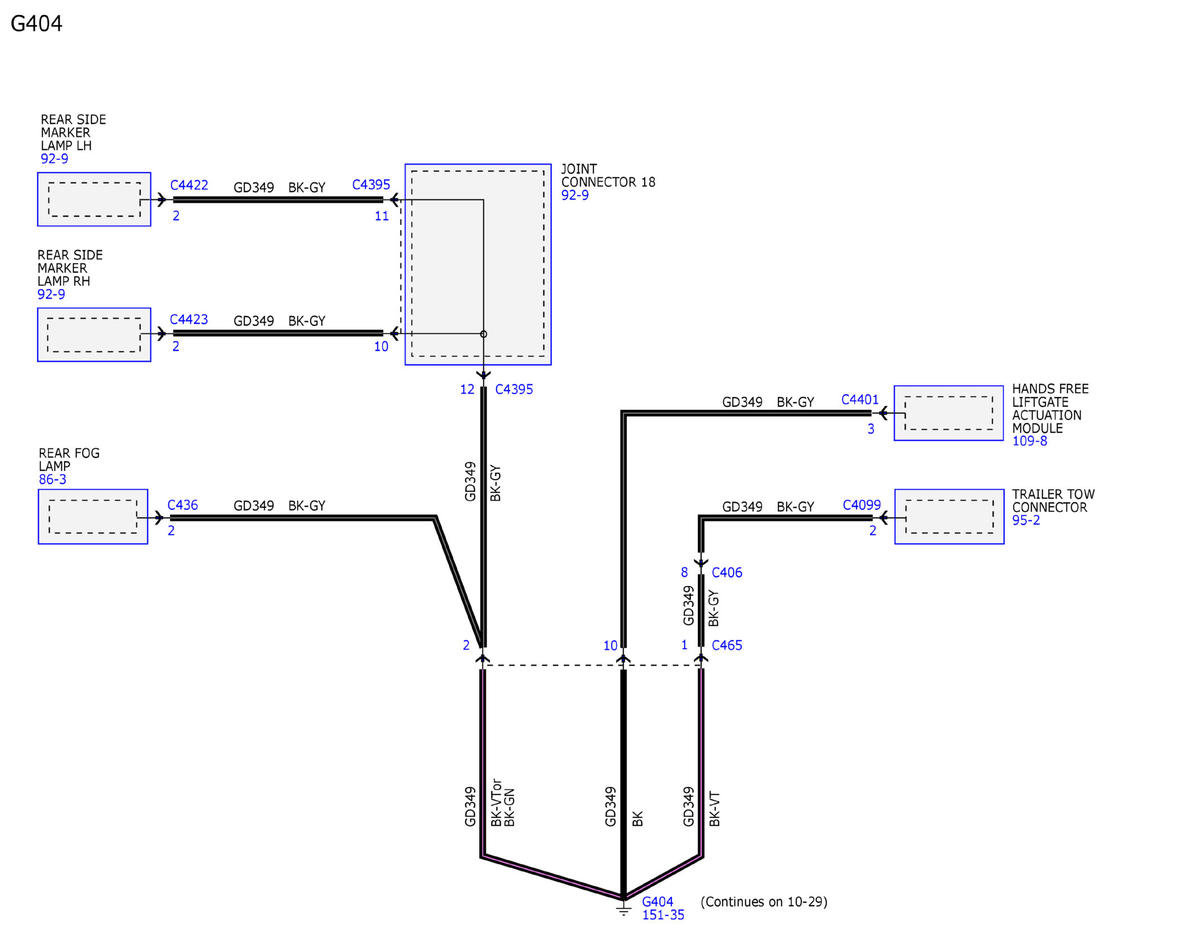

GFDWR218490Courtesy of FORD MOTOR COMPANY

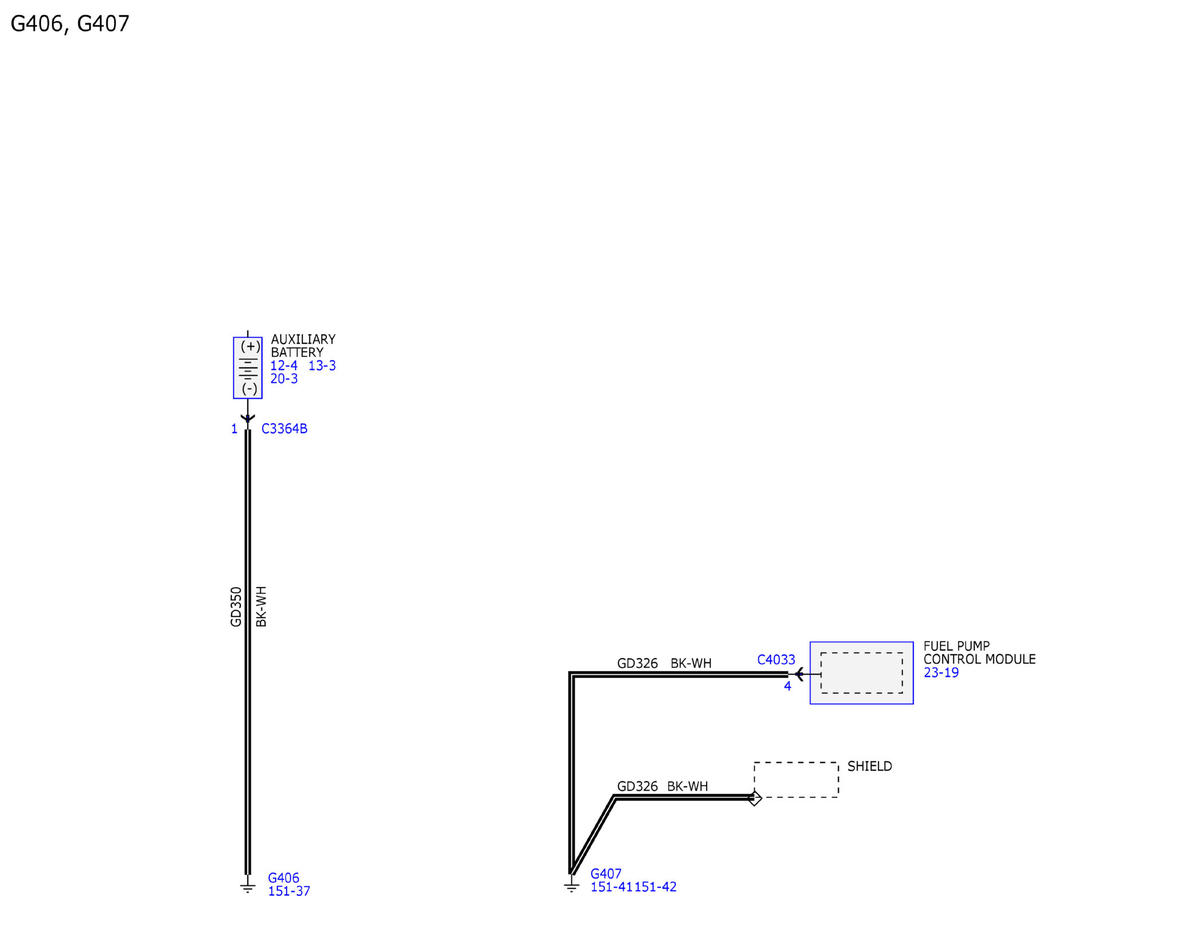

GFDWR218491Courtesy of FORD MOTOR COMPANY

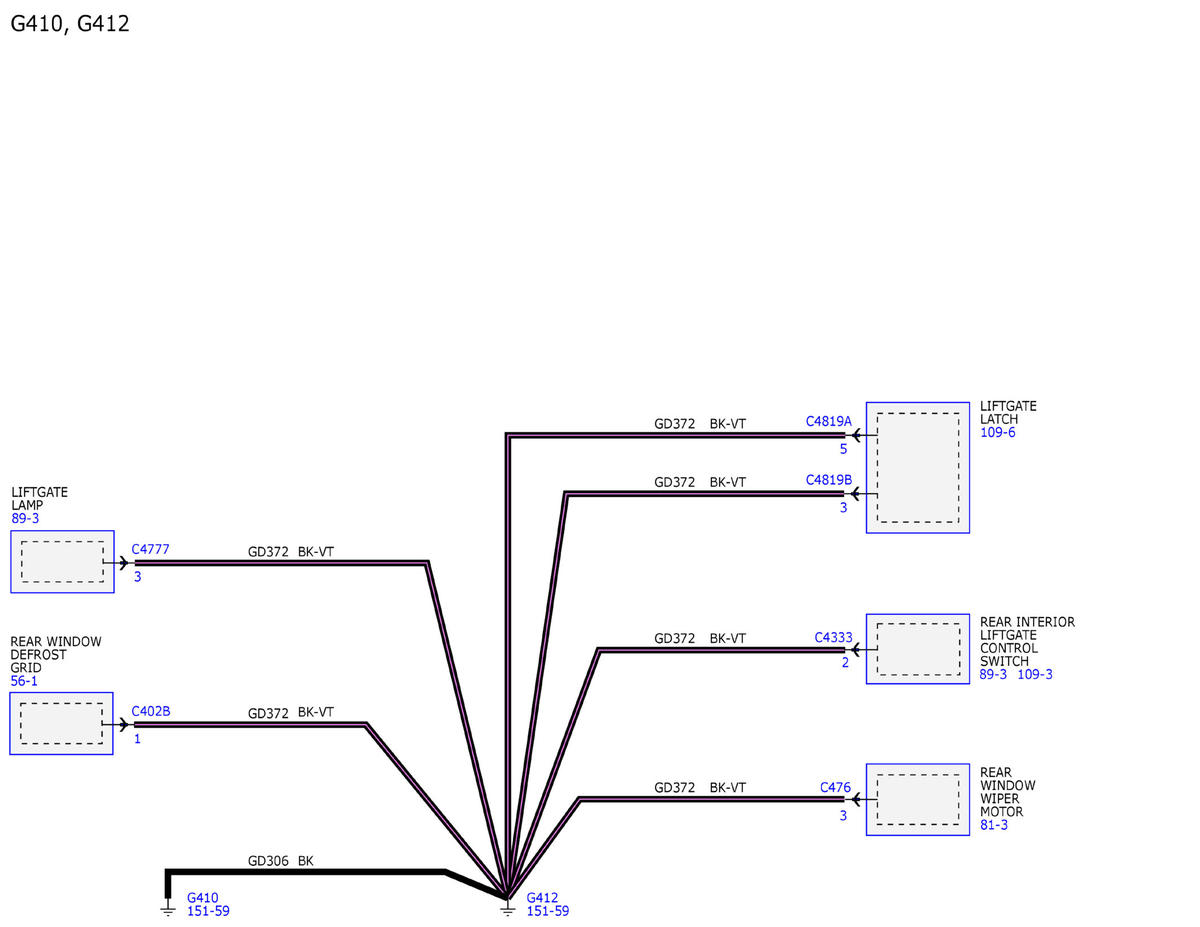

GFDWR218492Courtesy of FORD MOTOR COMPANY

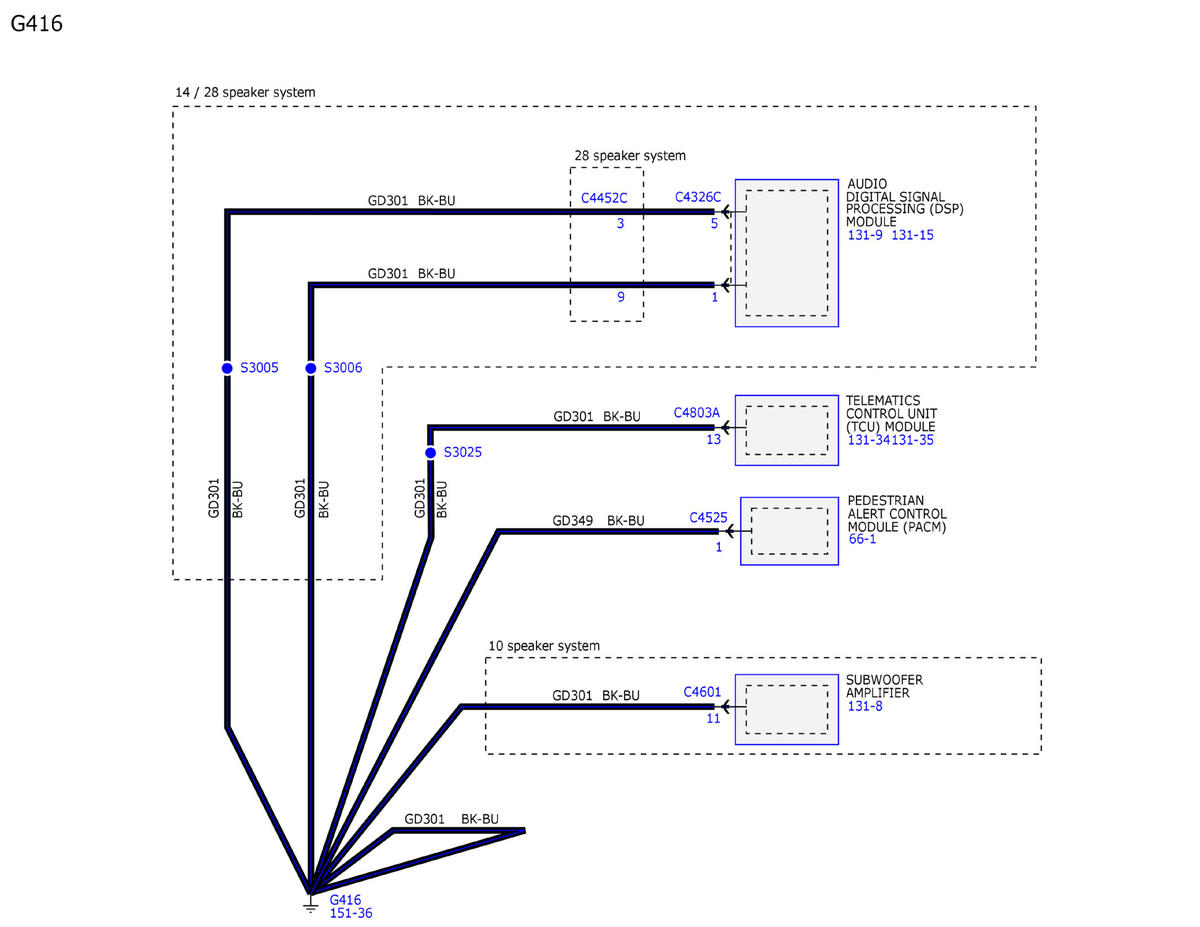

GFDWR218493Courtesy of FORD MOTOR COMPANY
