Powertrain Drivetrain Mount Neutralizing

For information on Ford Color Coded Illustrations refer to OEM COLOR CODING

Adjustment

With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .

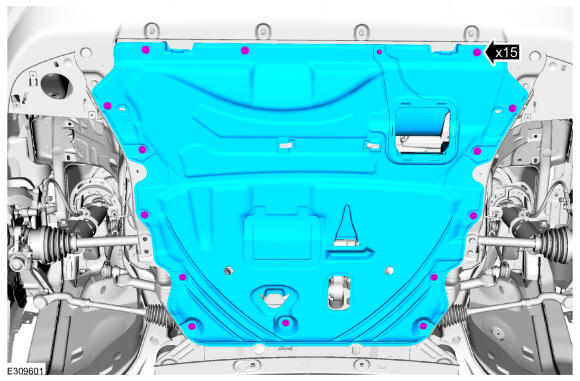

Remove the fasteners and the undershield.

Courtesy of FORD MOTOR COMPANY

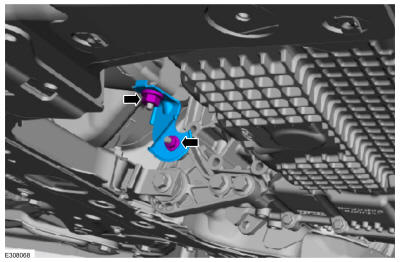

Remove the nuts and the bracket.

Courtesy of FORD MOTOR COMPANY

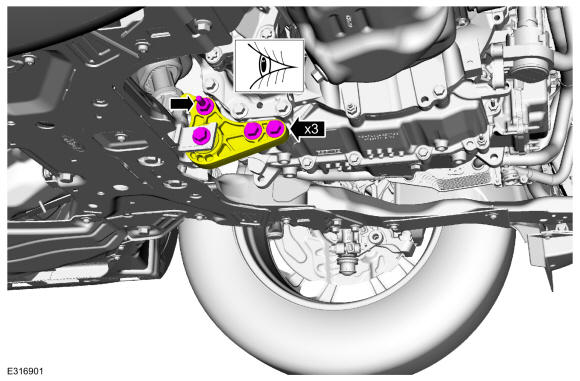

Loosen, but do not remove the roll restrictor fasteners. Verify that the roll restrictor is loose.

Courtesy of FORD MOTOR COMPANY

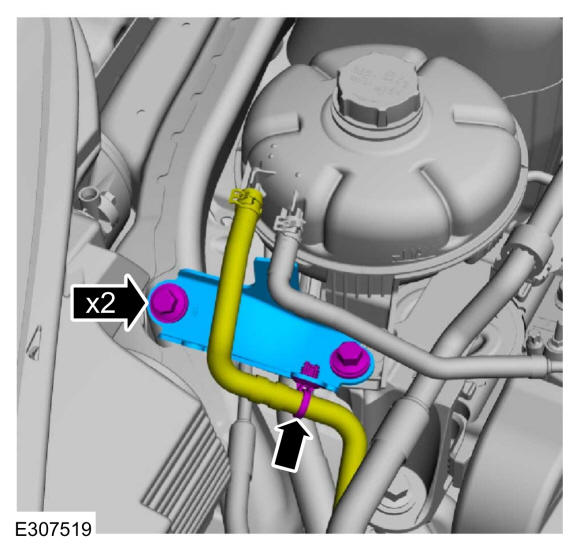

- Detach the coolant hose retainer.
- Remove the bolts and the degas bottle support bracket.
Courtesy of FORD MOTOR COMPANY

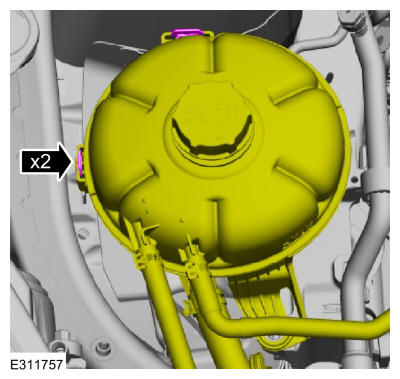

Release the tabs and position the degas bottle aside.

Courtesy of FORD MOTOR COMPANY

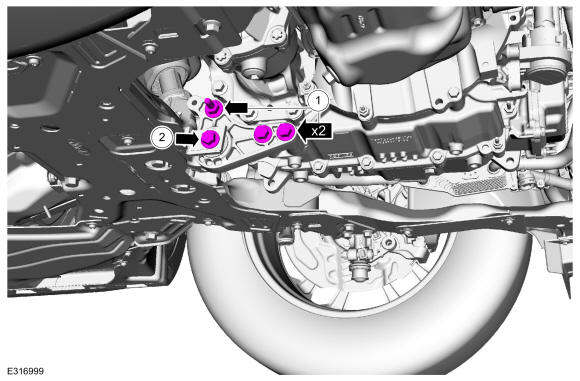

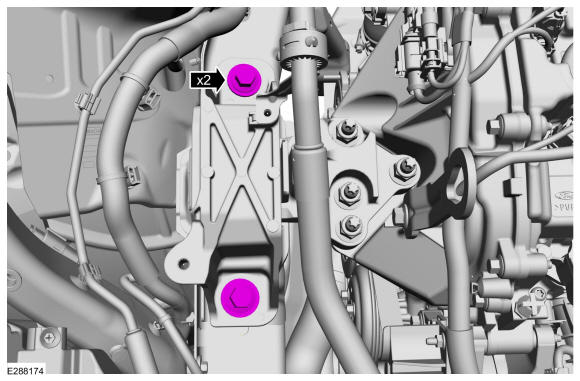

Loosen, but do not remove the engine mount bolts.

Courtesy of FORD MOTOR COMPANY

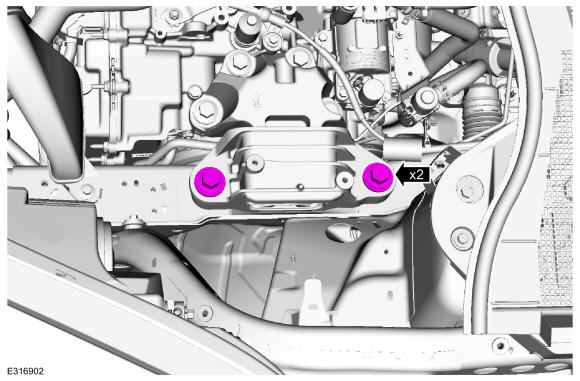

Loosen, but do not remove the transmission mount bolts.

Courtesy of FORD MOTOR COMPANY
NOTE: Do not twist or strain the powertrain/drivetrain mounts or damage to the mounts may occur.

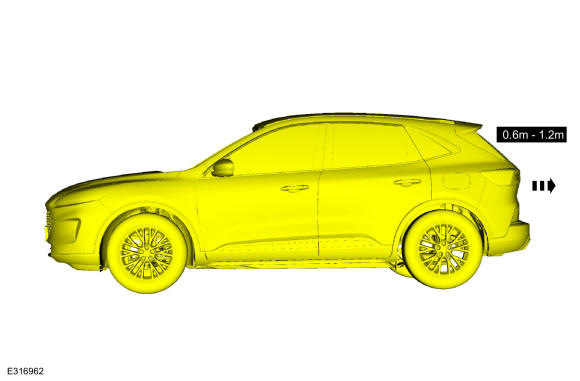

Start the vehicle and move it forward 0.6 m (1.97 ft) - 1.2 m (3.94 ft).

Courtesy of FORD MOTOR COMPANY
NOTE: Do not twist or strain the powertrain/drivetrain mounts or damage to the mounts may occur.

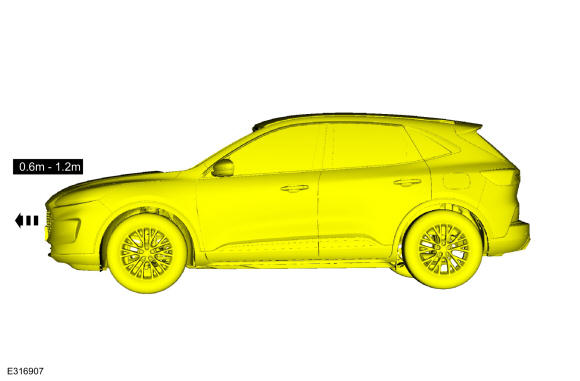

Move the vehicle in reverse the same distance 0.6 m (1.97 ft) - 1.2 m (3.94 ft).

Courtesy of FORD MOTOR COMPANY
Tighten the transmission mount bolts.
Torque:Stage 1: 103 lb.ft (140 Nm)Stage 2: 120deg.

Courtesy of FORD MOTOR COMPANY
Tighten the engine mount bolts.
Torque: 129 lb.ft (175 Nm)

Courtesy of FORD MOTOR COMPANY
Position the degas bottle on the tabs.

Courtesy of FORD MOTOR COMPANY
- Install the degas bottle support bracket and the bolts.
- Attach the coolant hose retainer.
Courtesy of FORD MOTOR COMPANY
- Tighten the bolts and studbolt.
  Torque: 81 lb.ft (110 Nm)
- Tighten the bolt.
  Torque: 129 lb.ft (175 Nm)
Courtesy of FORD MOTOR COMPANY
Install the bracket and the nuts.
Torque: 35 lb.ft (47 Nm)

Courtesy of FORD MOTOR COMPANY
Install the undershield and fasteners.

Courtesy of FORD MOTOR COMPANY
Test the system for normal operation.
