Connector Repair Procedures

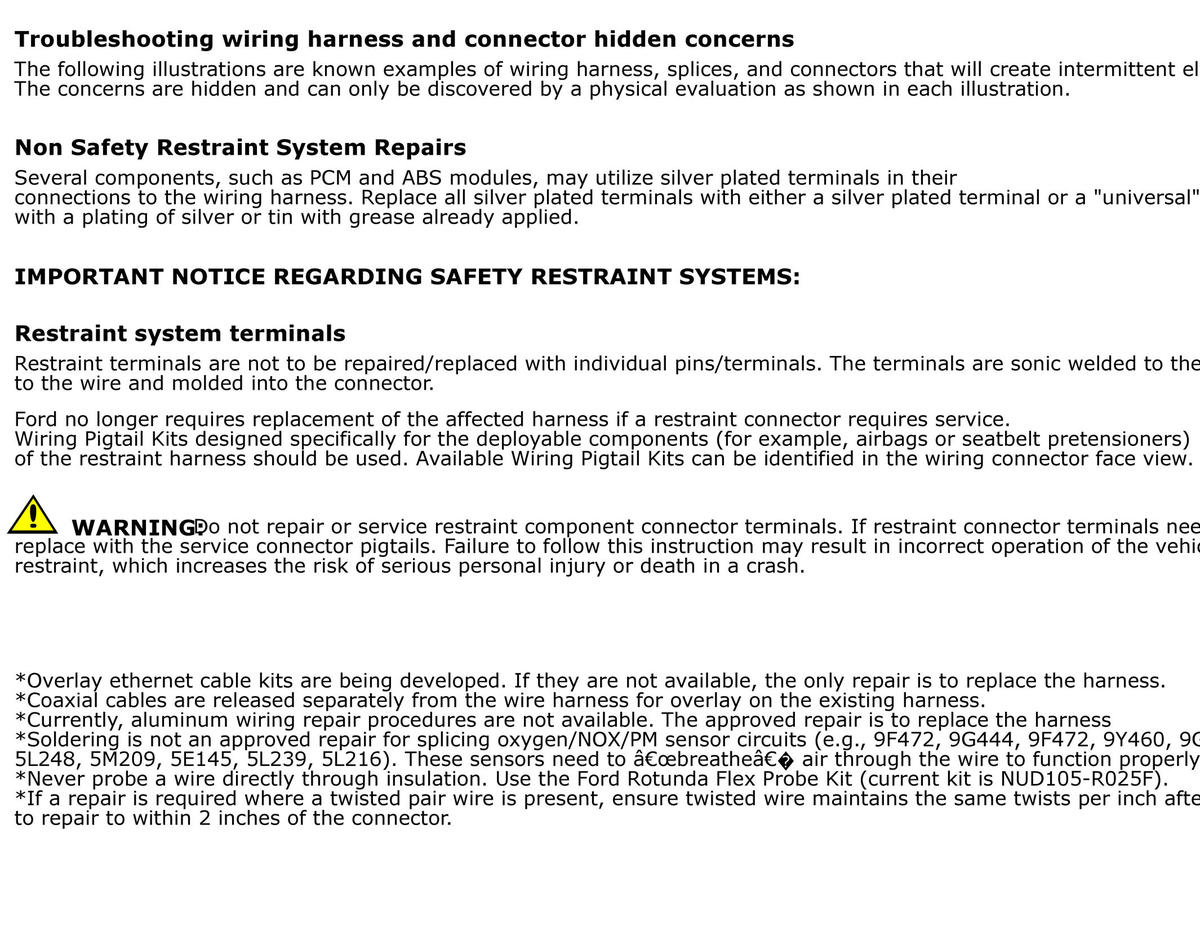

GFDWR215829Courtesy of FORD MOTOR COMPANY

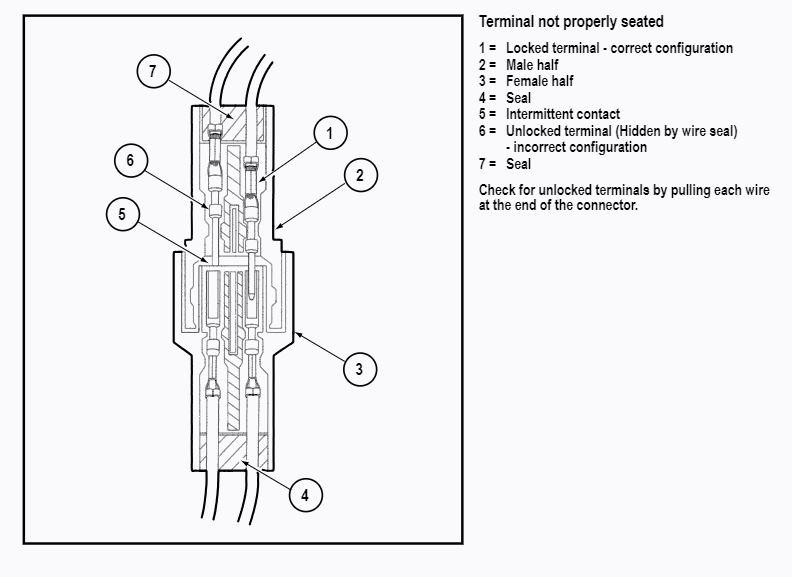

G00639392Courtesy of FORD MOTOR COMPANY

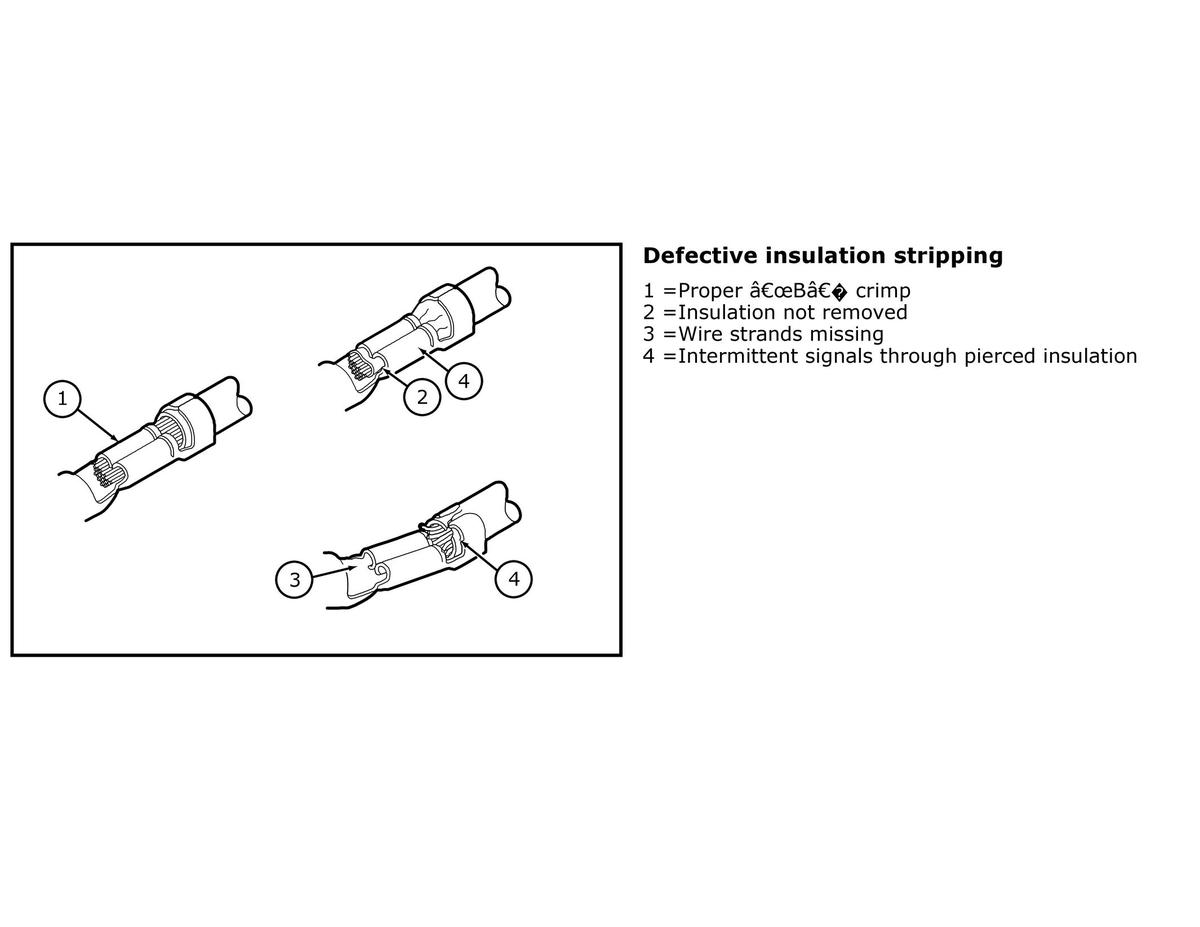

GFDWR215831Courtesy of FORD MOTOR COMPANY

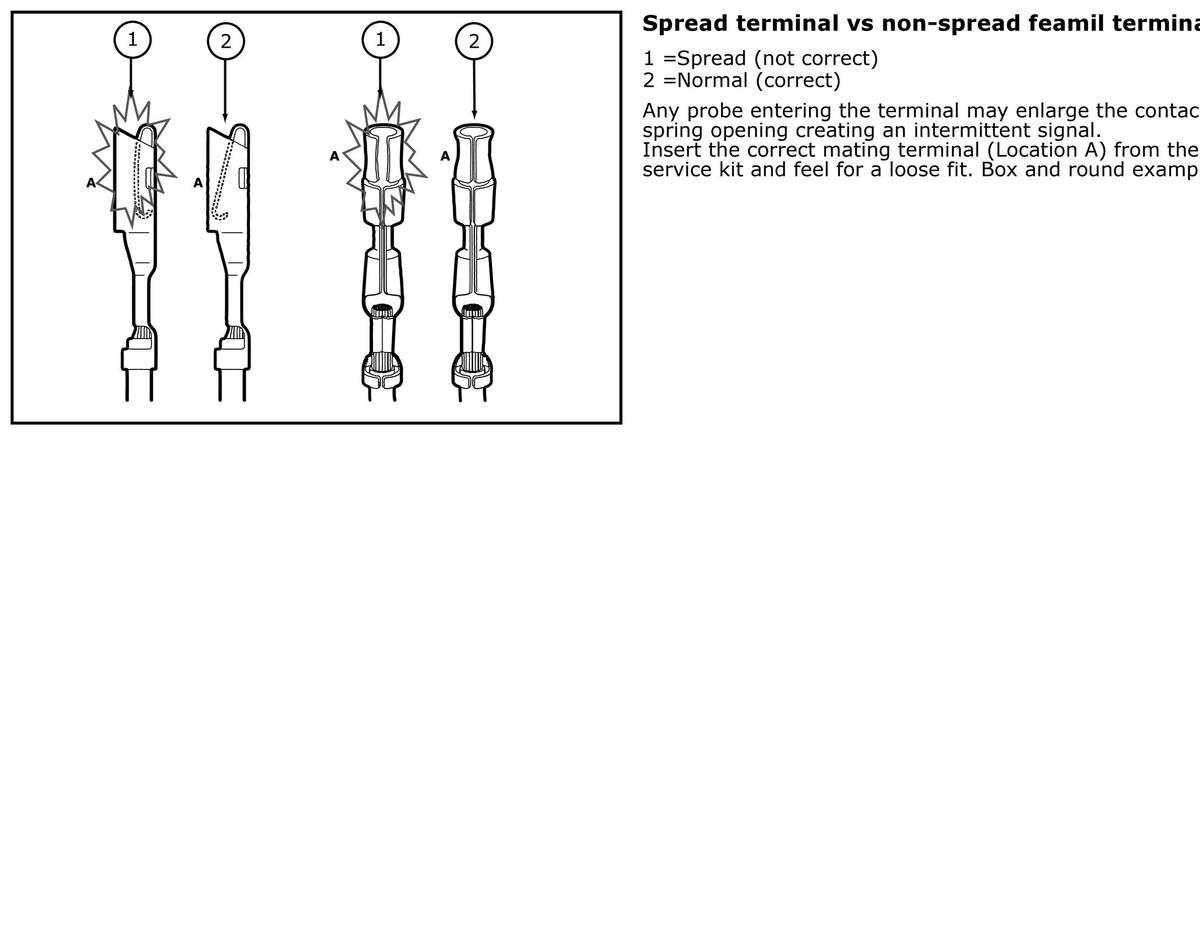

GFDWR215832Courtesy of FORD MOTOR COMPANY

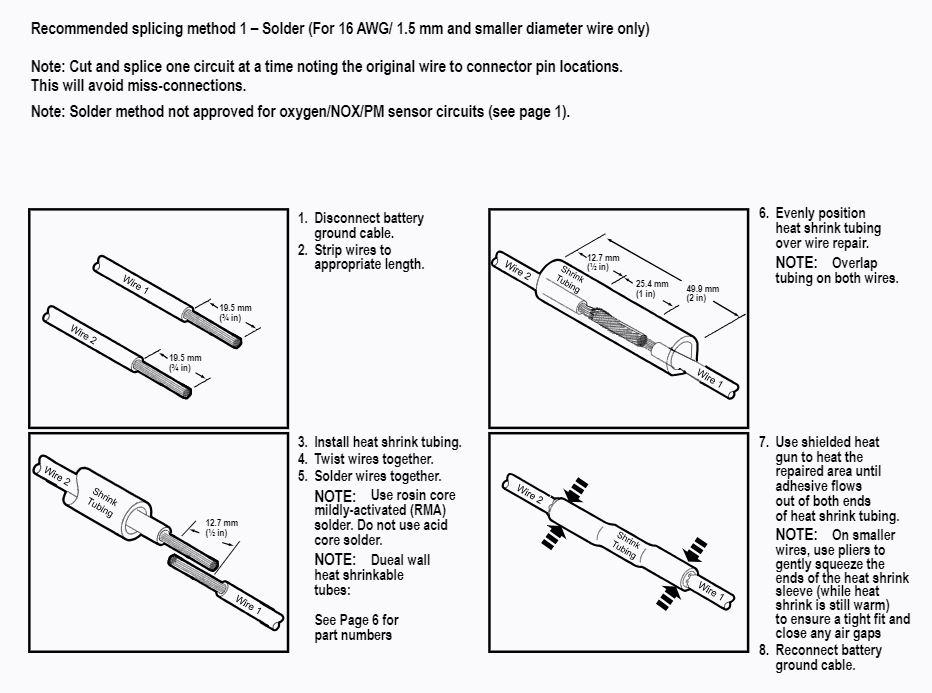

G00639396Courtesy of FORD MOTOR COMPANY

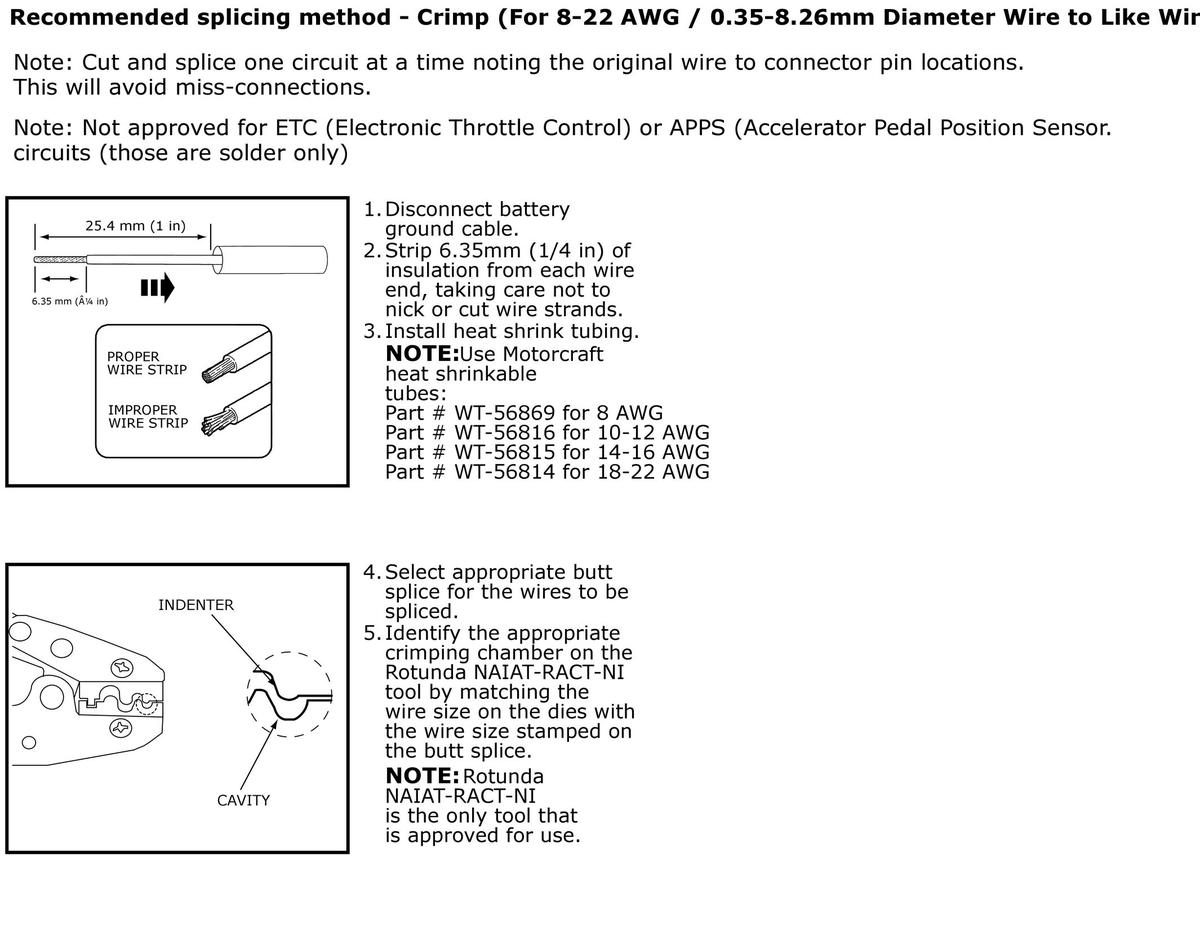

GFDWR215834Courtesy of FORD MOTOR COMPANY

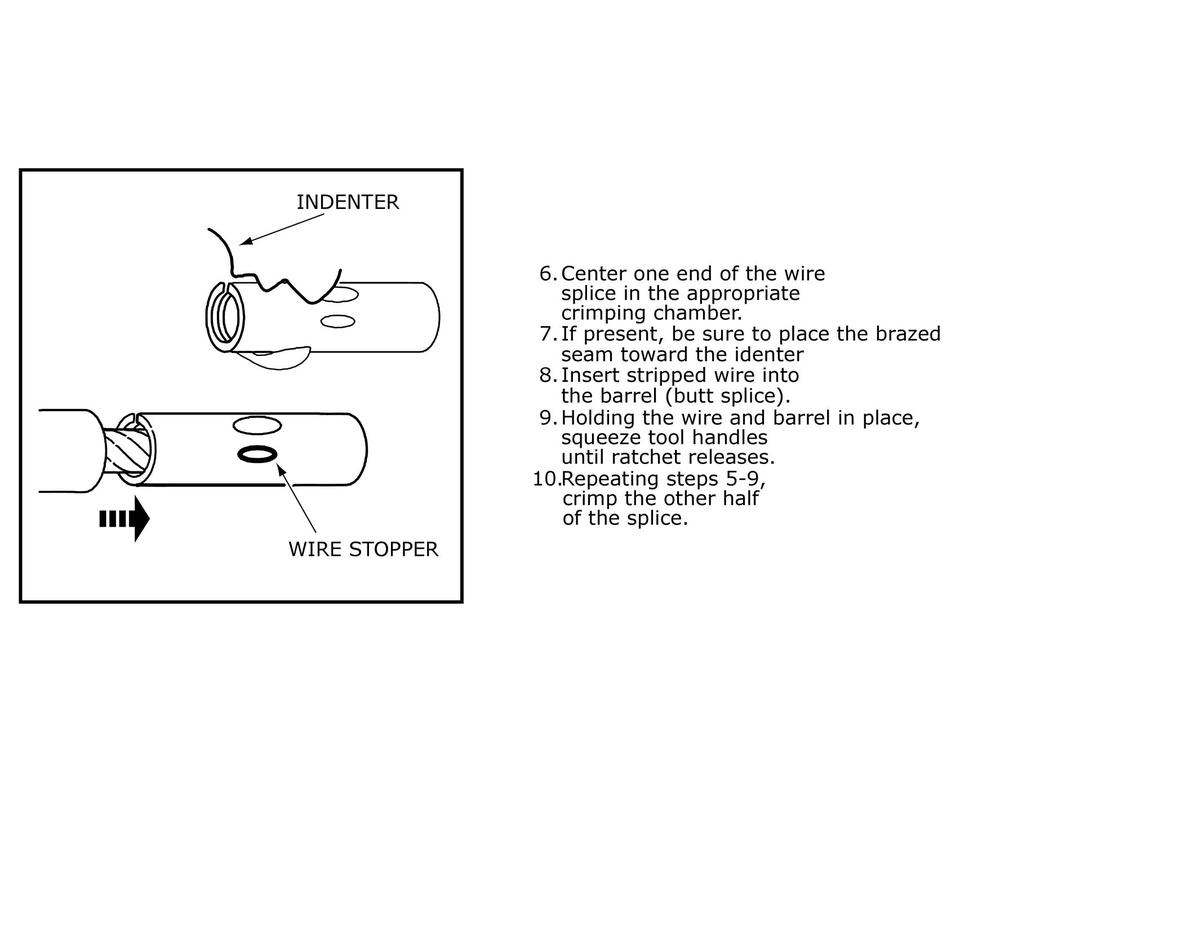

GFDWR215835Courtesy of FORD MOTOR COMPANY

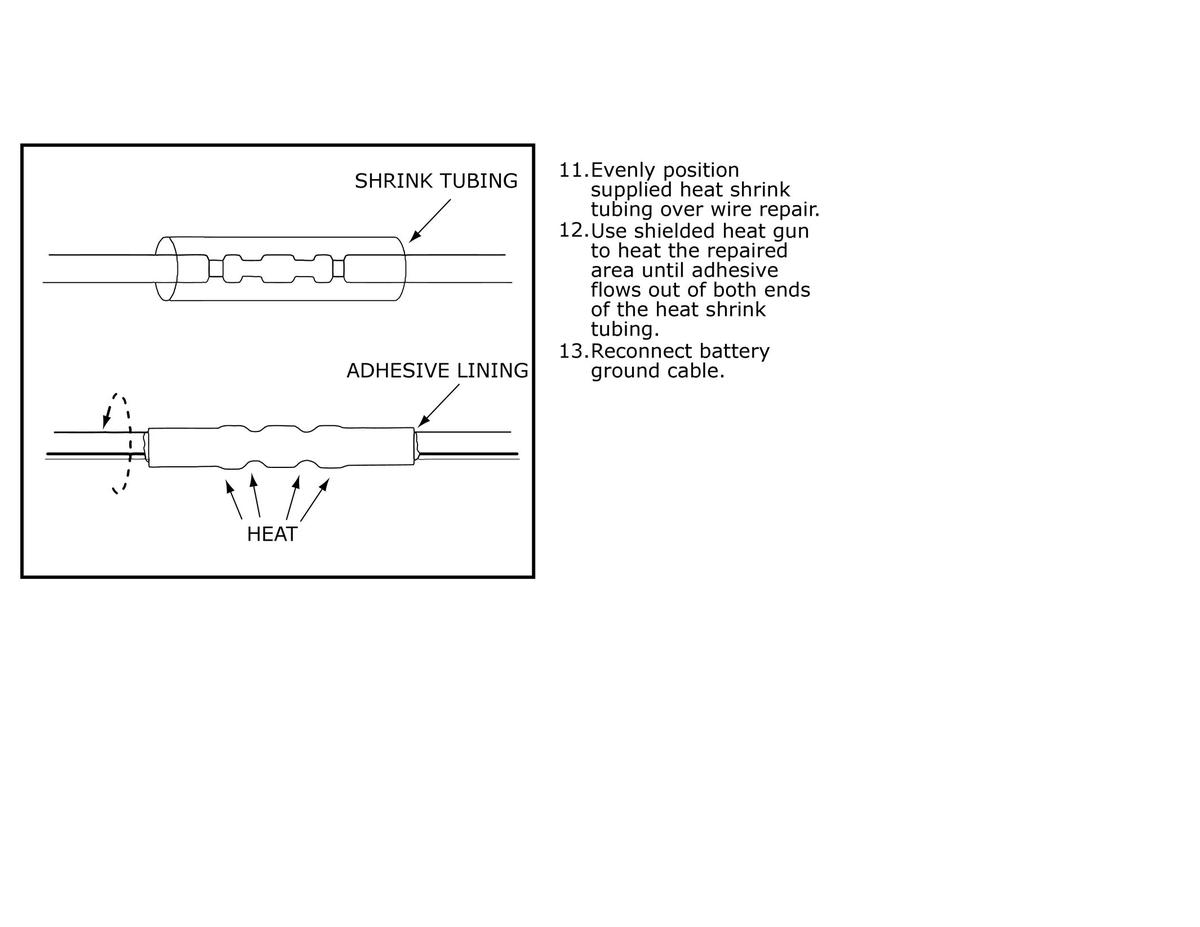

GFDWR215836Courtesy of FORD MOTOR COMPANY

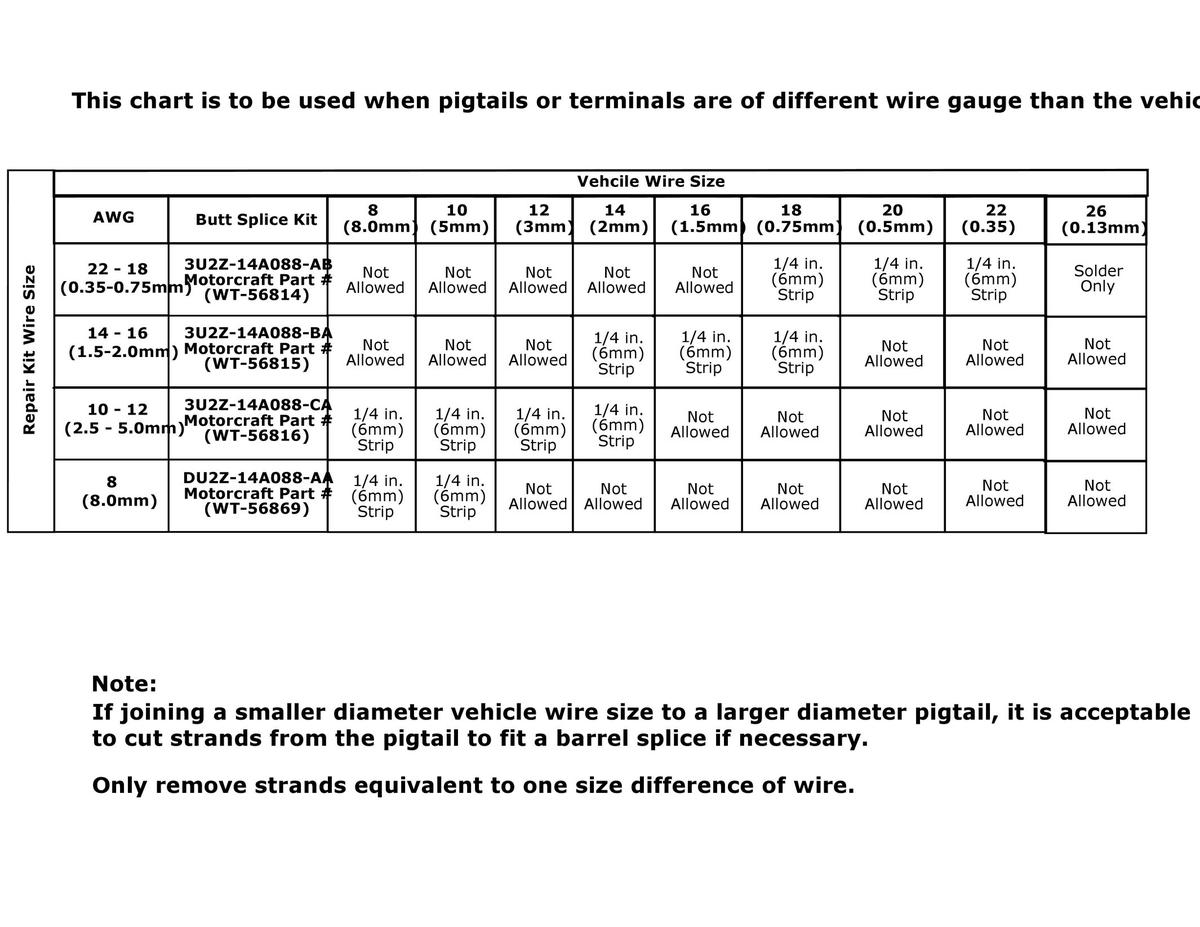

GFDWR215837Courtesy of FORD MOTOR COMPANY
