Steering Column Upper Shaft: Installation

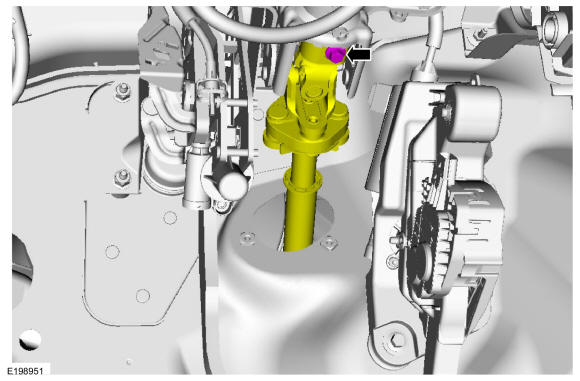

Connect the upper shaft to the steering column and install the new bolt.
Torque: 22 lb.ft (30 Nm)

Courtesy of FORD MOTOR COMPANY

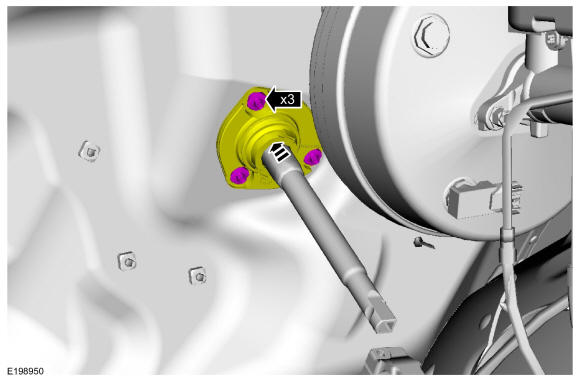

Seat the dash seal and install the new bolts.
Torque: 106 lb.in (12 Nm)

Courtesy of FORD MOTOR COMPANY

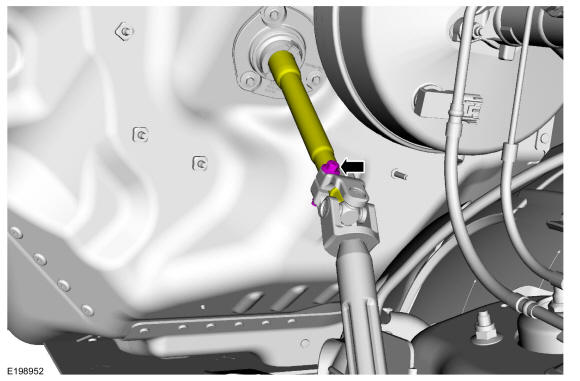

Connect the upper shaft to the lower shaft and install the new bolt.
Torque: 35 lb.ft (48 Nm)

Courtesy of FORD MOTOR COMPANY
