Exhaust Gas Recirculation (EGR) Valve: Removal

1. Remove the engine appearance cover retainers, release the engine appearance cover from the rear retainers and then remove the engine appearance cover.

   Courtesy of FORD MOTOR COMPANY

2. Remove the RH side air cleaner outlet pipe. Refer to: Air Cleaner Outlet Pipe RH .
3. Remove the RH side CAC intake pipe. Refer to: Charge Air Cooler (CAC) Intake Pipe .
4. Drain the cooling system. Refer to: Engine Cooling System Draining, Vacuum Filling and Bleeding .
5. Remove the A/C compressor outlet line bracket retainer and position aside the A/C compressor outline bracket.

   Courtesy of FORD MOTOR COMPANY

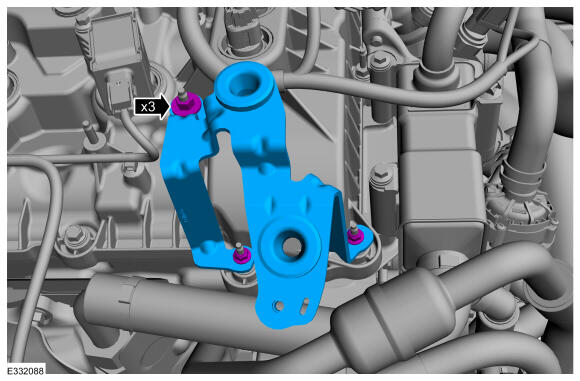

6. Remove the CAC tube bracket retainers and remove the CAC tube bracket.

   Courtesy of FORD MOTOR COMPANY

7. Disconnect the electrical connectors and wiring harness retainer. Position aside the wiring harness.

   Courtesy of FORD MOTOR COMPANY

8. Disconnect the lower coolant hose from the EGR cooler assembly. Refer to: Quick Release Coupling .

   Courtesy of FORD MOTOR COMPANY

9. Disconnect the upper coolant hose from the EGR cooler assembly. Refer to: Quick Release Coupling .

   Courtesy of FORD MOTOR COMPANY

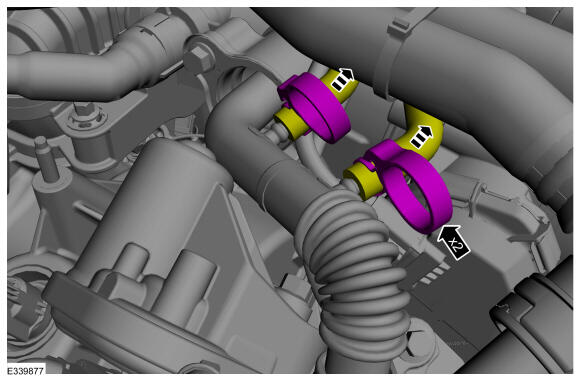

10. Loosen the clamps and disconnect the differential pressure sensor hoses.

    Courtesy of FORD MOTOR COMPANY

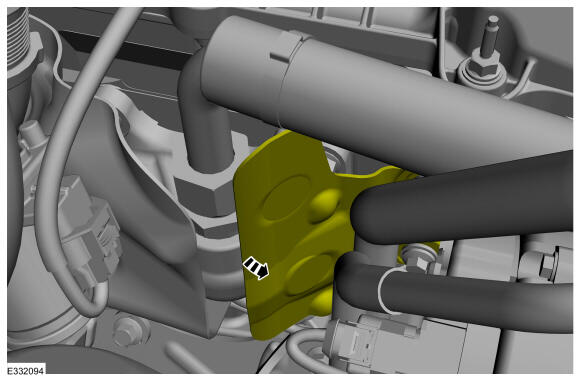

11. Position aside the heat shield.

    Courtesy of FORD MOTOR COMPANY

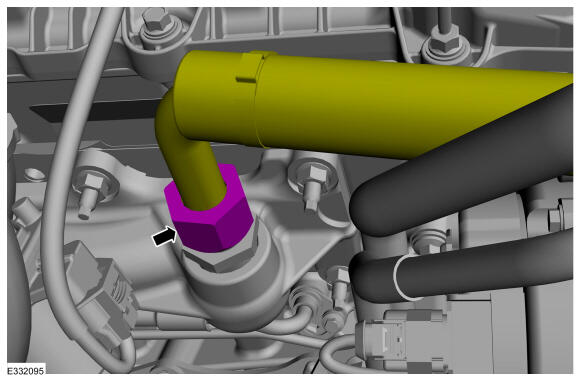

12. Remove the EGR inlet tube nut.

    Courtesy of FORD MOTOR COMPANY

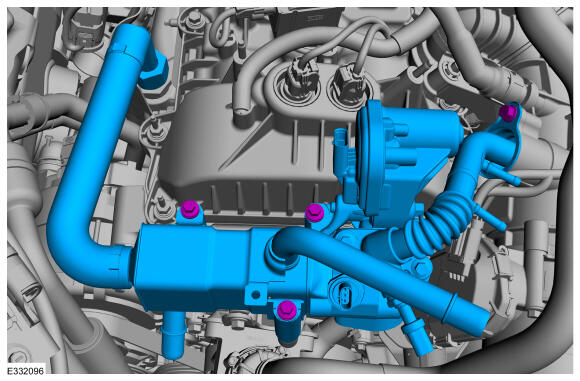

13. Remove the EGR assembly.

    Courtesy of FORD MOTOR COMPANY

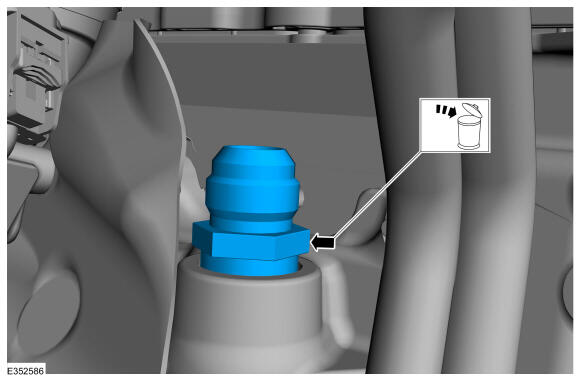

14. Remove and discard the EGR to exhaust manifold connector.

    Courtesy of FORD MOTOR COMPANY

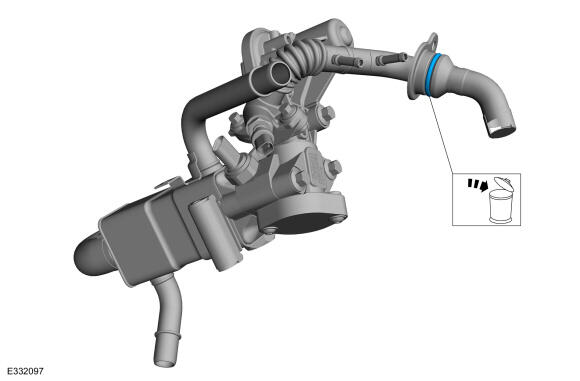

15. Remove and discard the EGR outlet tube o-ring.

    Courtesy of FORD MOTOR COMPANY

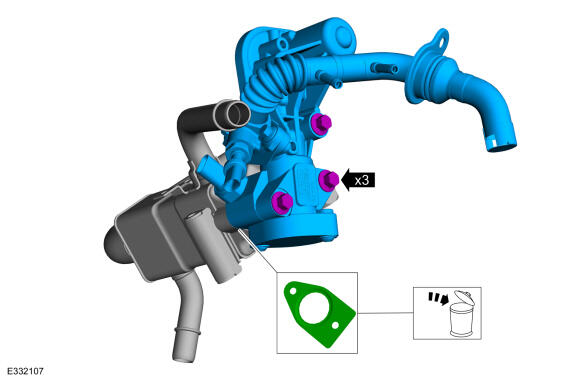

16. • Remove the bolts and EGR valve assembly.
    • Remove and discard the EGR valve gasket.

    Courtesy of FORD MOTOR COMPANY

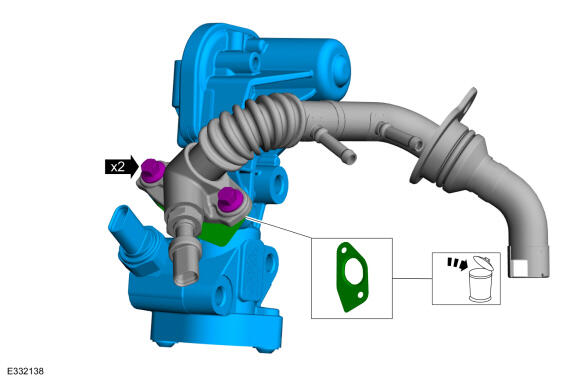

17. • Remove the EGR outlet tube retainers and EGR valve assembly.
    • Remove and discard the EGR outlet tube gasket.

Courtesy of FORD MOTOR COMPANY
