Image Processing Module A (IPMA): Removal

WARNING: This page is about a different car, the 2024 Lincoln Aviator. However, it is still accessible from the selected car via links, so may be relevant.

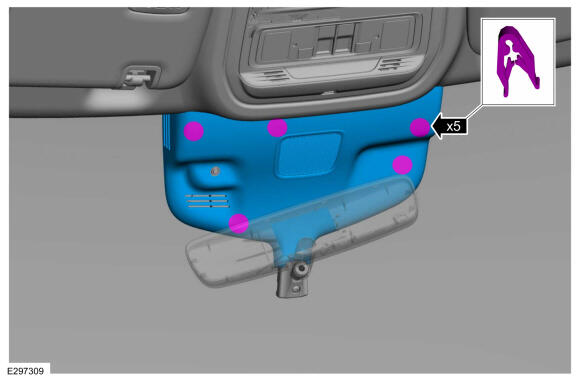

  1. Release the clips and remove the IPMA cover.
    GFD880755Courtesy of FORD MOTOR COMPANY

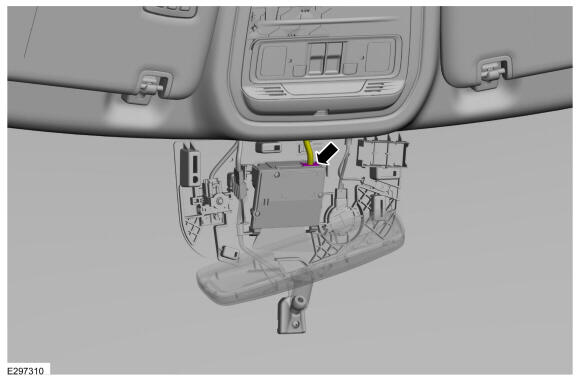

  2. Disconnect the electrical connector.
    GFD880756Courtesy of FORD MOTOR COMPANY

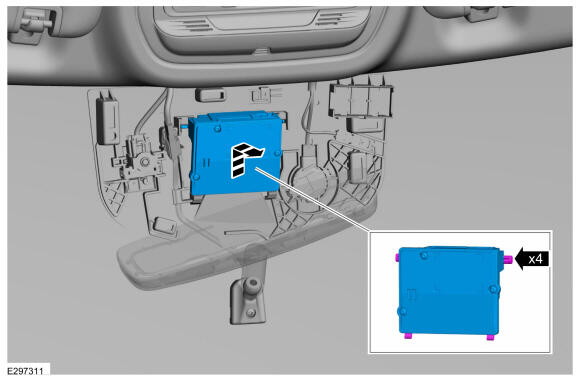

  3. Release the tabs and remove the IPMA.
GFD880757Courtesy of FORD MOTOR COMPANY
