Cylinder Head: Installation

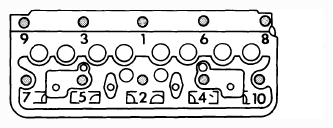

To install, reverse removal procedure then tighten head nuts gradually in sequence shown in Fig 1.
VALVES
| Engine & Valve | Head Diam. In. (mm) | Face Angle | Seat Angle | Seat Width In. (mm) | Stem Diameter In. (mm) | Stem Clearance In. (mm) | Valve Lift In. (mm) | |
|---|---|---|---|---|---|---|---|---|
| 1493 cc | ||||||||
| Int. | 1.380 (34.99) | 45° | 45.5° | ..... | .3107-.3113 (7.89-7.91) | .0007-.0023 (.02-.06) | ..... | |
| Exh. | 1.170 (29.71) | 45° | 45.5° | ..... | .3100-.3105 (7.874-7.887) | .0015-.0030 (.04-.07) | ..... | |
