Oil Pump: Reassembly

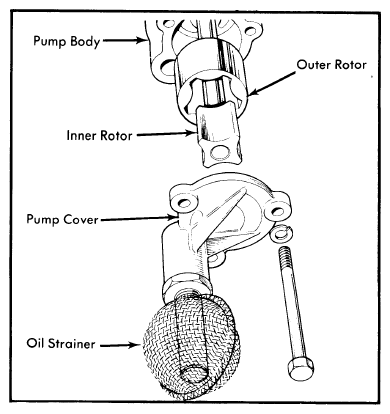

To reassemble, reverse disassembly procedure and ensure that outer rotor is installed in pump body with chamfered end at driving end of pump body.
NOTE:
Oil pressure relief valve is located in front of block behind hex head plug bolt. Spring free length should be 1.53" (38.8 mm).
