Rotary Pickup

Remove steering wheel as outlined. Disconnect wiring harness beneath instrument panel, remove retaining ring which secures the combination switch, and lift switch assembly from steering column.

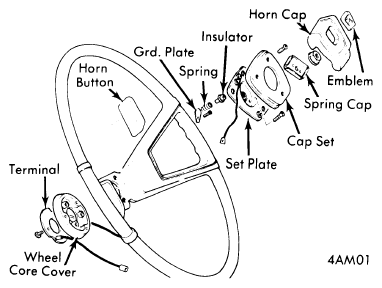

Fig 1: Mazda Steering Wheel Components (Rx-4 & Rotary Pickup Shown)
G09355771Courtesy of MAZDA MOTORS CORP.
