Sub-System Wiring Diagrams - Seat Belt Warning Systems
›
Wiring Diagrams
Wiring Diagrams

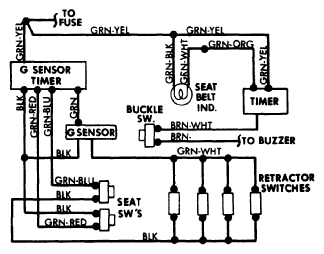

Fig 1: Seat Belt Warning System Wiring Diagram (Mazda 808)
Courtesy of MAZDA MOTORS CORP.

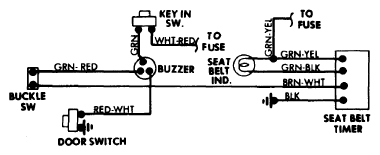

Fig 2: Seat Belt Warning System Wiring Diagram (Mazda B1600)
Courtesy of MAZDA MOTORS CORP.

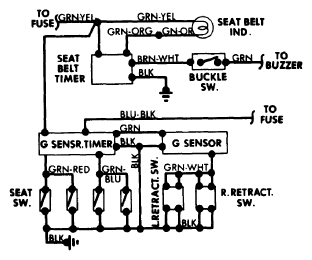

Fig 3: Seat Belt Warning System Wiring Diagram (Mazda RX3)
Courtesy of MAZDA MOTORS CORP.

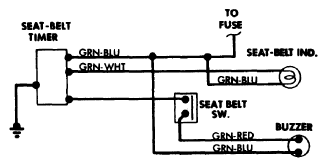

Fig 4: Seat Belt Warning System Wiring Diagram (Mazda RX4)
Courtesy of MAZDA MOTORS CORP.

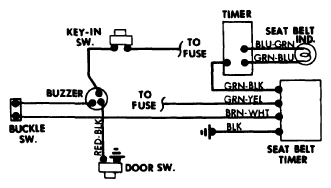

Fig 5: Seat Belt Warning System Wiring Diagram (Mazda Cosmo)
Courtesy of MAZDA MOTORS CORP.
