Removal & Installation: Installation

To install steering gear, reverse removal procedure, noting the following: Fill and bleed system, then start engine and check for leaks by turning steering wheel to left and right.

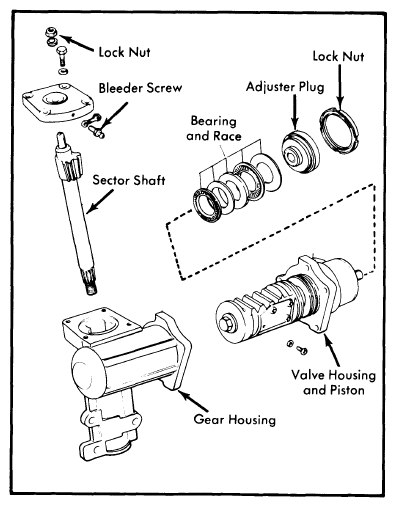

Fig 1: Exploded View Of Mazda Power Steering Gear
G09356249Courtesy of MAZDA MOTORS CORP.
