Sub-System Wiring Diagrams - Seat Belt Warning Systems: Wiring Diagram

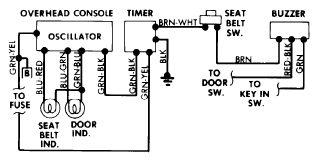

Fig 1: Seat Belt Warning System Wiring Diagram (Mazda 808)

Courtesy of MAZDA MOTORS CORP.

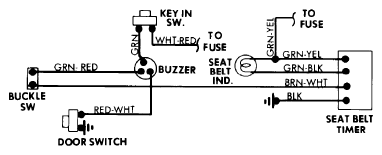

Fig 2: Seat Belt Warning System Wiring Diagram (Mazda RX3SP and GLC)

Courtesy of MAZDA MOTORS CORP.

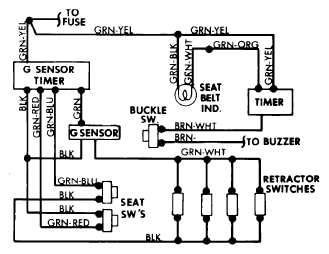

Fig 3: Seat Belt Warning System Wiring Diagram (Mazda Cosmo)

Courtesy of MAZDA MOTORS CORP.

Fig 4: Seat Belt Warning System Wiring Diagram (Mazda RX4)

Courtesy of MAZDA MOTORS CORP.
