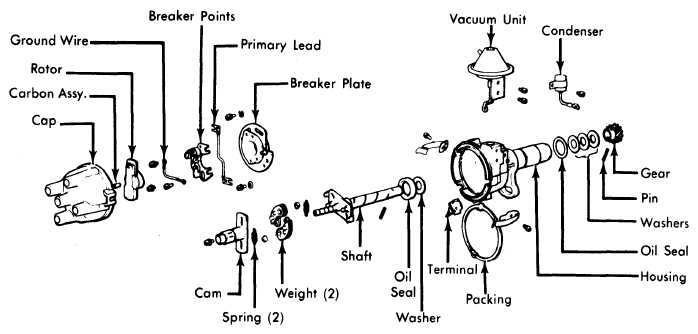

Disassembly & Reassembly
- Remove cap, rotor and condenser. Remove snap ring from breaker plate spindle. Remove vacuum advance unit. Disconnect ground and primary leads.
- Remove terminal, breaker points, and breaker plate. Remove cam assembly, governor springs, and weights. Remove lock pin from gear. Remove gear and shaft assembly.
- Assemble distributor in reverse order of disassembly. Make sure points are in good condition, check cap and rotor for cracks or carbon-tracking. Apply small amount of light-weight grease to distributor cam, arm spindle and vacuum link.
