Modified Two EGR Valve System

In this system, the No. 1 EGR valve controls exhaust flow under light load driving conditions. The No. 2 EGR valve controls exhaust flow during heavy load driving conditions. Both valves are closed until thermal valves open at engine coolant temperatures above 122° F (50° C).

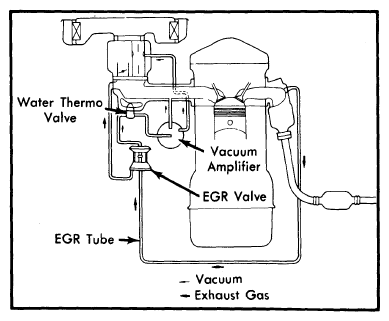

Fig 1: Schematic of Mazda One EGR Valve System (GLC - Except Calif. Auto. Trans. and B2000 Models)

Courtesy of MAZDA MOTORS CORP.

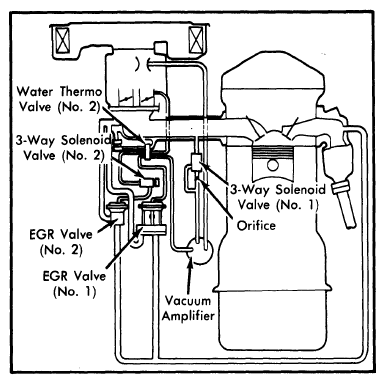

Fig 2: Schematic of Mazda Two EGR Valve System (Calif. Auto. Trans. GLC Model Only)

Courtesy of MAZDA MOTORS CORP.

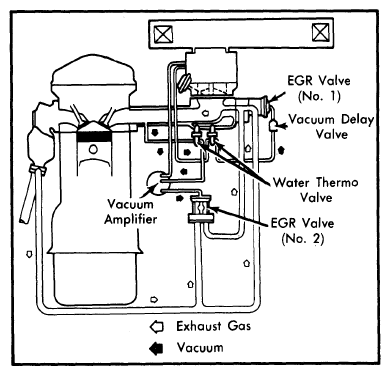

Fig 3: Schematic of Mazda 626 Modified Two EGR Valve System

Courtesy of MAZDA MOTORS CORP.
