Alternators & Regulators MITSUBISHI Alternators: Overhaul: Reassembly

Reassemble by reversing disassembly procedures, making sure polarity of diodes is correct.

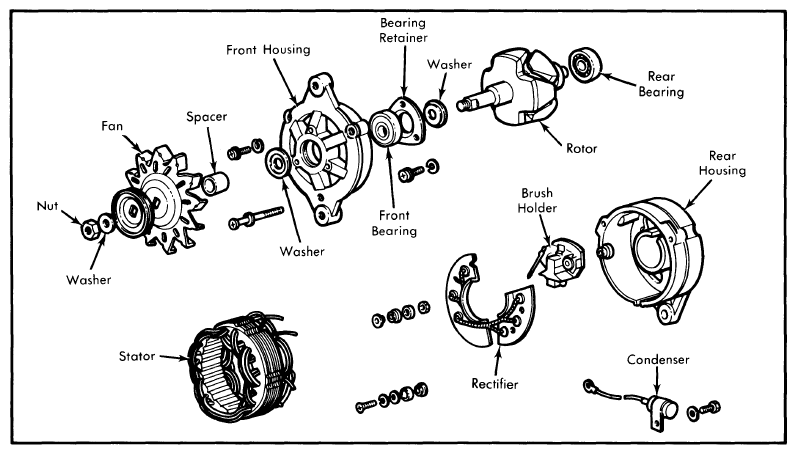

Fig 1: Exploded View of Mitsubishi Alternator (Courier Application Shown)

Courtesy of NOT AVAILABLE
