MAZDA Rotary Engine Vacuum Diagram
MAZDA Rotary Engine Vacuum Diagram

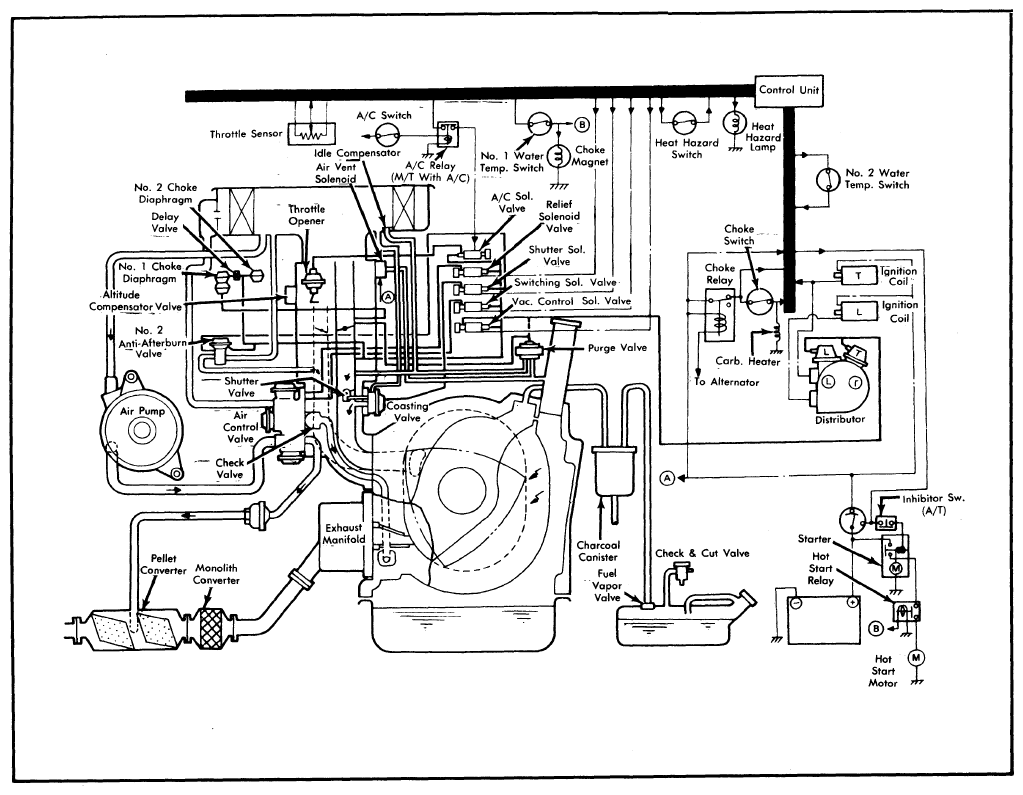

Fig 1: Vacuum Diagram for Mazda RX-7
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
