IGNITOR Check

Remove ignitor from distributor base. Make a circuit as shown in Fig 2 with wire and a test bulb. Use 12 volts and a bulb of less than 10 watts.

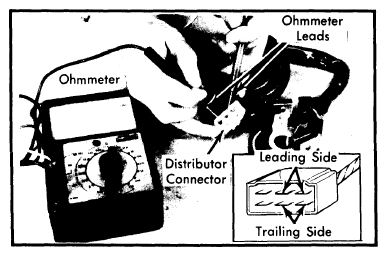

Fig 1: Ohmmeter Hookup for Pick-Up Coil Resistance Check
Courtesy of NOT AVAILABLE

Fig 2: Test Lamp Hookup for Checking Ignitor Operation - Bulbs Should Flash
Courtesy of NOT AVAILABLE

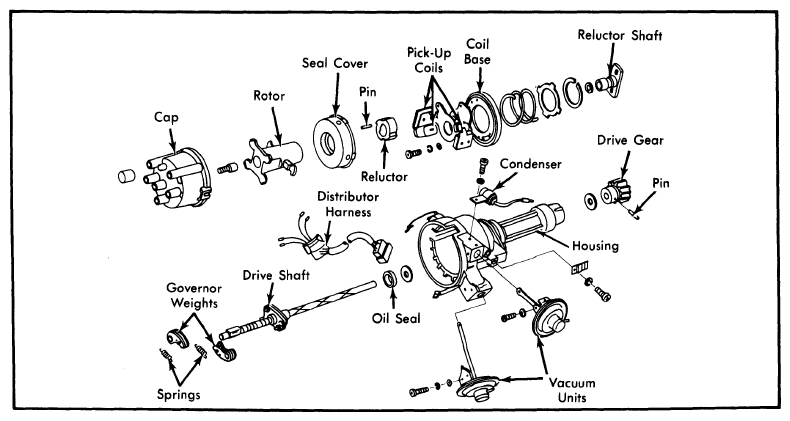

Fig 3: Disassembled View of RX7 Distributor for Overhaul Purposes
Courtesy of NOT AVAILABLE
Quickly operate switch "ON" and "OFF" and make sure test lamp flashes. If not, replace ignitor.
