Starters - HITACHI & MITSUBISHI: Reassembly

To reassemble, reverse disassembly procedure. Fill rear case on reduction gear models with grease. Lightly oil pinion and all bearing surfaces.

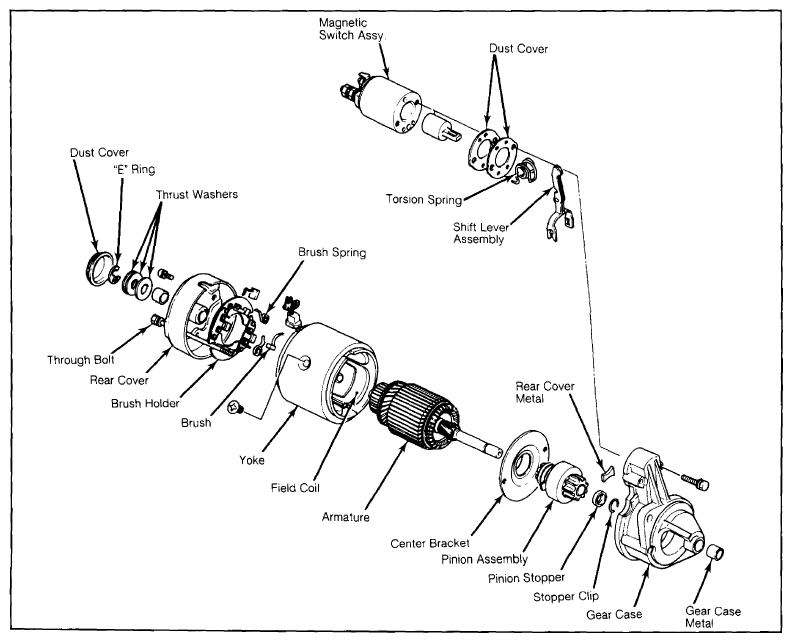

Fig 1: Disassembled View of a Typical Hitachi Conventional Starter

Courtesy of NOT AVAILABLE

Starter illustrated is for Datsun/Nissan Pickups with gasoline engine.

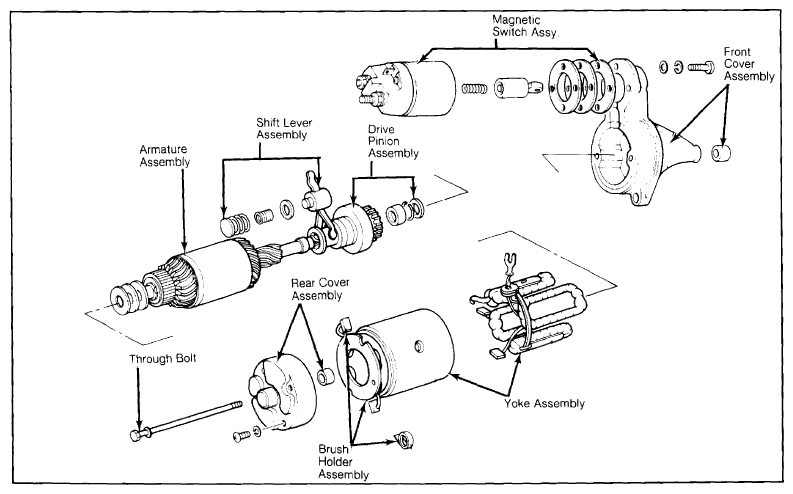

Fig 2: Disassembled View of Typical Hitachi Reduction Gear Starter

Courtesy of NOT AVAILABLE

Starter illustrated is for Datsun/Nissan Maxima with gasoline engine.

Fig 3: Disassembled View of Typical Mitsubishi Conventional Starter

Courtesy of NOT AVAILABLE

Starter illustrated is for Mazda B2200 Diesel Pickup.
