Fuse Panel Location

Main fuse block is located in engine compartment and contains high amperage fuses which protect multiple circuits. Fuse box, located near driver's left knee and accessible through a removable cover, contains fuses for individual circuits.

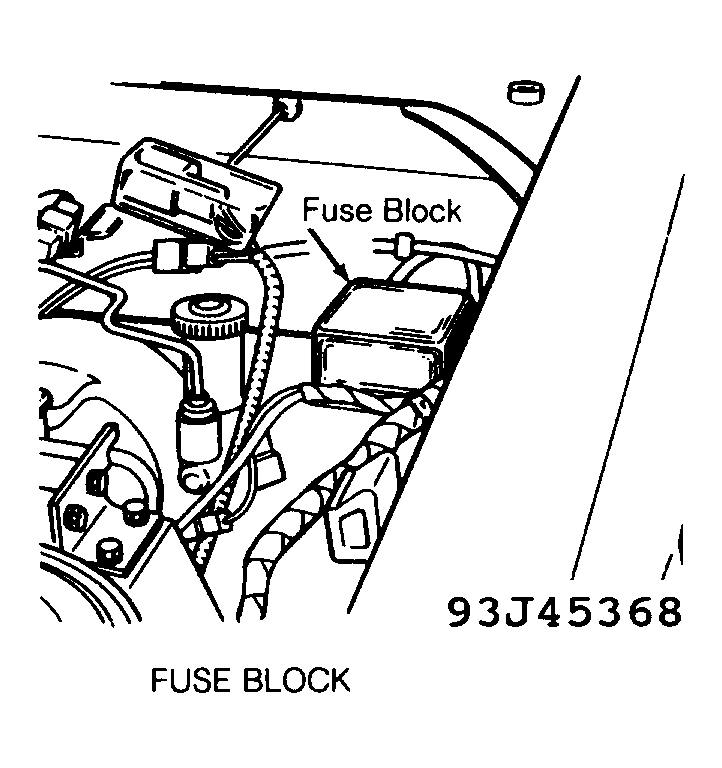

Fig 1: Main Underhood Fuse Block Location

Courtesy of MAZDA MOTOR OF AMERICA, INC.

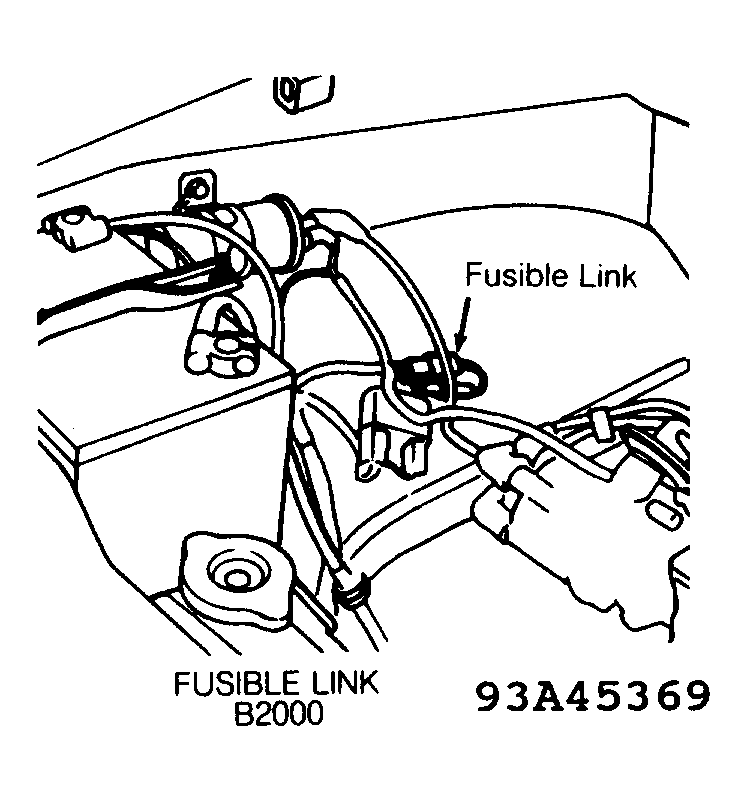

Fig 2: Fusible Link Location (B2000)

Courtesy of MAZDA MOTOR OF AMERICA, INC.

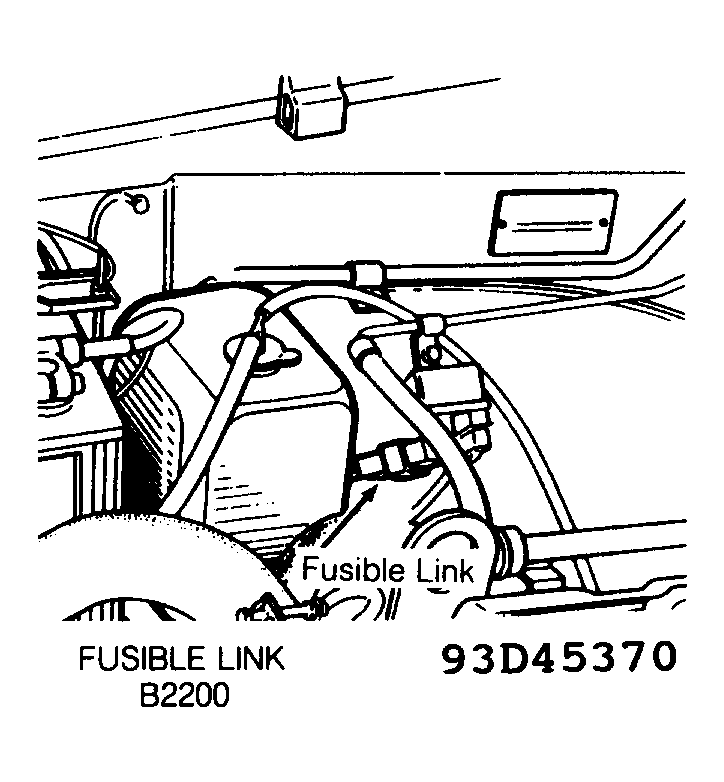

Fig 3: Fusible Link Location (B2200)

Courtesy of MAZDA MOTOR OF AMERICA, INC.
