RX7 & 626
- Caster and camber angles are adjusted together by changing position of strut support. Remove 4 nuts attaching strut support to fender apron.

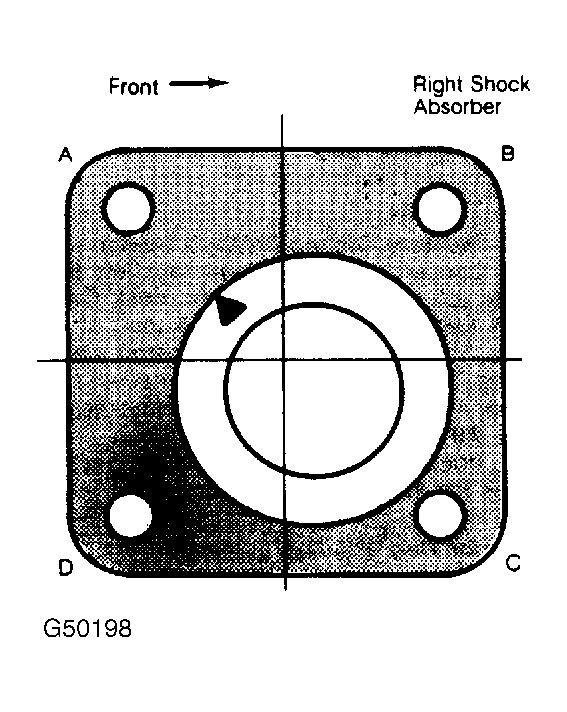

- Raise front of vehicle and support with jack stands. Press strut downward and change position of support according to MACPHERSON STRUT SUPPORT and Fig 1 .
- Tighten strut support mounting nuts. Lower vehicle and recheck caster and camber.
MACPHERSON STRUT SUPPORT
| Strut Position | Caster | Camber |
|---|---|---|
| A 0° | 0° | 0° |
| B 90° | 1/2° | 0° |
| C 180° | 1/2° | 1/2° |
| D 270° | 0° | 1/2° |
