Cold Start Speed

Adjust knob while advance lever is pushed up to level where it touches stopper. Connect an engine tachometer. Set knob to fully pulled position, Turn adjusting screw until engine RPM is set to specification.

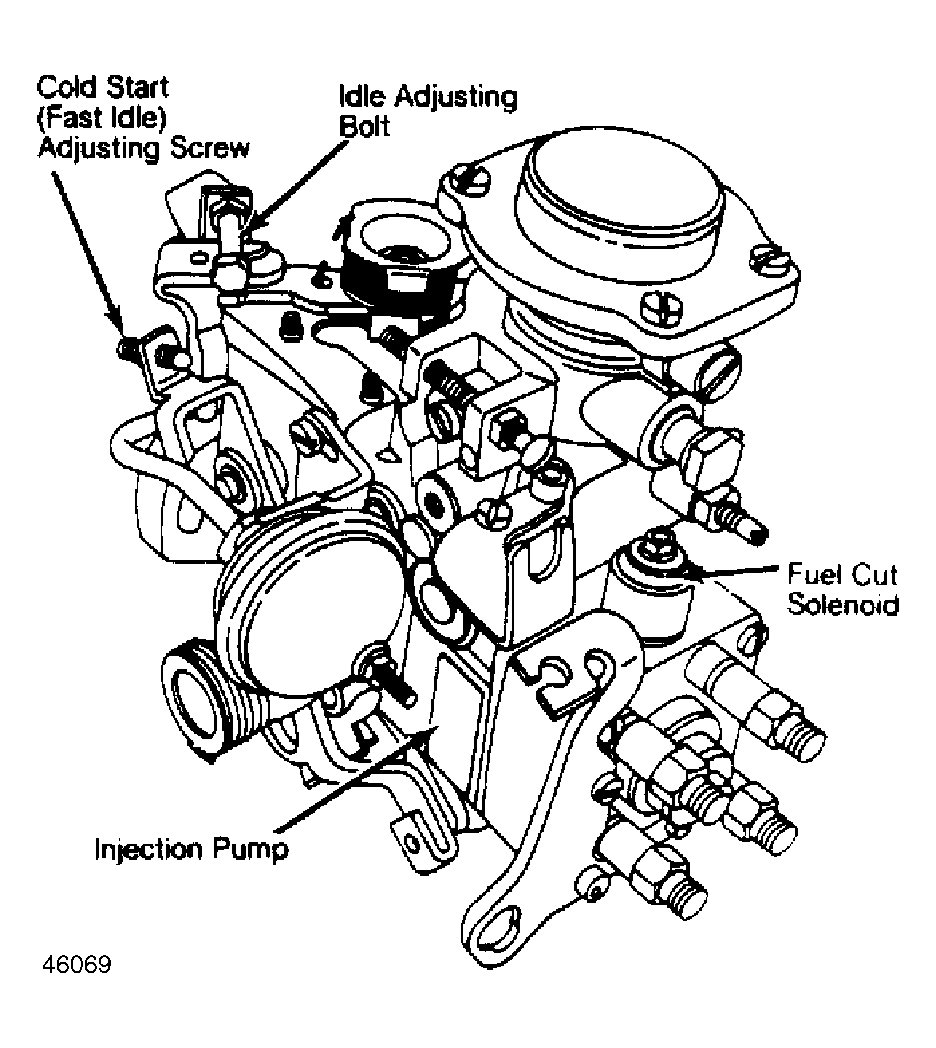

Fig 1: B2200 Diesel Fuel Injection Pump
