Carburetor - HITACHI 2-Bbl: Overhaul: Reassembly

To reassemble, reverse the disassembly procedure using all new gaskets, taking care not to mistake primary and secondary barrel parts.

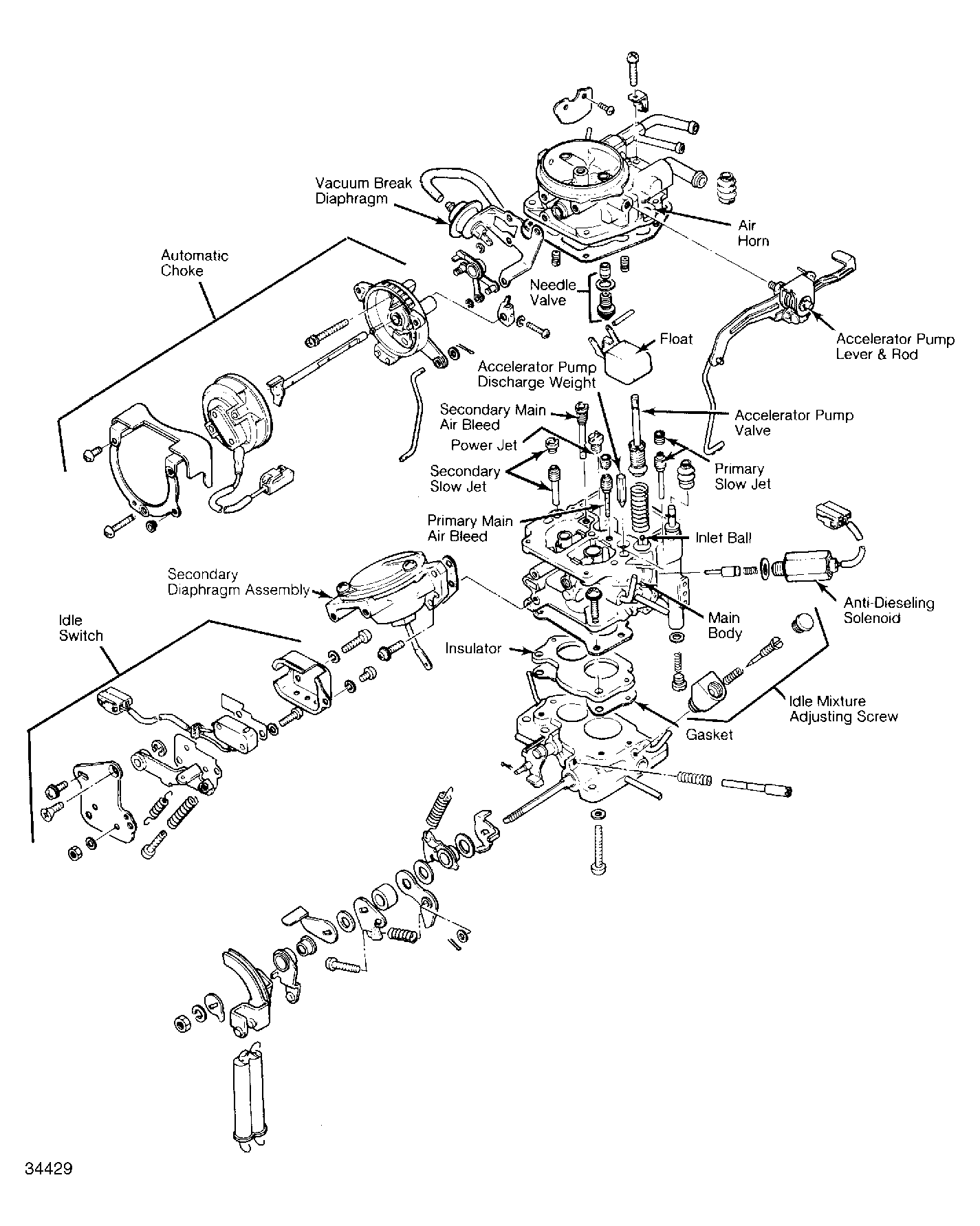

Fig 1: Exploded View of Mazda GLC Carburetor
