Feedback Carburetor System
›
Wiring Diagrams
Wiring Diagrams

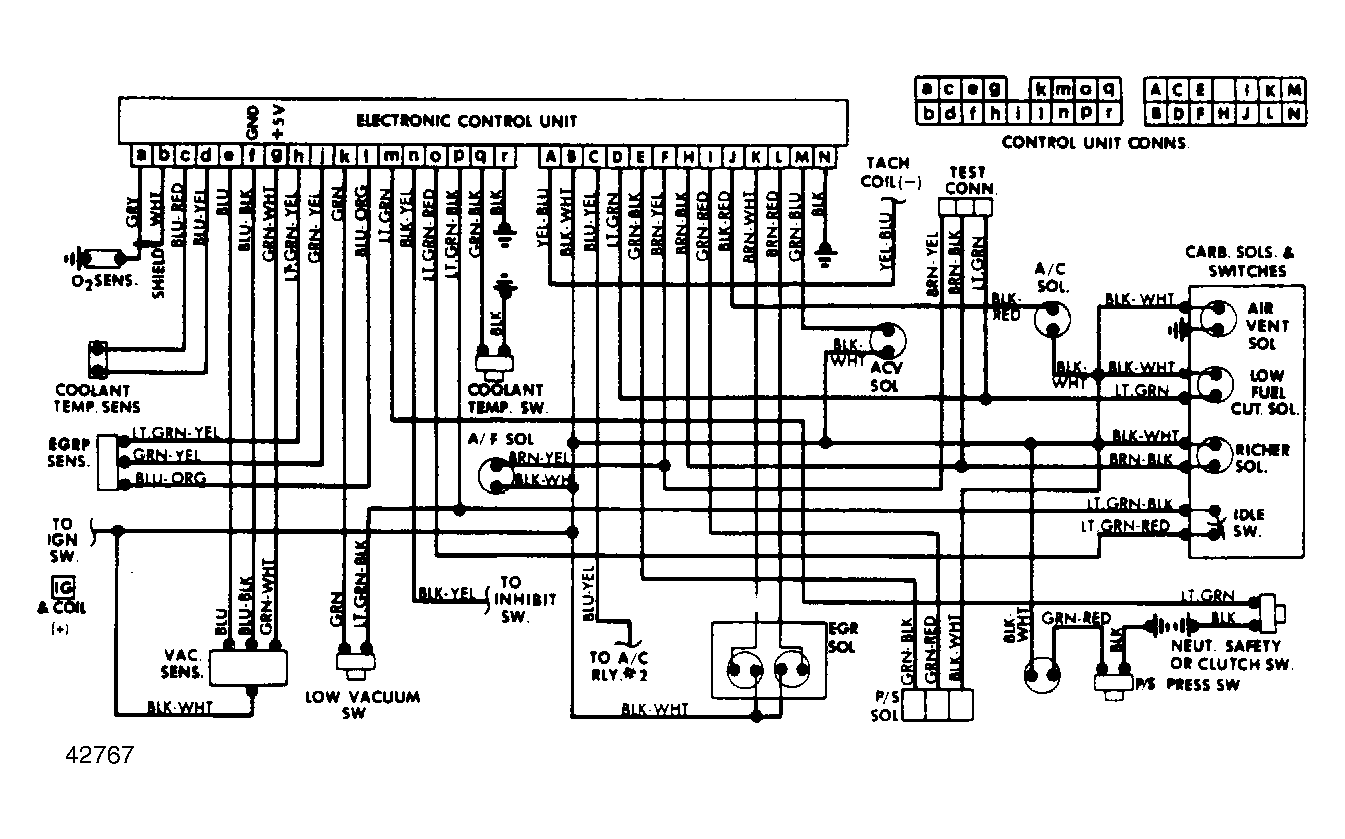

Fig 1: Computerized Engine Control Wiring Diagram
