Three-Way Solenoid Valve: Non-Turbo

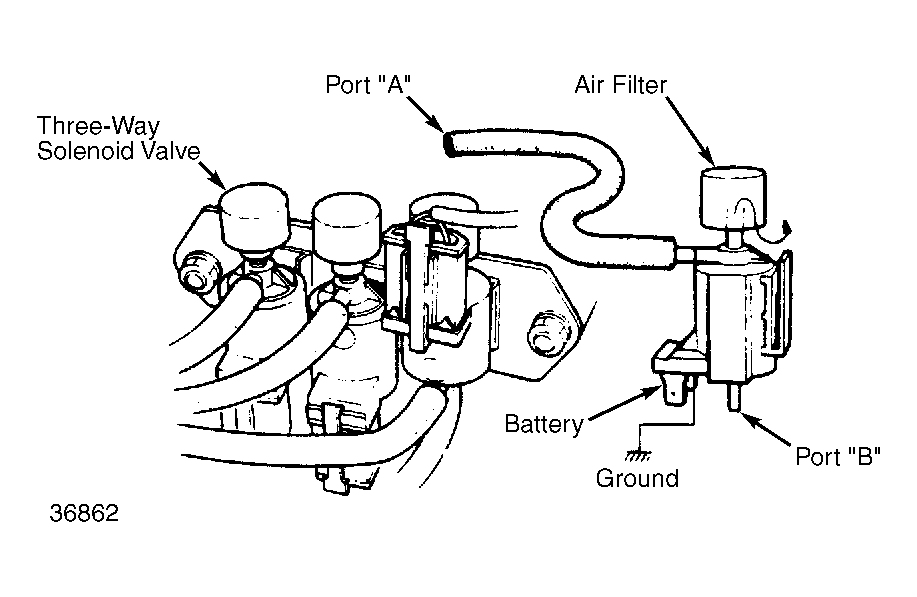

Remove vacuum hoses and electrical connector. Remove three-way solenoid valve. See Fig 1 . Blow air through port A and ensure air passes out port B. Apply battery power and ground to connector. Blow air through port A and ensure air passes out air filter. Replace three-way solenoid valve if defective.
