Electrical Component Locator
›
Control Units
Control Units

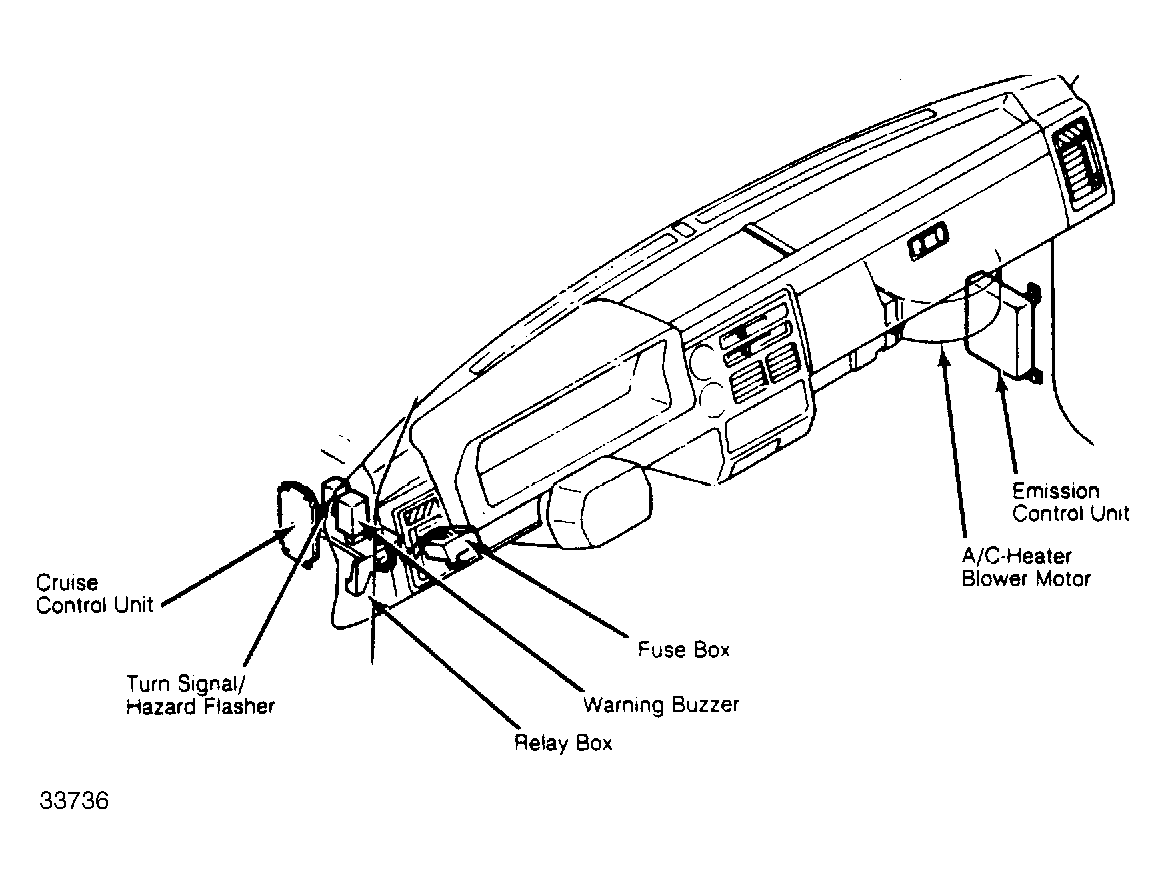

CONTROL UNITS LOCATION
Component
Location
Cruise Control Unit
Behind left side of dash, near relay box. See
Figure
.
Emission Control Unit
Behind right kick panel. See
Figure
.
Turn Signal/Hazard Flasher
Under left side of dash, on relay box. See
Figure
.
