Terminal Location Of Control Unit

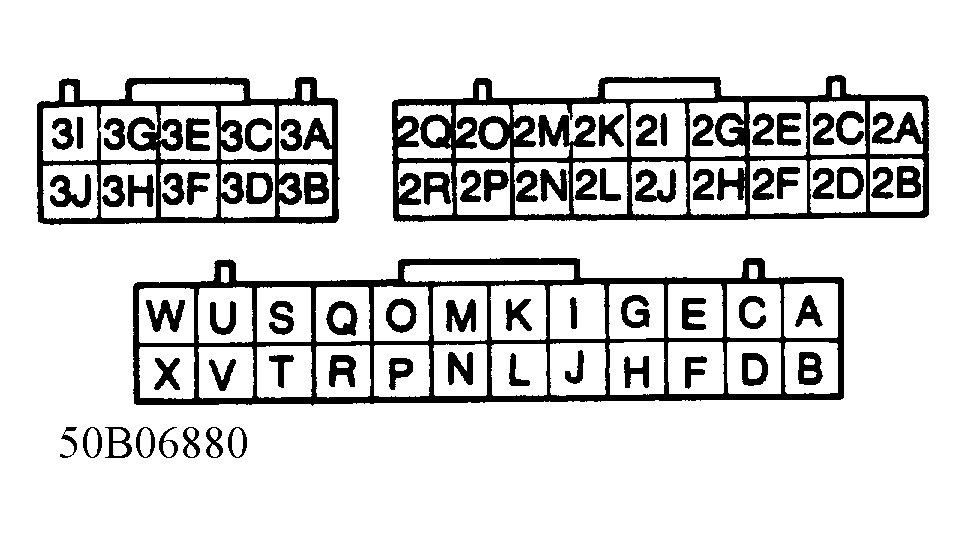

Fig 1: Terminal Location of Control Unit Unit is Located Under Right Side of Dashboard
G50B06880
DIGITAL CODE CHECKER GREEN LAMP FUNCTIONS

Green Lamp Mode Air-Fuel Ratio
On Too Rich
Off Too Lean
Flashing Best
