ACV Solenoid Valve (B2200): Valve

1. Remove ACV solenoid valve. See Fig 1 . Connect hoses to valve. Blow air through hose A and check that air comes out of valve air filter. Apply battery power and ground to valve with jumper wires. Blow air through hose A and check that air comes out of port B. See Fig 2 . If ACV solenoid valve does not operate properly, replace it.

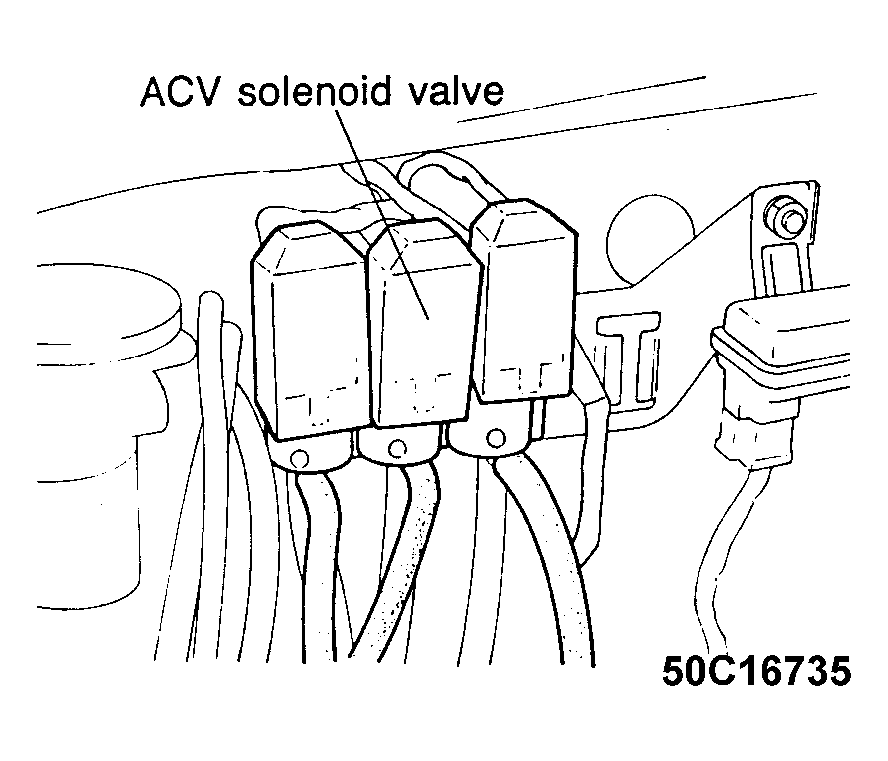

Fig 1: ACV Solenoid Valve Component Location (B2200)

Courtesy of MAZDA MOTORS CORP.

Fig 2: ACV Valve Test Location (B2200)

Courtesy of MAZDA MOTORS CORP.
