2.2L Feedback Carburetor System
›
Testing Trouble Codes
›
Code 13 - Vacuum Sensor
Code 13 - Vacuum Sensor

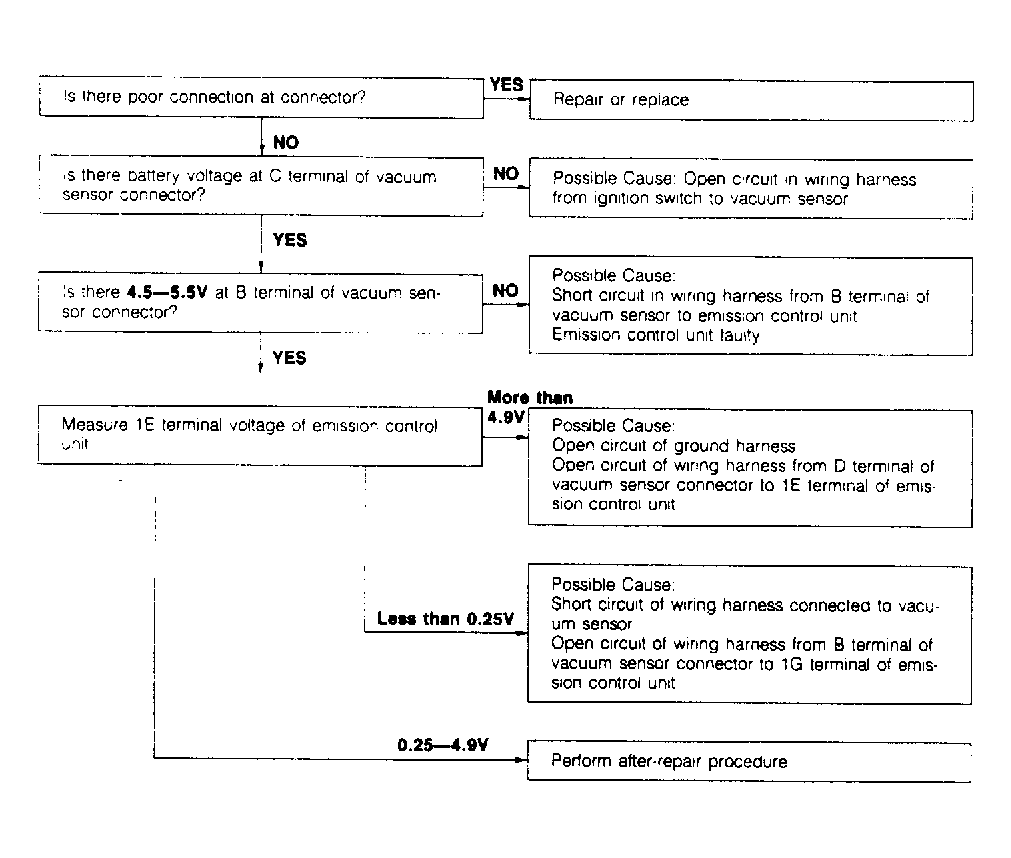

Fig 1: Code 13, Vacuum Sensor
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
