2.2L Feedback Carburetor System
›
Testing Trouble Codes
›
Code 16 - EGR Position Sensor
Code 16 - EGR Position Sensor

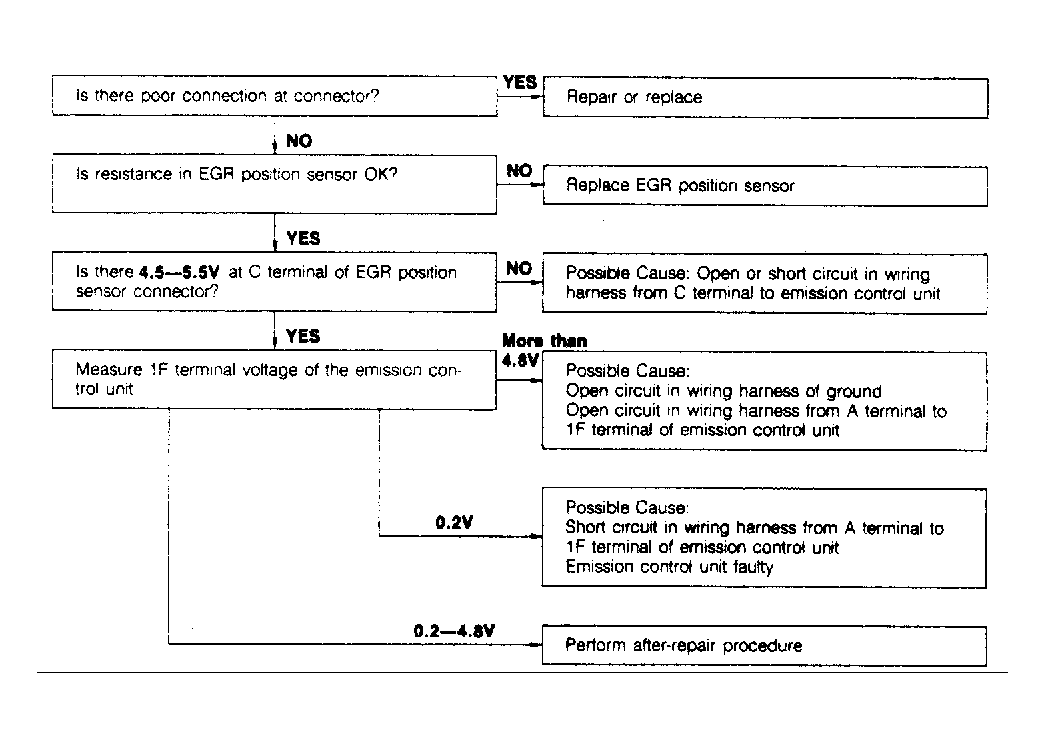

Fig 1: Code 16, EGR Position Sensor
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
