Trouble Code Identification Charts

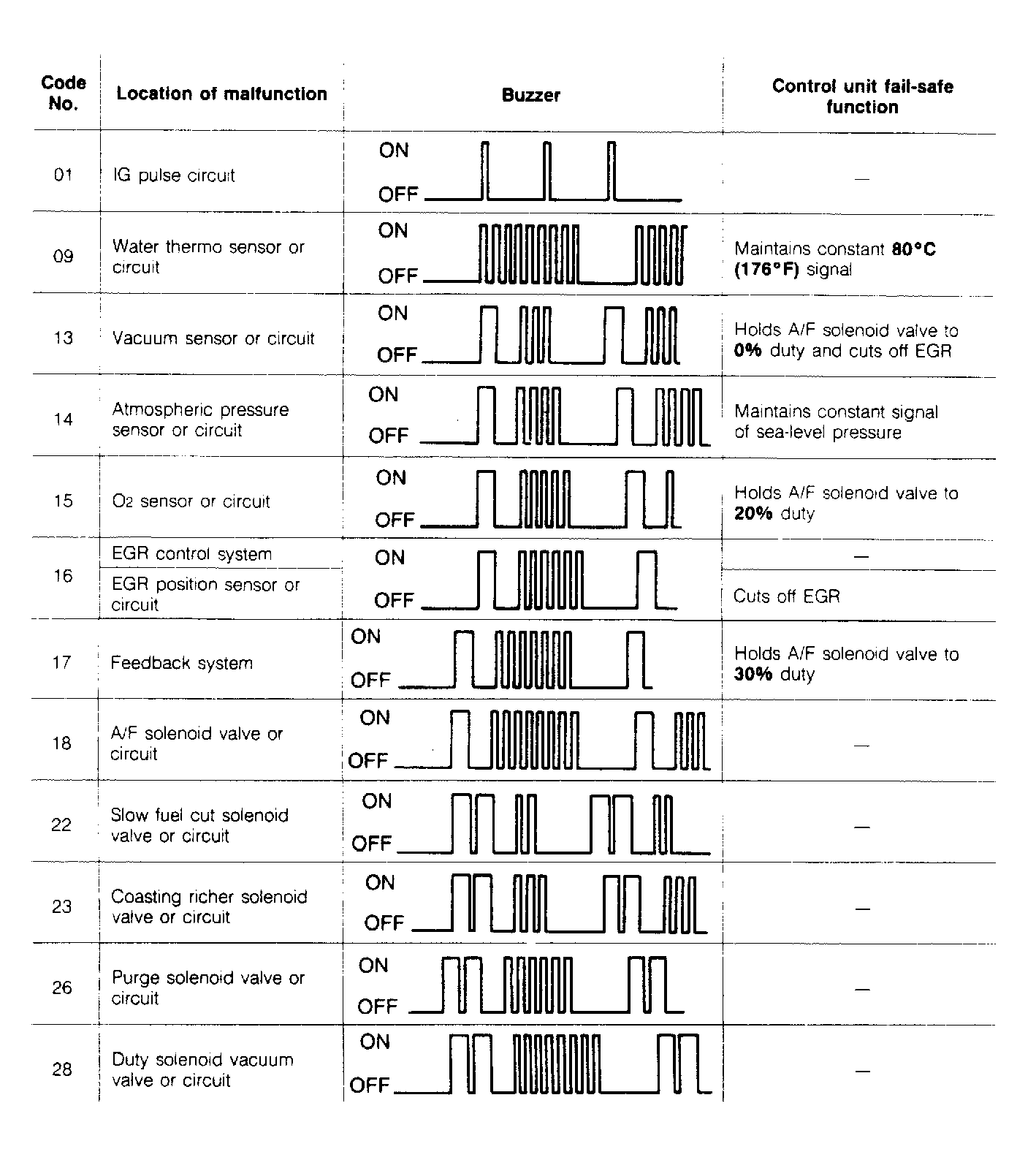

Fig 1: Trouble Code Identification Chart (1 of 2)
Courtesy of MAZDA MOTORS CORP.

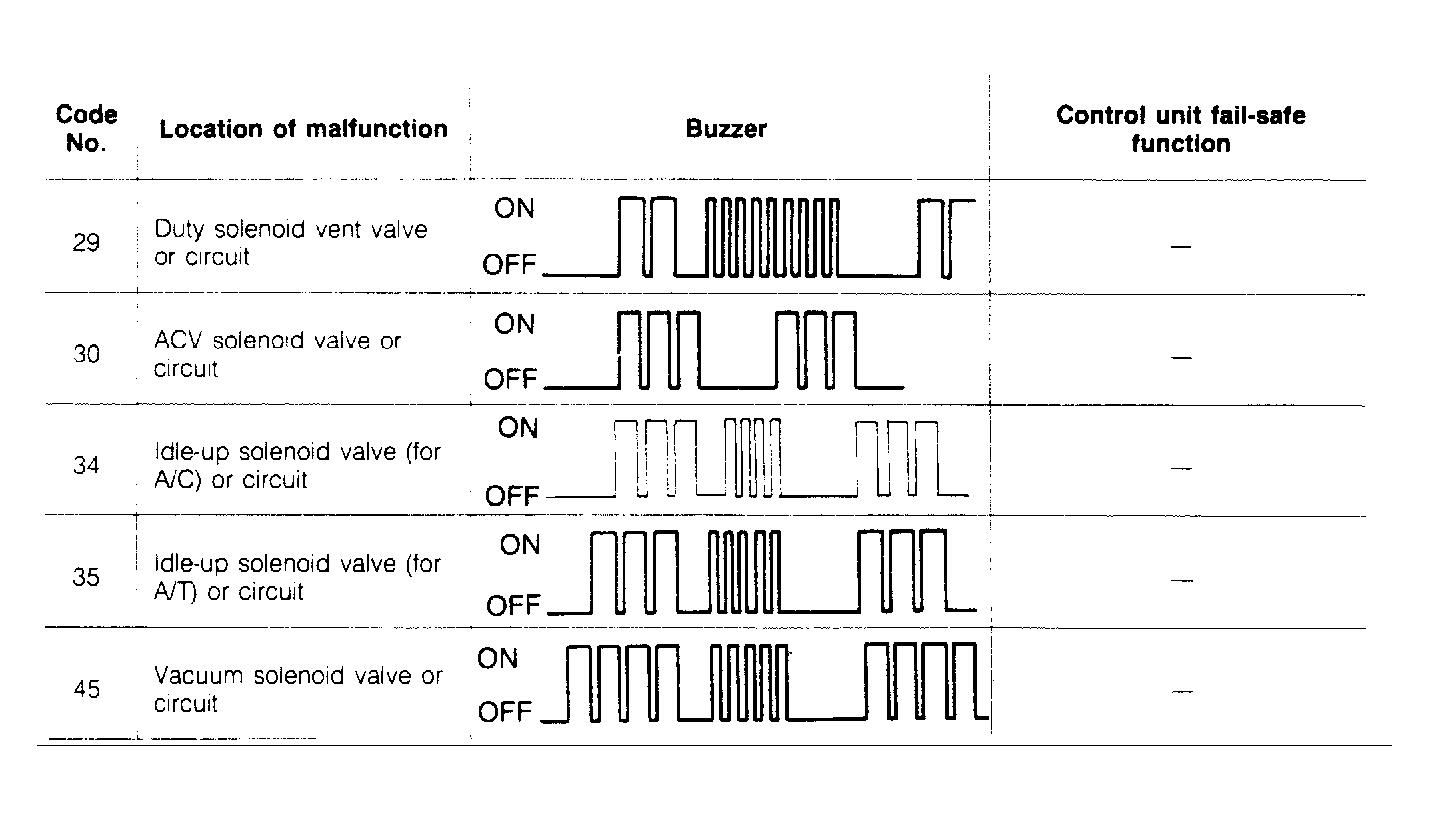

Fig 2: Trouble Code Identification Chart (2 of 2)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
