2.6L Feedback Carburetor System
›
Component Testing & Inspection
›
Component Location
Component Location

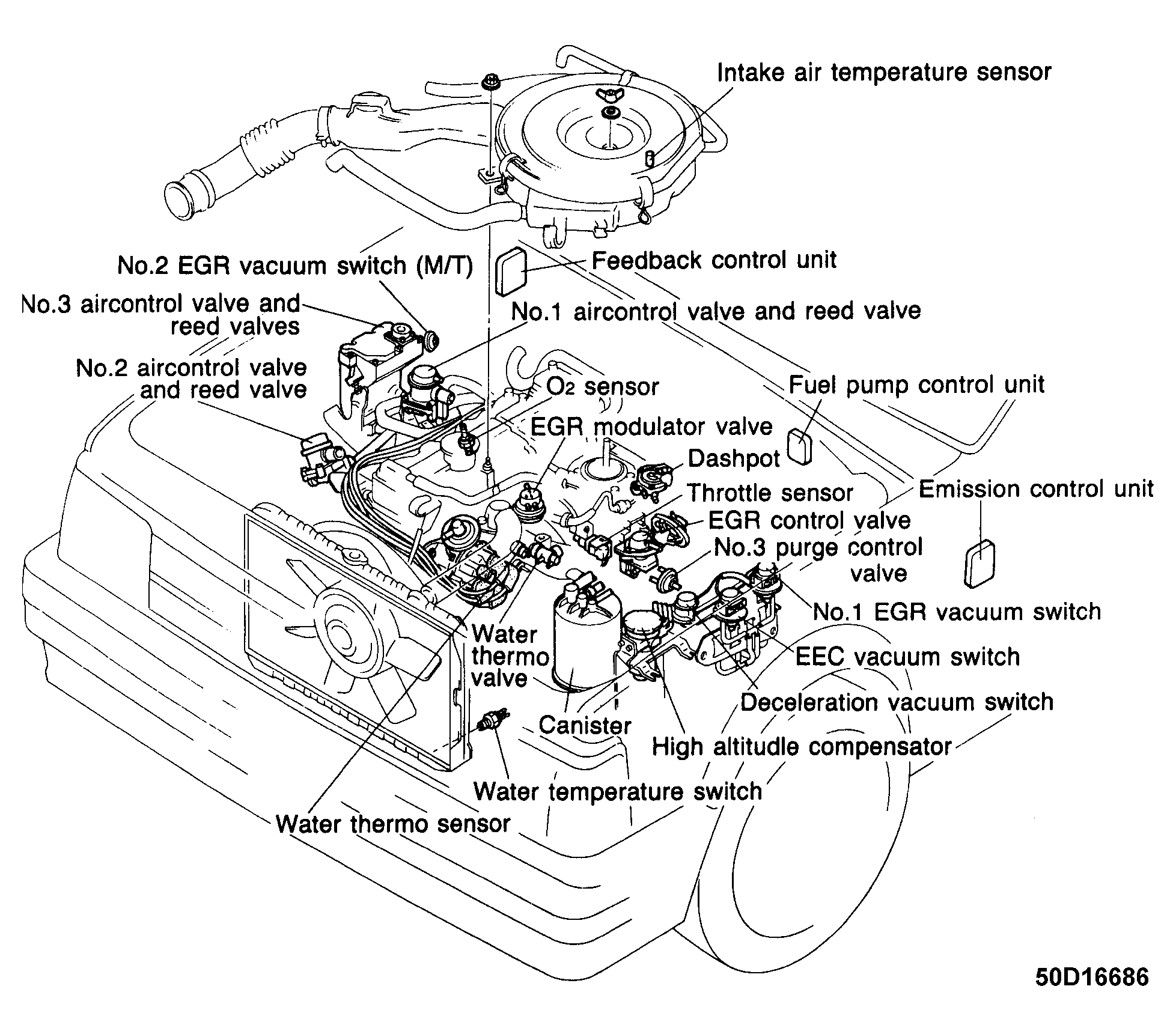

Fig 1: Emission Components Location
Courtesy of MAZDA MOTORS CORP.
