Wiper Switch
Wiper Switch

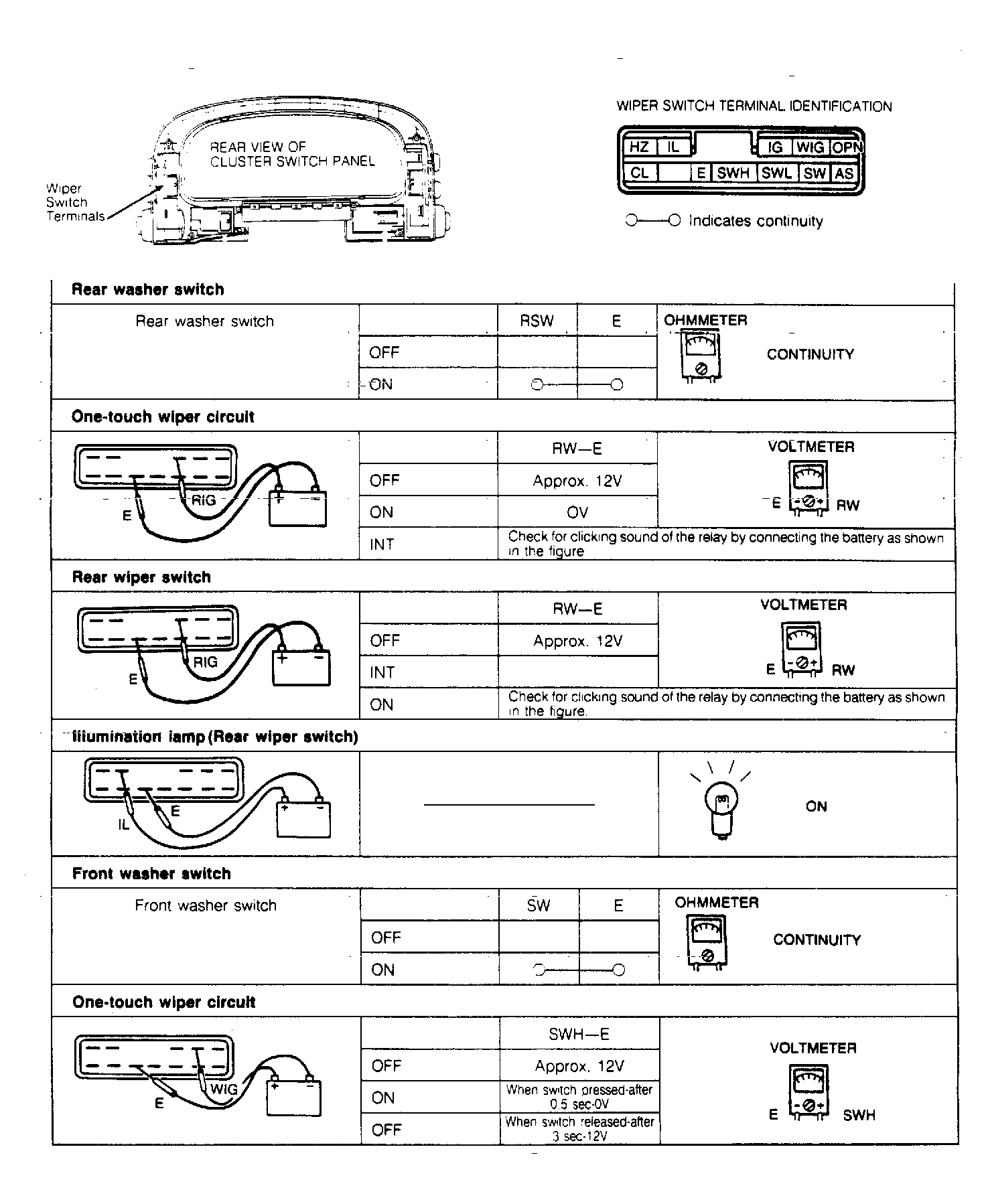

Fig 1: Wiper System Testing Procedures (1 of 2)
Courtesy of MAZDA MOTORS CORP.

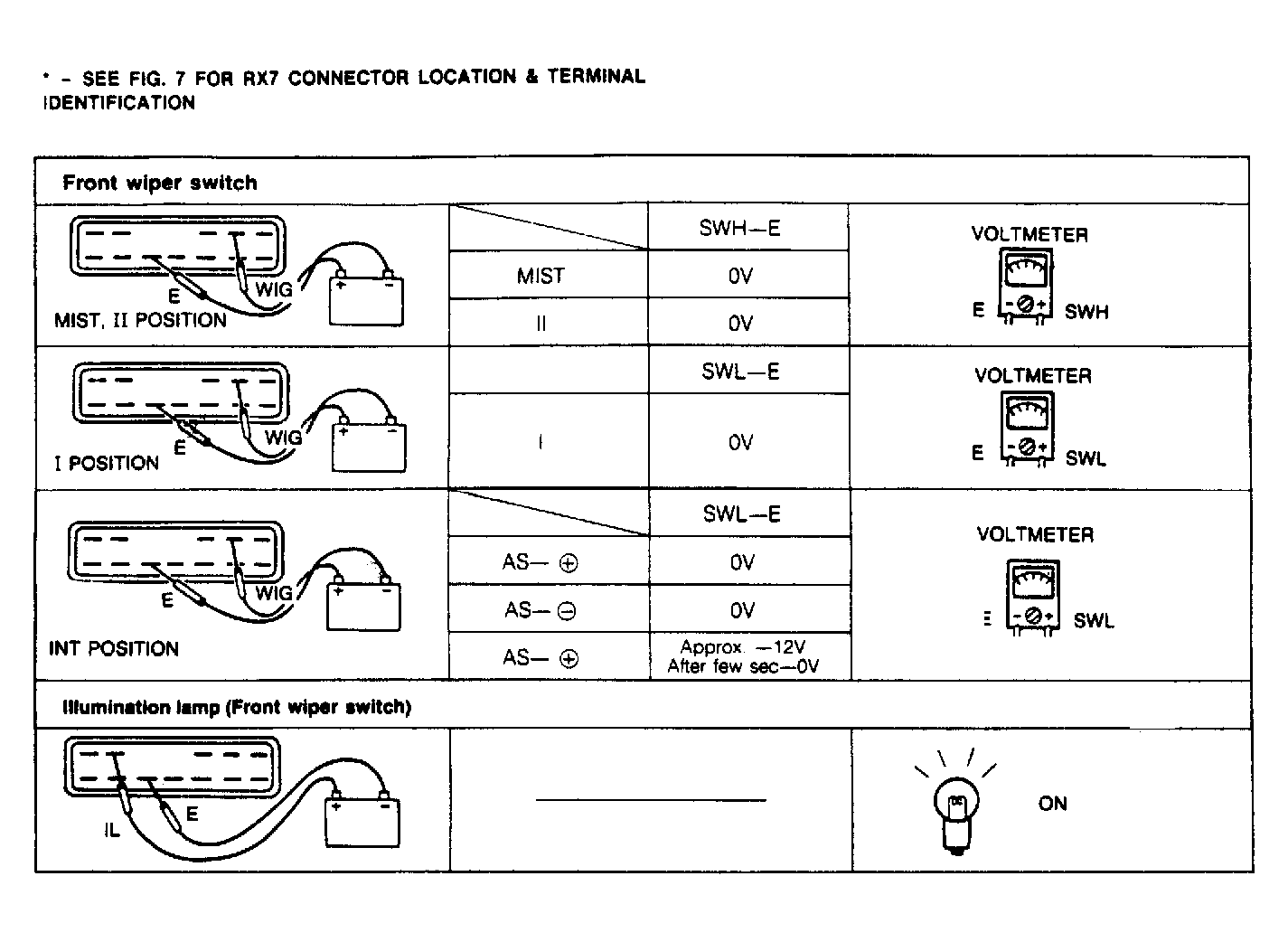

Fig 2: Wiper System Testing Procedures (2 of 2)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
