Wiring Diagrams

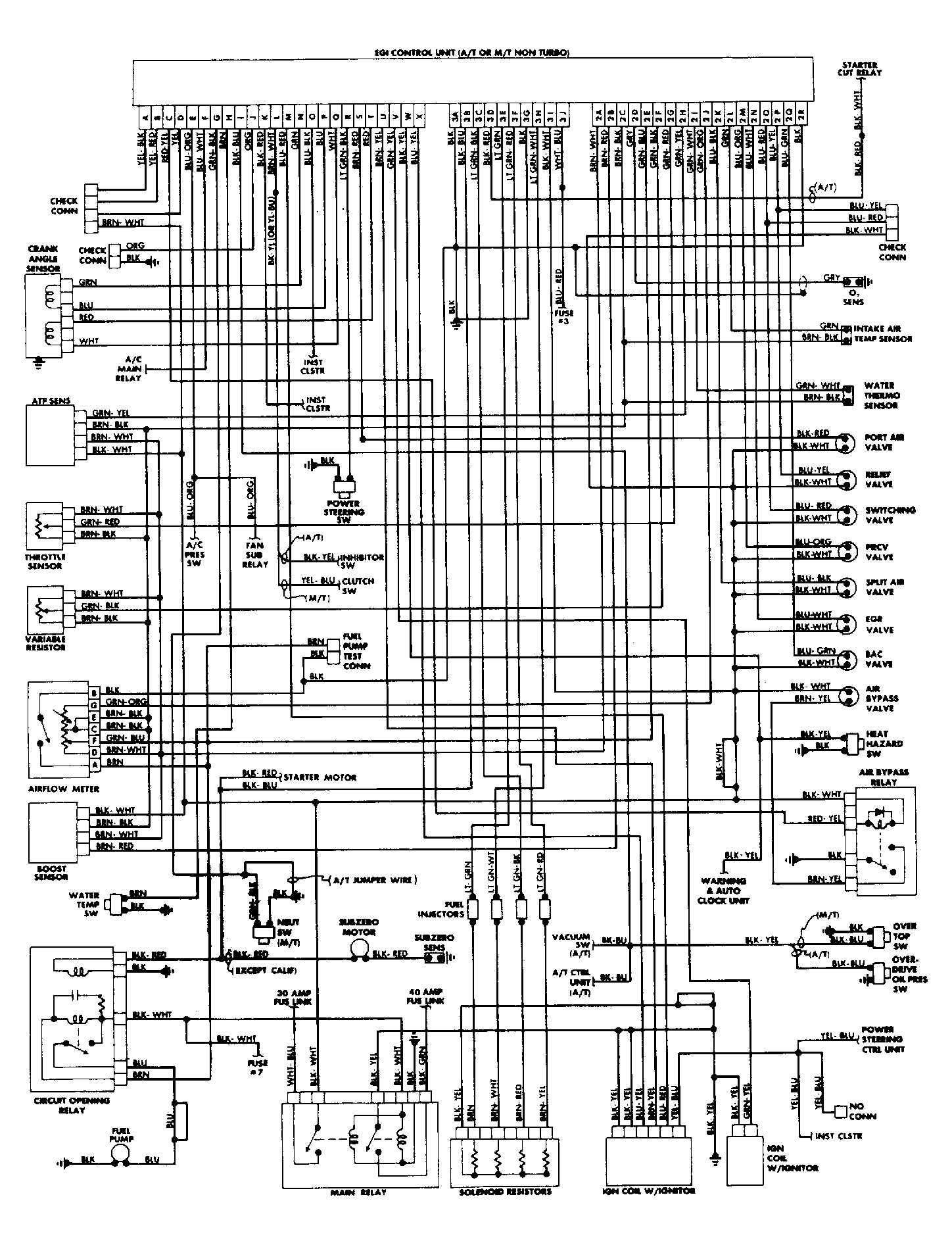

Fig 1: Mazda RX7 Non-Turbo Computer Control System Wiring Diagram

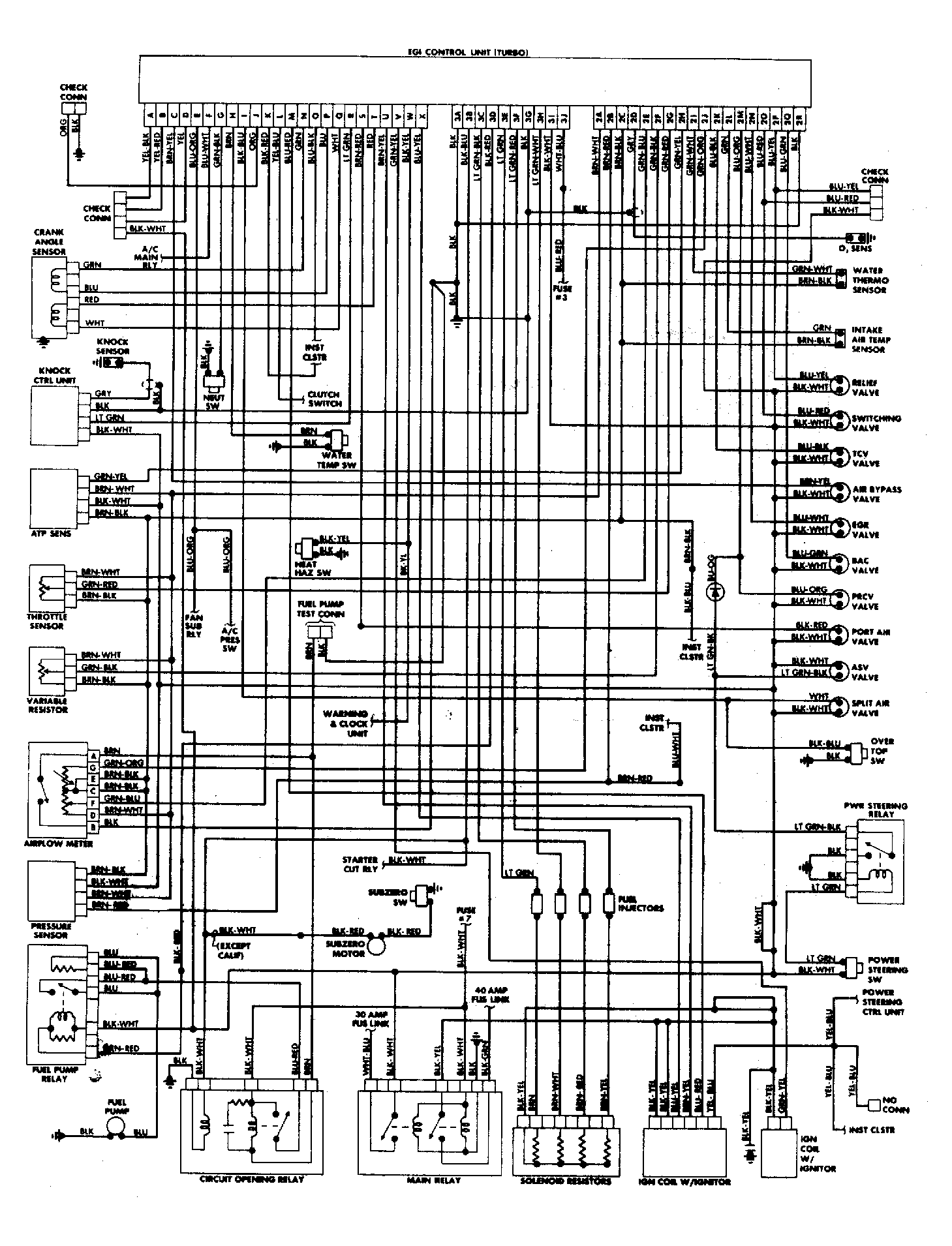

Fig 2: Mazda RX7 Turbo Computer Control System Wiring Diagram
