Wiring Diagrams

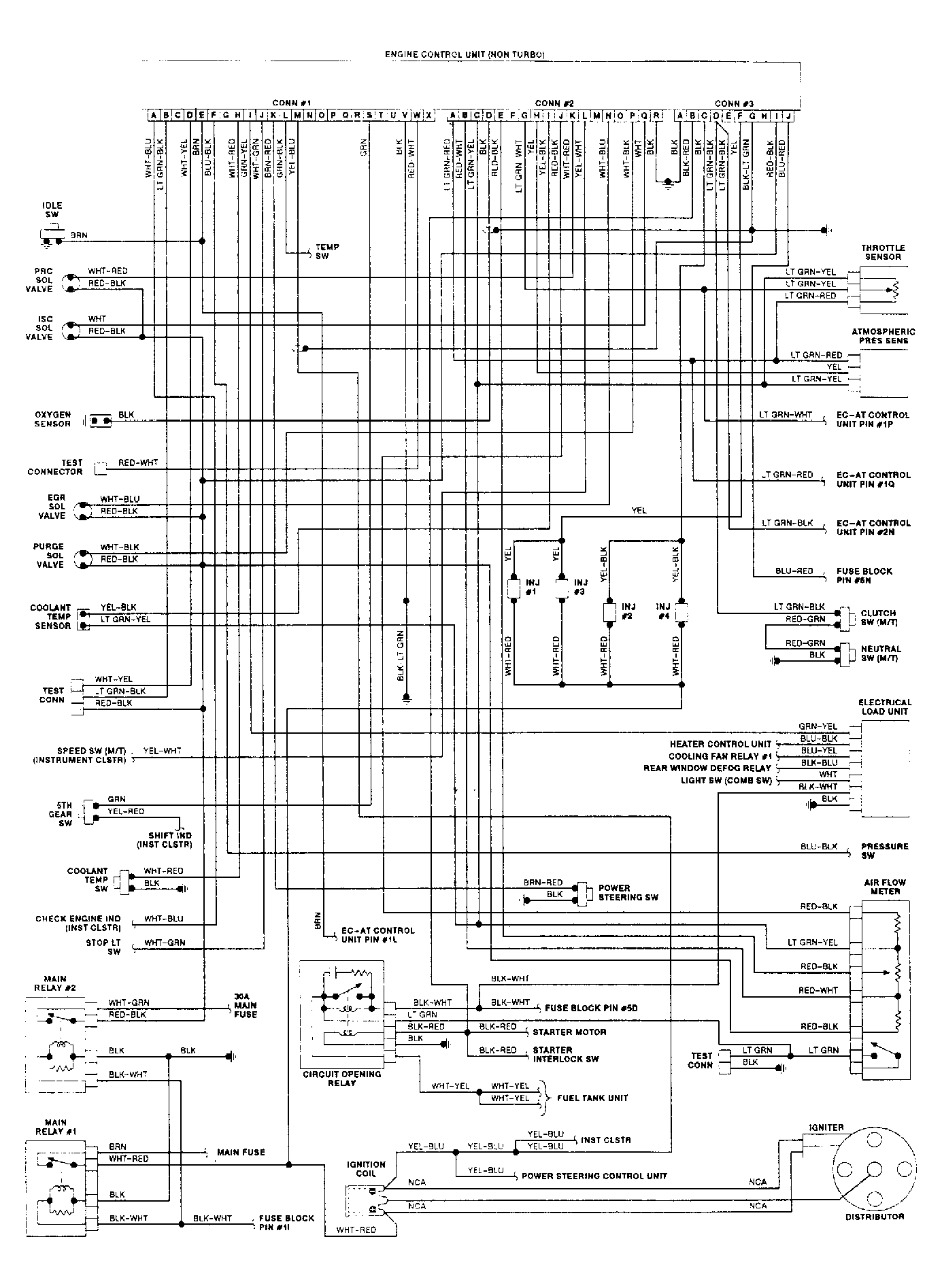

Fig 1: Wiring Diagram for MX-6 & 626 EGI Non-Turbo

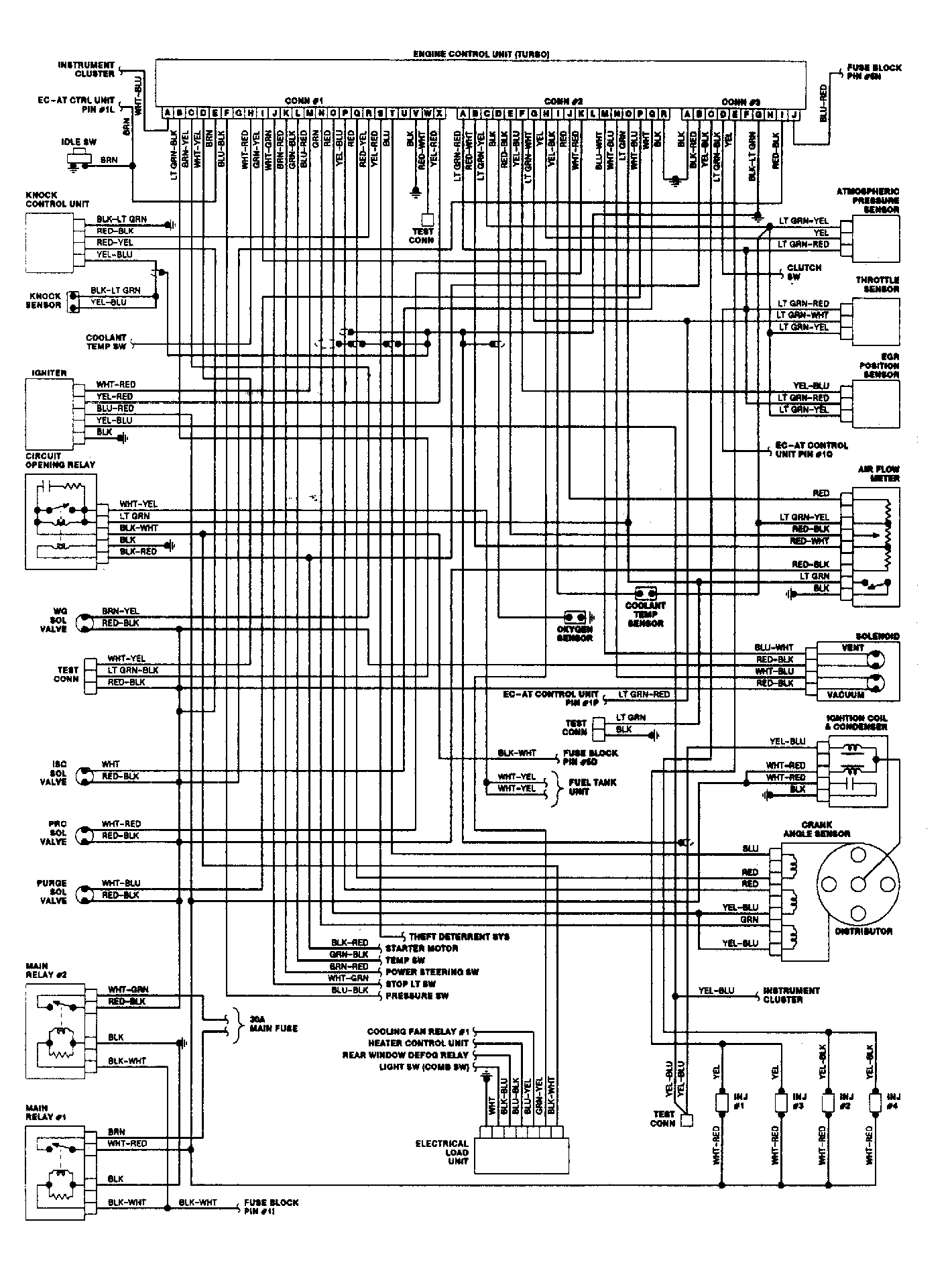

Fig 2: Wiring Diagram for MX-6 & 626 EGI Turbo
