Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION
| Component |
Location |

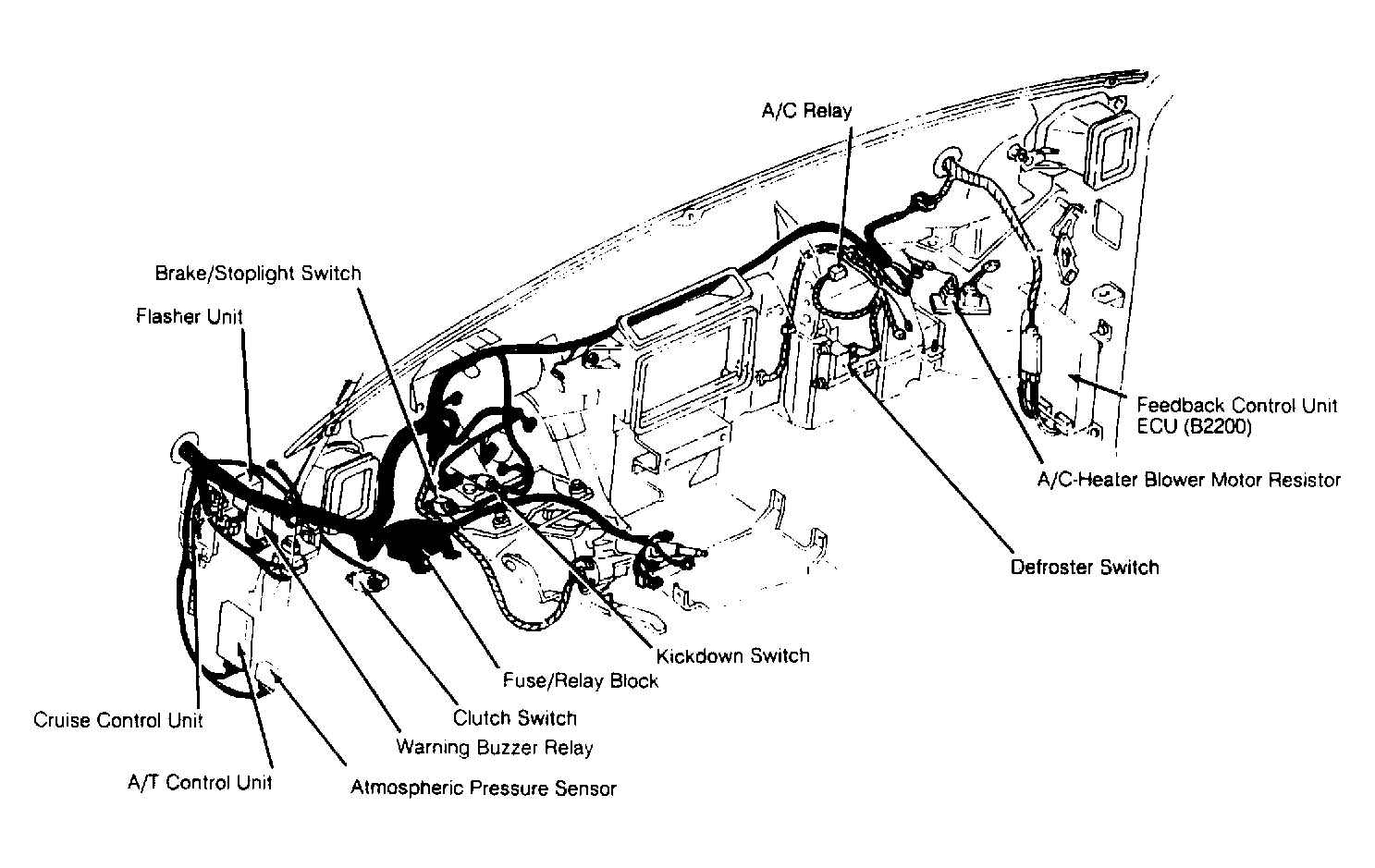

| Fuse/Relay Block |
Under left side of dash, left of steering column. See Figure
. |

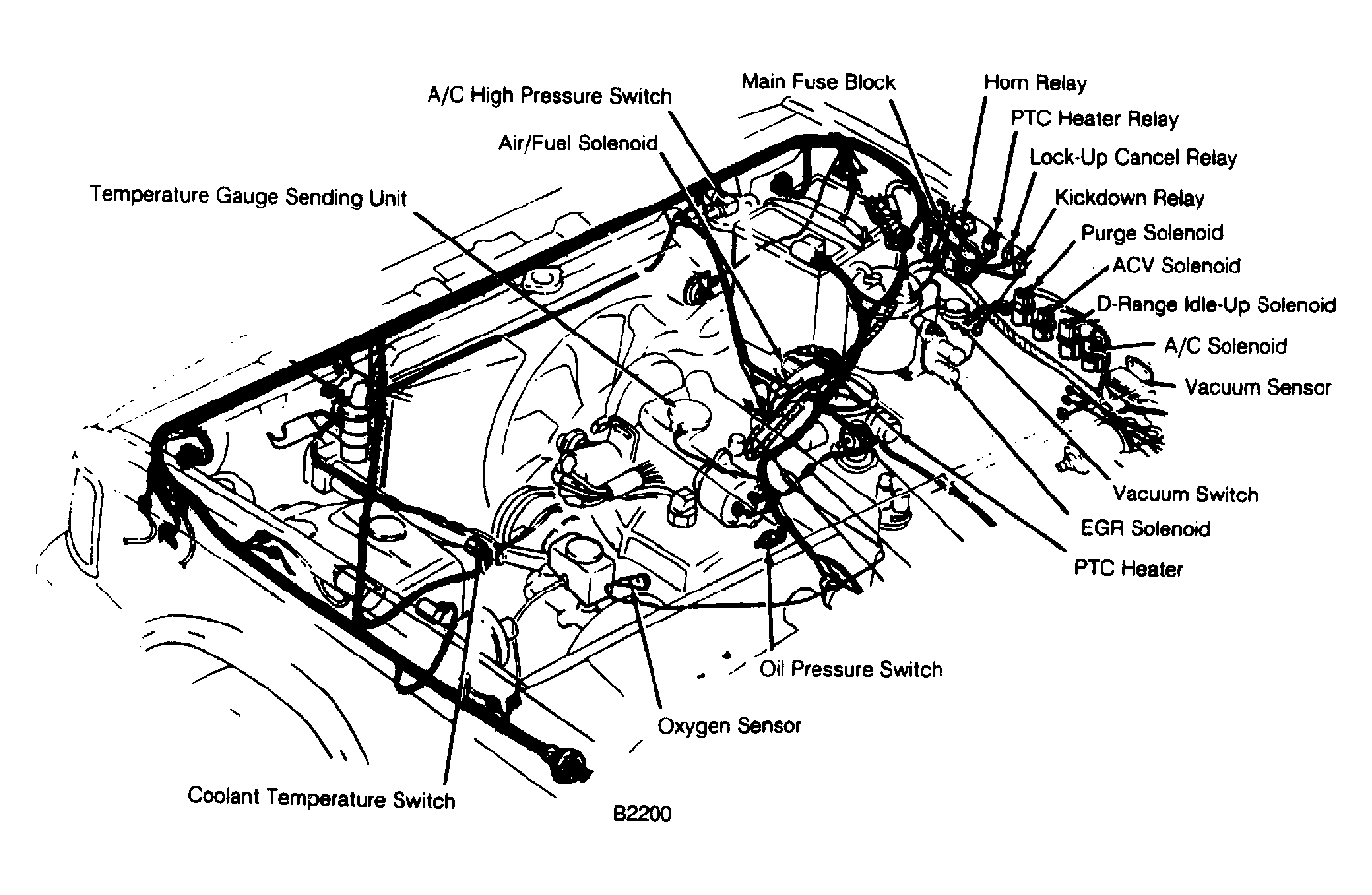

| Main Fuse Block |
| B2200 |
On right front fender apron, near battery. See Figure
. |

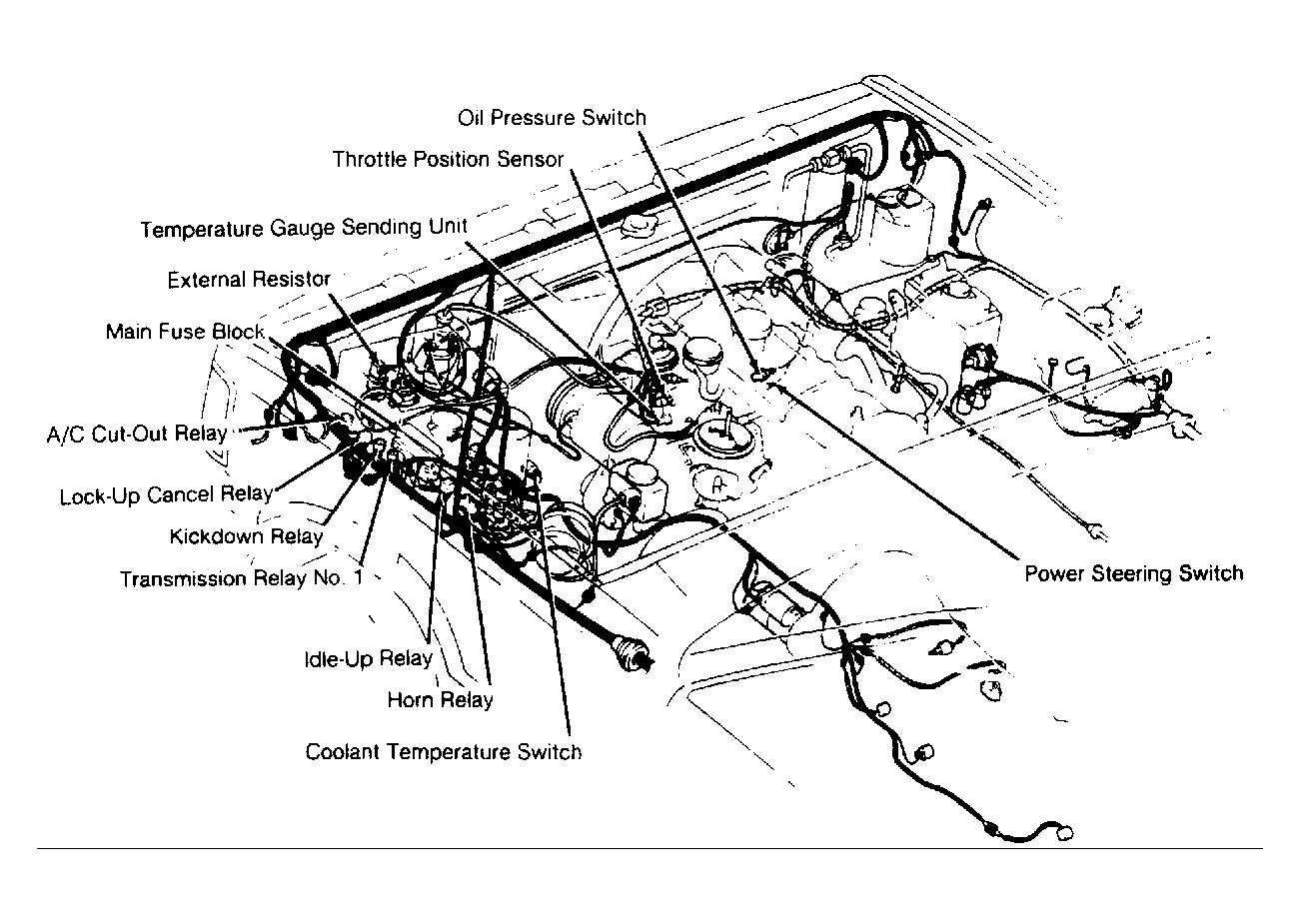

| B2600 |
On left front fender apron. See Figure
. |
