Circuit Protection Devices
Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION
Component
Location

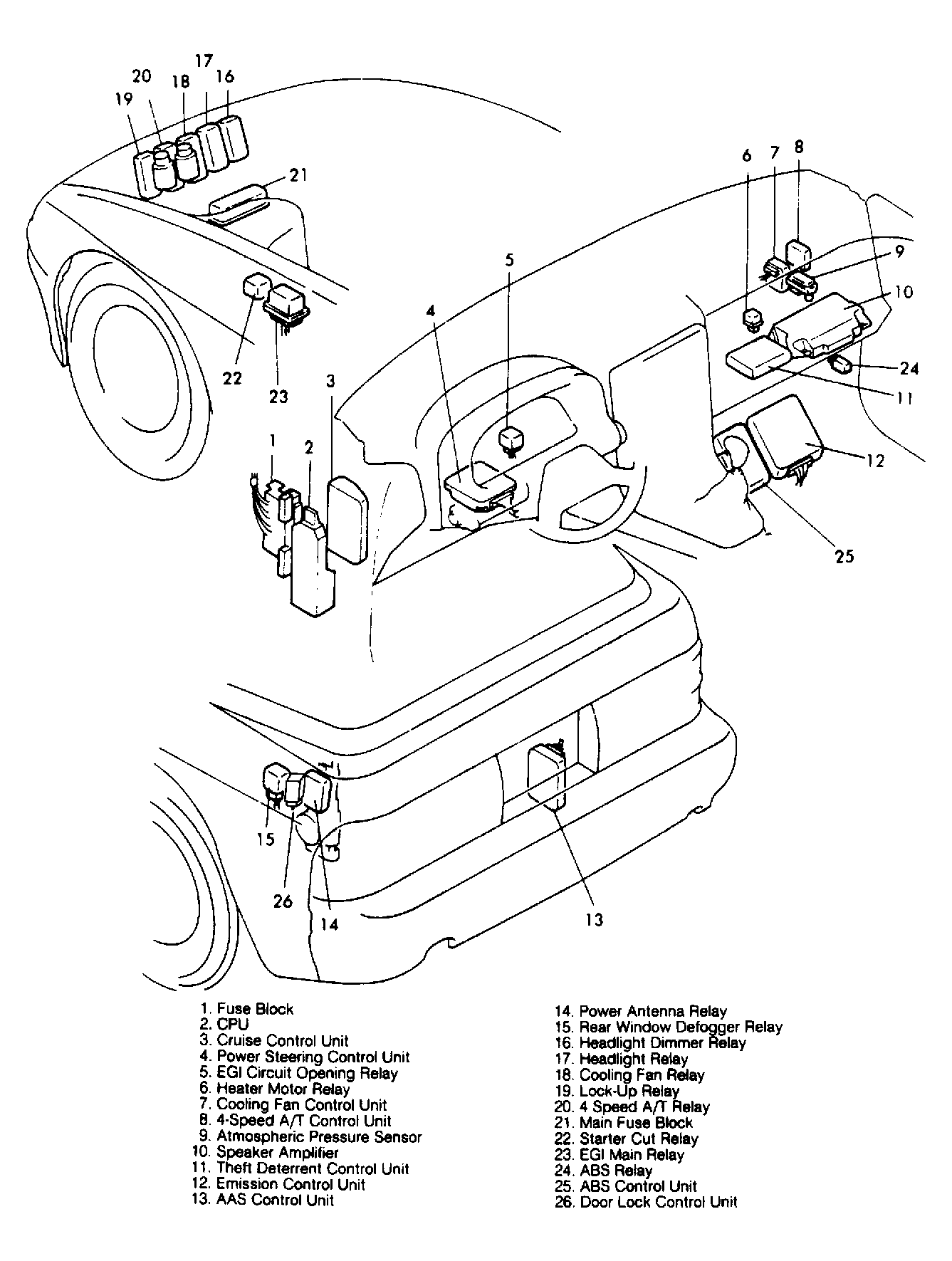

Fuse Block
Behind left front kick panel. See
Figure
.

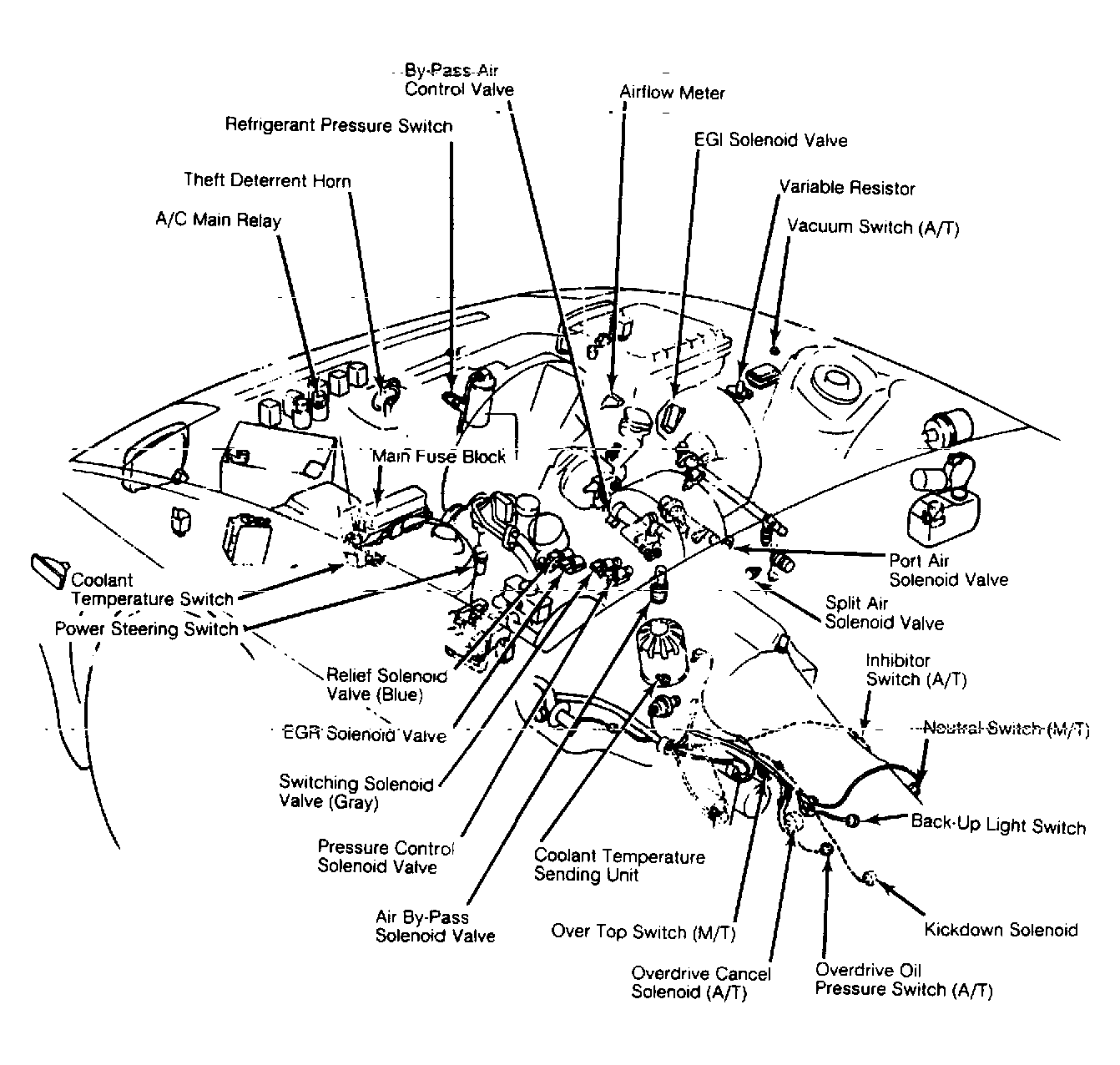

Main Fuse Block
In engine compartment, in front of left shock tower. See
Figure
&
Figure
.
