Distributor Specifications

NOTE: Some models with Turbo engines and all V6 engines use computer controlled ignition advance timing. If ignition advance problems are present, see DIAGNOSIS and SELF-DIAGNOSIS information in this section.

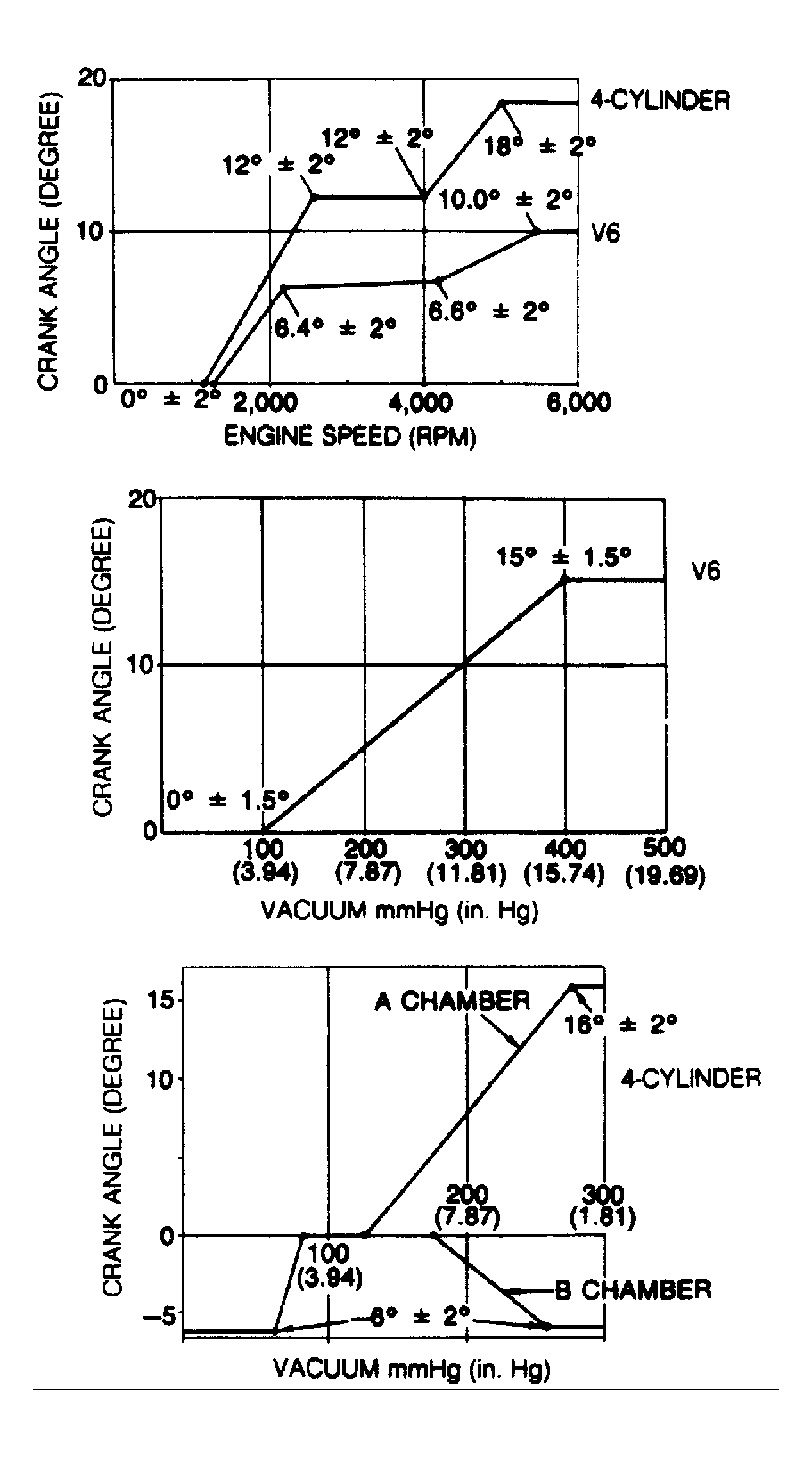

Fig 1: MPV Ignition Advance Curve

Courtesy of MAZDA MOTORS CORP.
