System/Component Tests - CARBURETED
›
Introduction
›
Component Location
Component Location

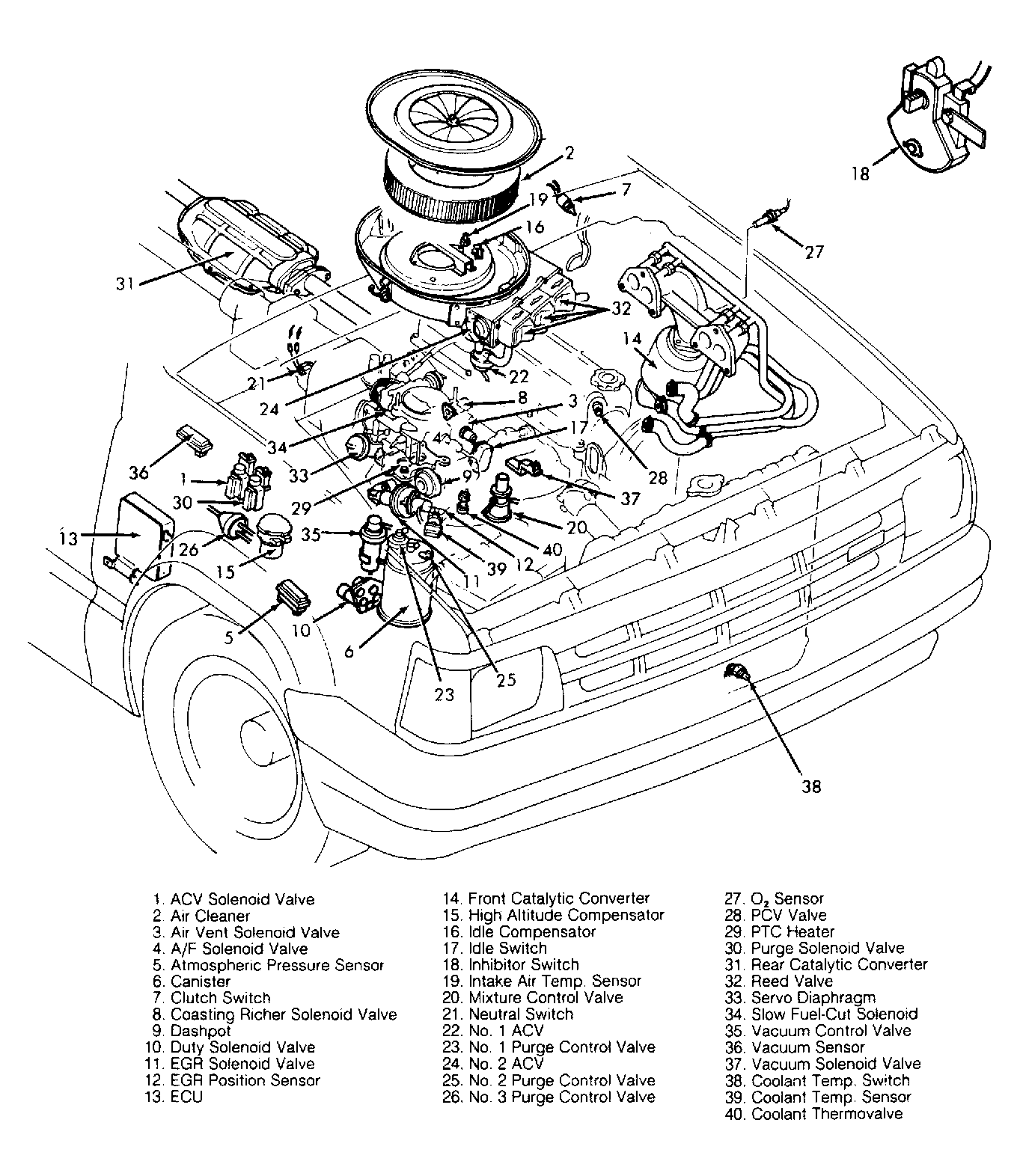

Fig 1: Component Location
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
