Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION
| Component | Location |
|---|---|
| A/C Fuse | At rear of right fender apron, on A/C relay bracket. See Figure & Figure . |

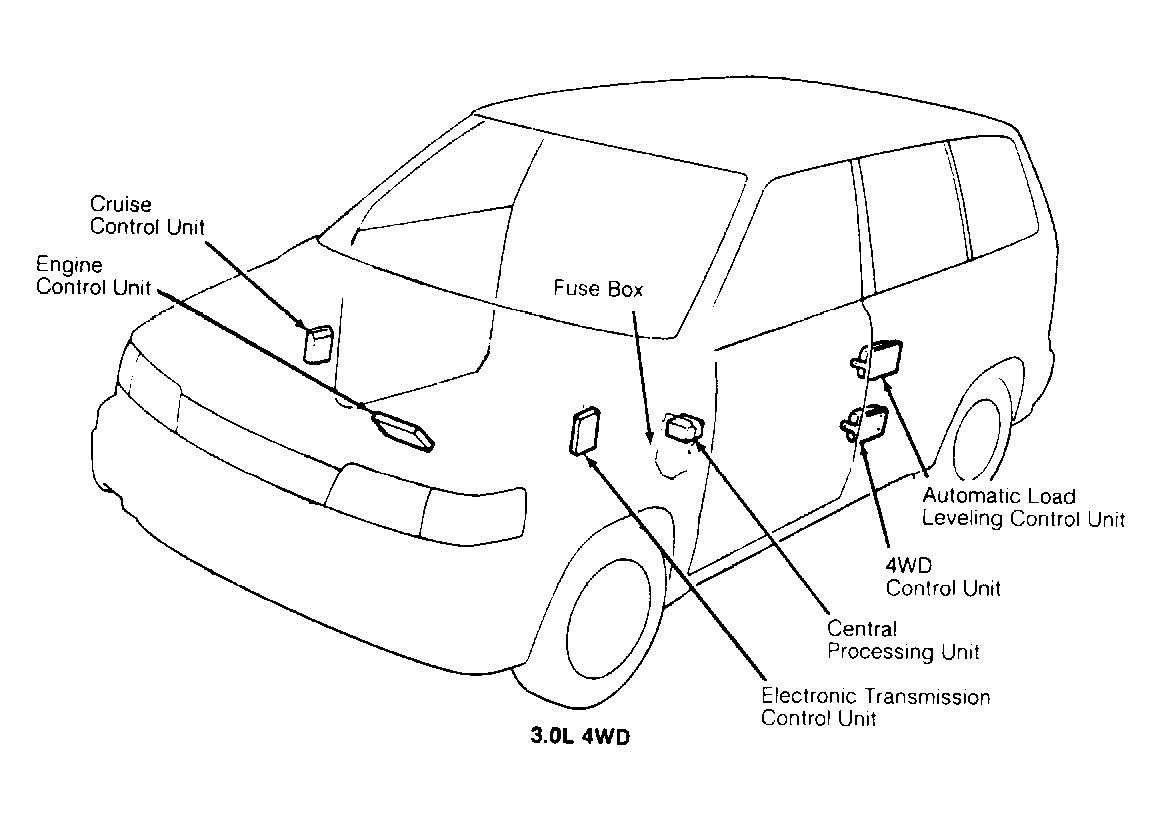

| Fuse Box | Above left front kick panel, near CPU. See Figure . |
| Main Fuse Box | At rear of right fender apron. See Figure & Figure . |
| Relay Box | At left front fender apron. See Figure & Figure . |
