FixVault
Home
›
Mazda
›
1989
›
RX-7 Base, Automatic
›
Repair and Diagnosis
›
Engine Performance
›
System
›
Tests W/Codes
›
Code Charts
Code Charts

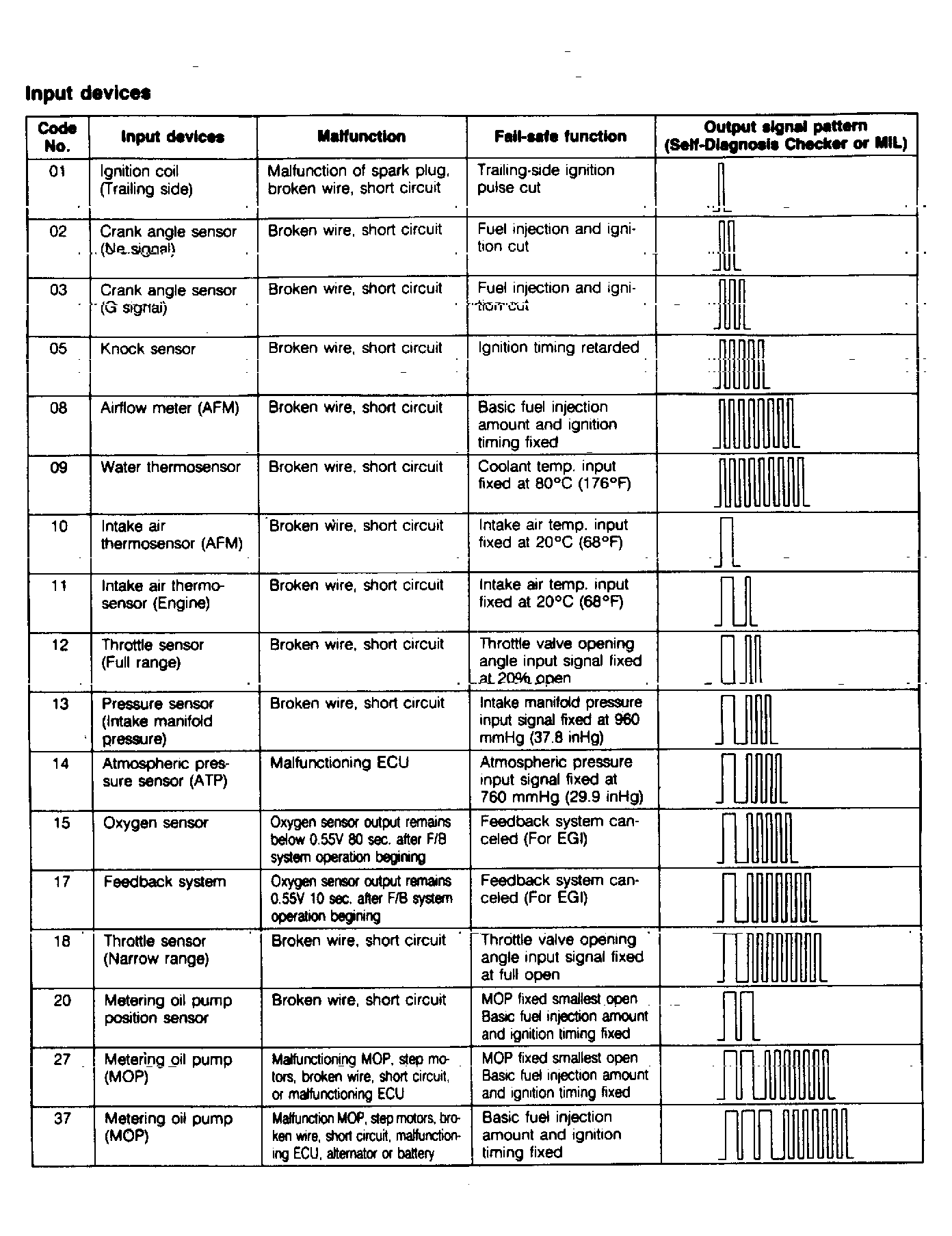

Fig 1: RX7 Trouble Code Identification (1 of 2)

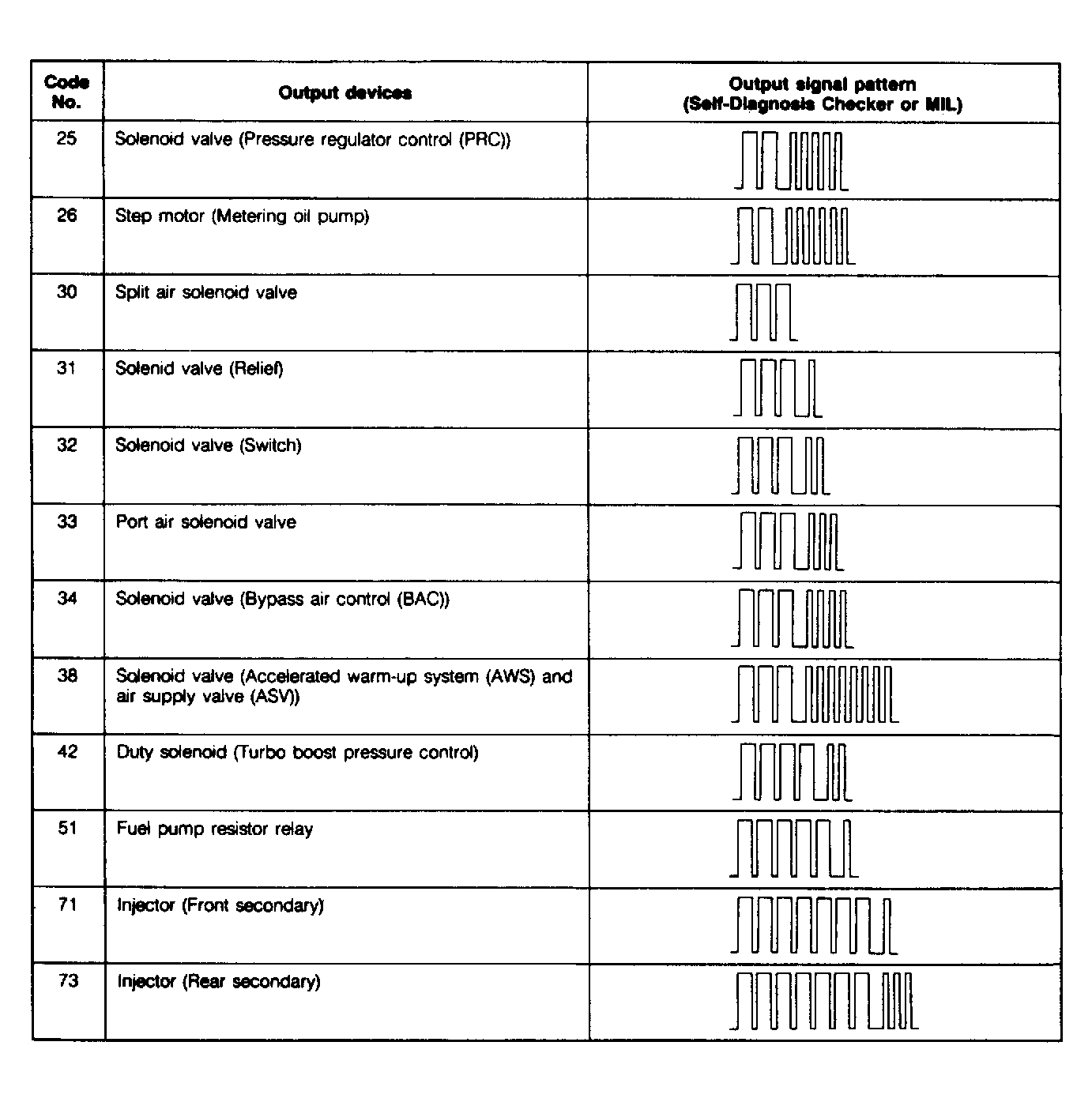

Fig 2: RX7 Trouble Code Identification (2 of 2)
