Self-Diagnostic System
›
Trouble Code Identification Chart
Trouble Code Identification Chart

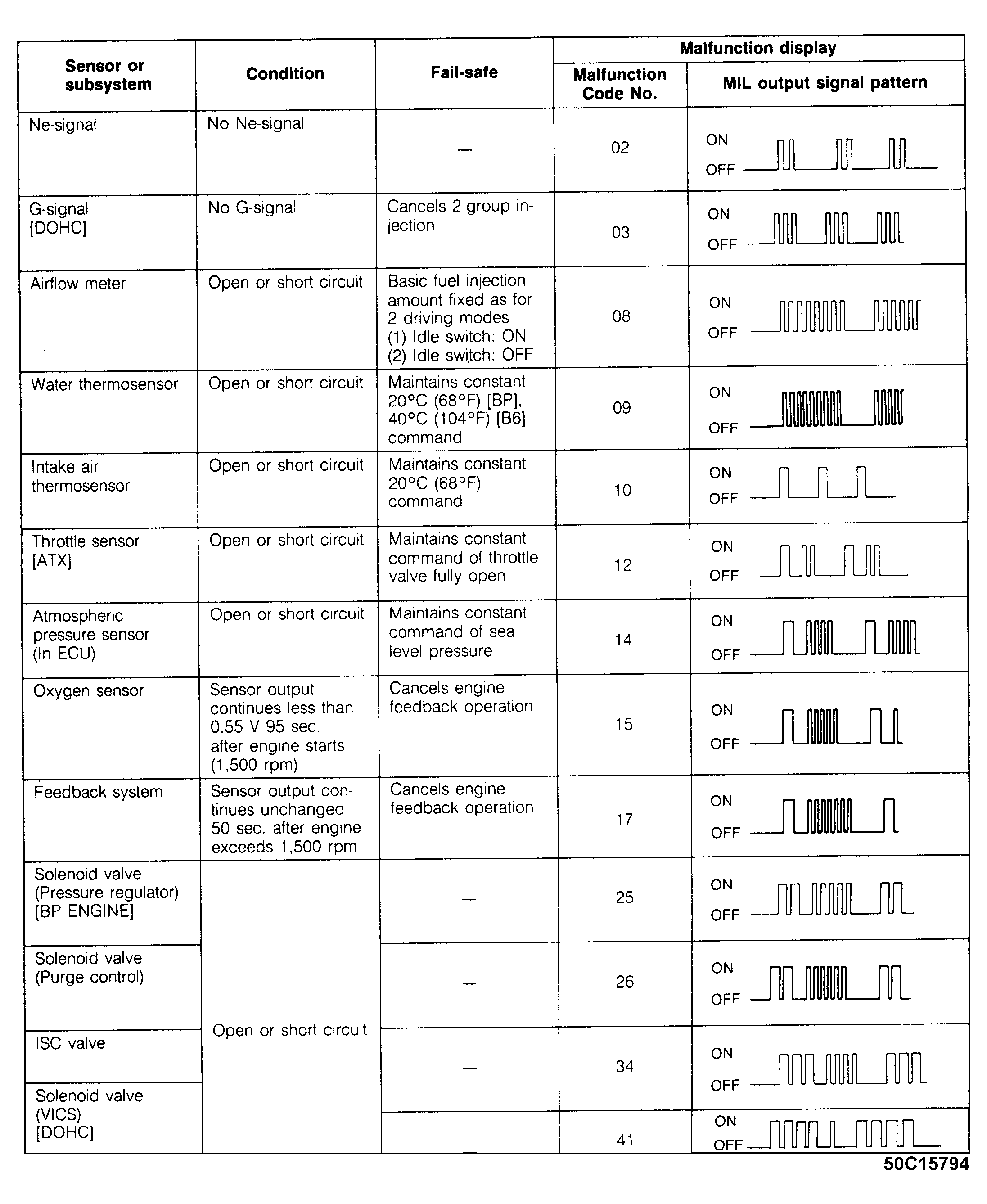

Fig 1: Code Identification Chart
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
