Code 10: Intake Air THERMOSENSOR

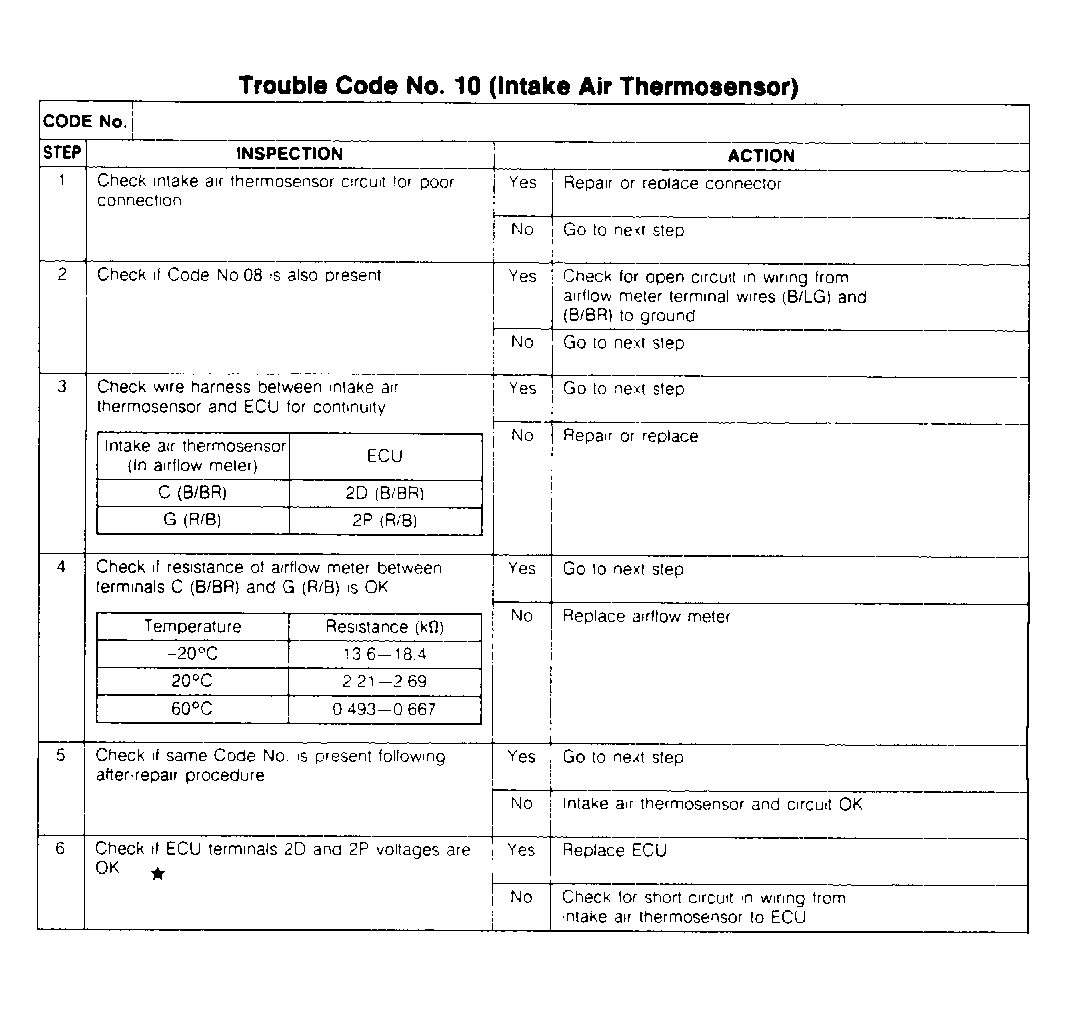

Fig 1: Code 10: Intake Air Thermosensor Chart

Courtesy of MAZDA MOTORS CORP.

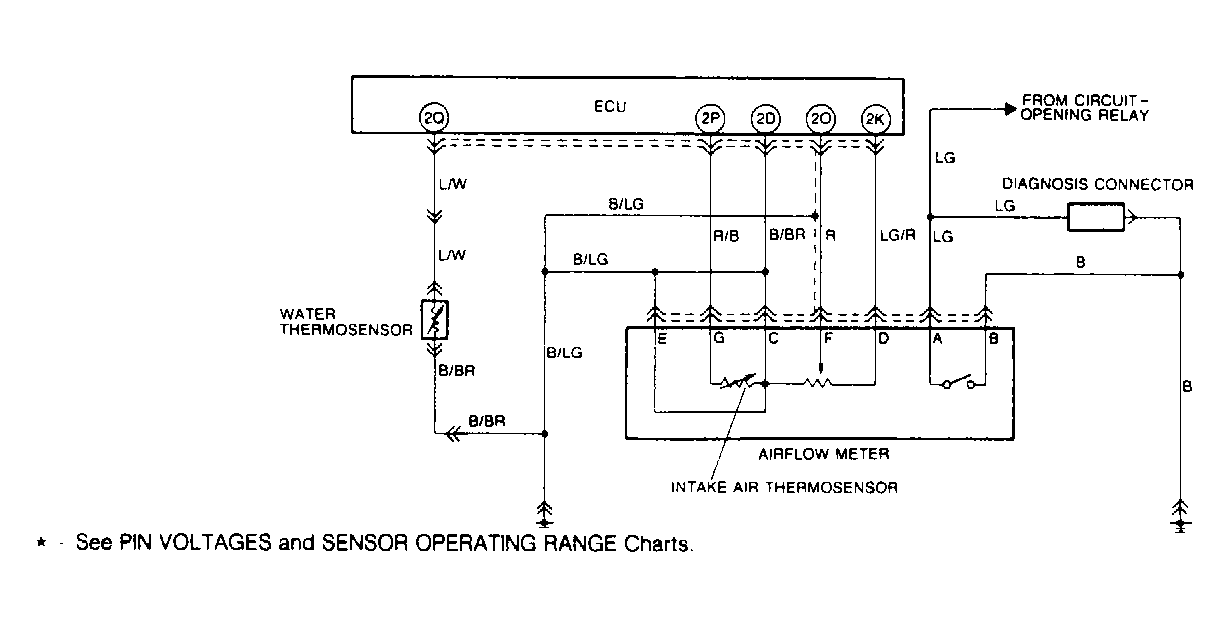

Fig 2: Code 10: Intake Air Thermosensor Circuit Diagram

Courtesy of MAZDA MOTORS CORP.
