Code 3: G1 Signal-Distributor
Code 3: G1 Signal-Distributor

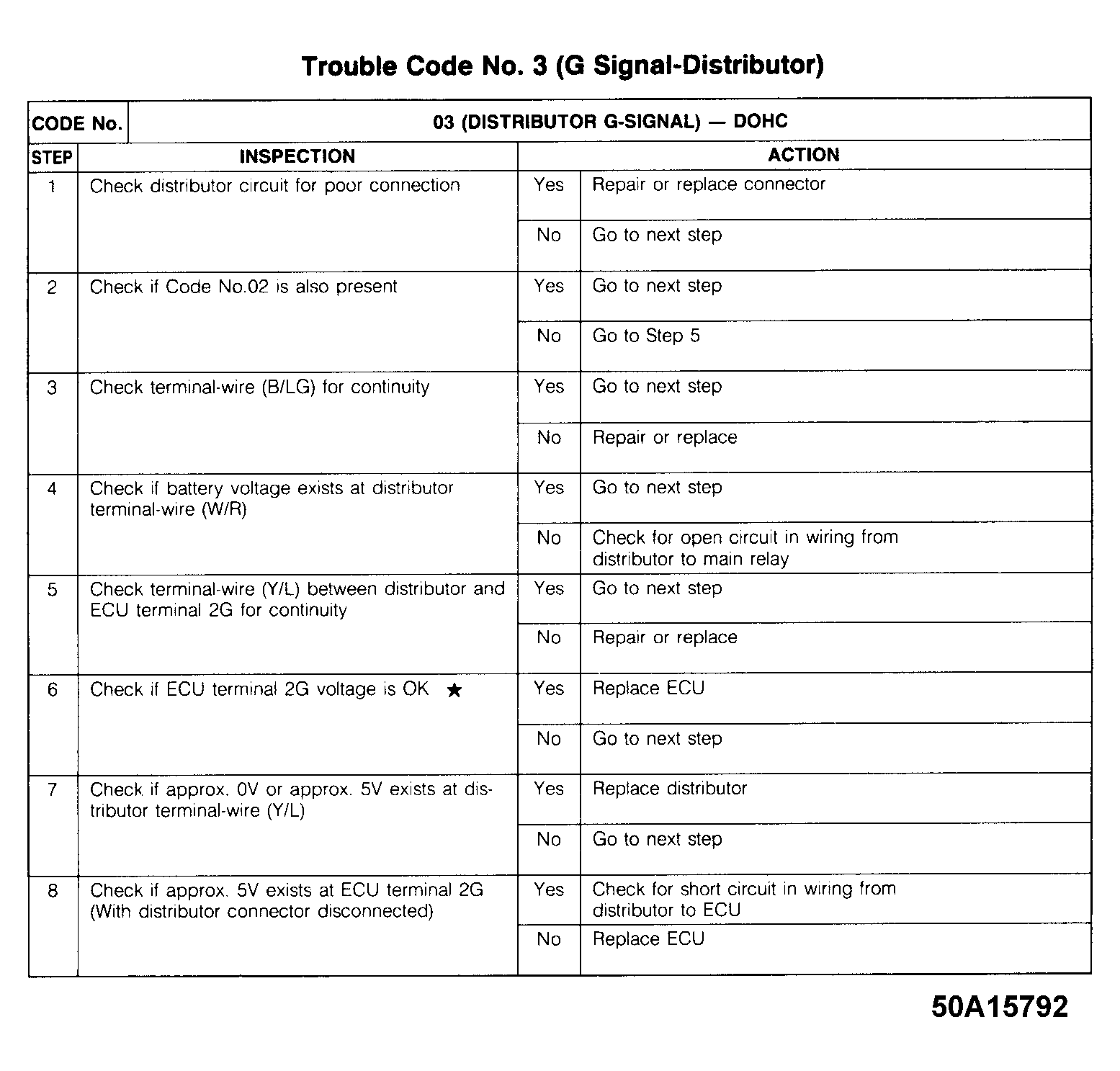

Fig 1: Code 3: G1 Signal-Distributor Chart
Courtesy of MAZDA MOTORS CORP.
Fig 2: Code 3: G1 Signal-Distributor Circuit Diagram
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
