Code 16: EGR Position Sensor (CALIF)

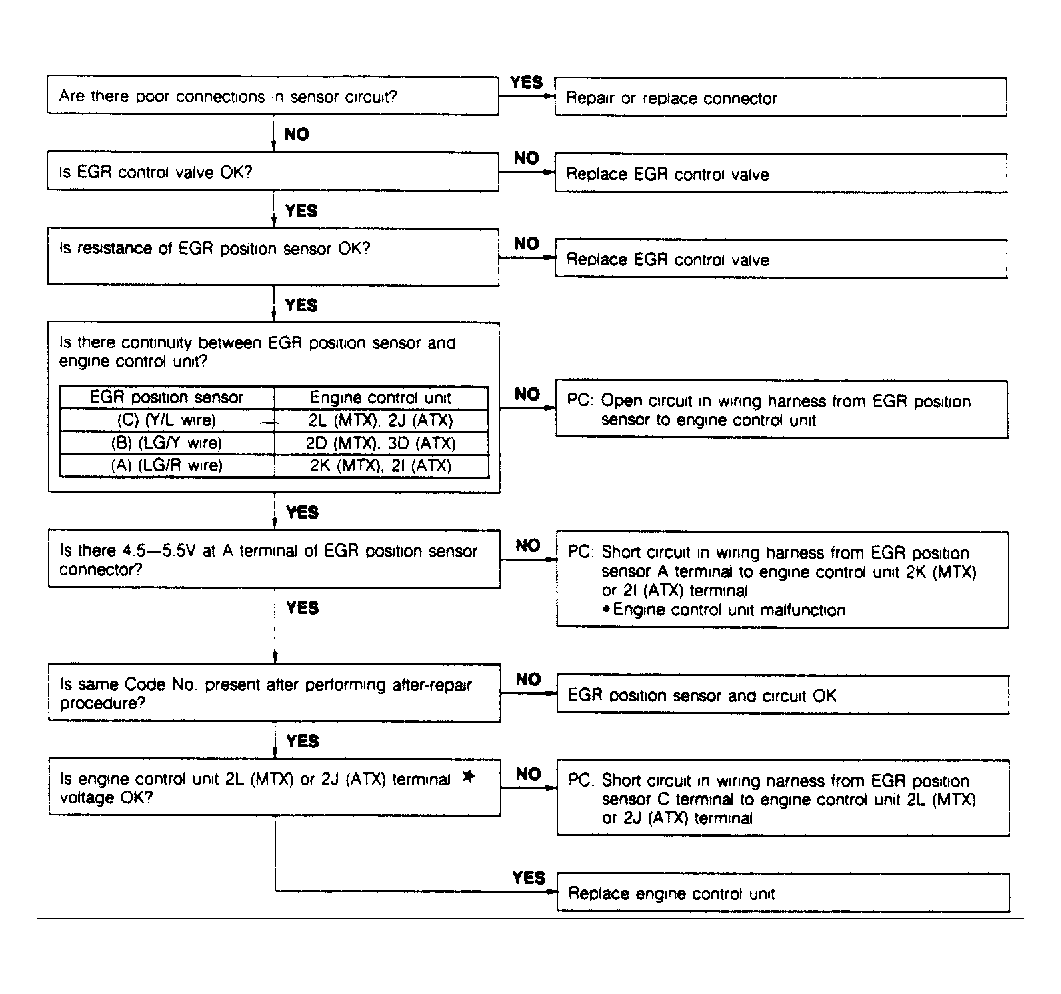

Fig 1: Code 16: EGR Position Sensor Flow Chart (Calif Non-Turbo)
G90A21485Courtesy of MAZDA MOTORS CORP.
