Engine Controls - Tests W/Codes
›
Trouble Code Identification Chart (Non-Turbo)
›
Code 17: Feedback System
Code 17: Feedback System

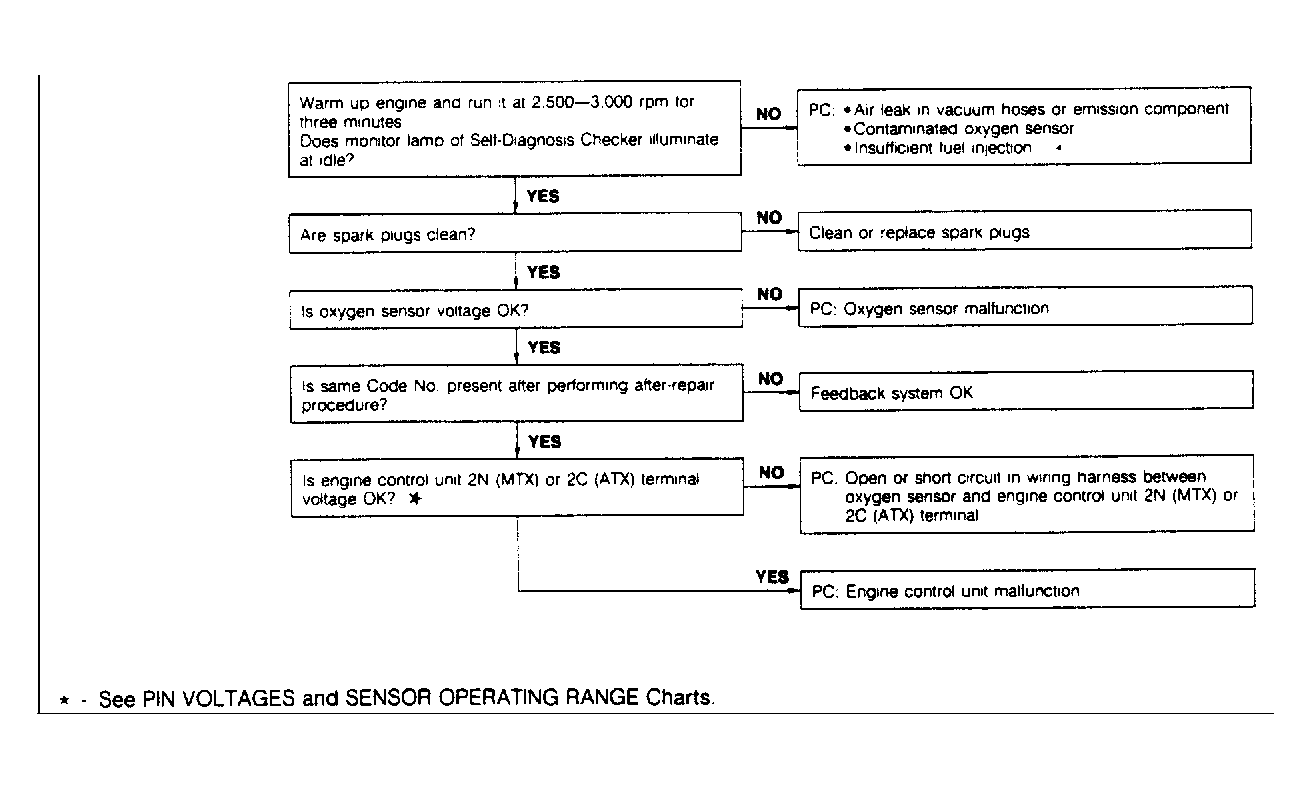

Fig 1: Code 17: Feedback System Flow Chart (Non-Turbo)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
