Code 26: Purge Solenoid Valve

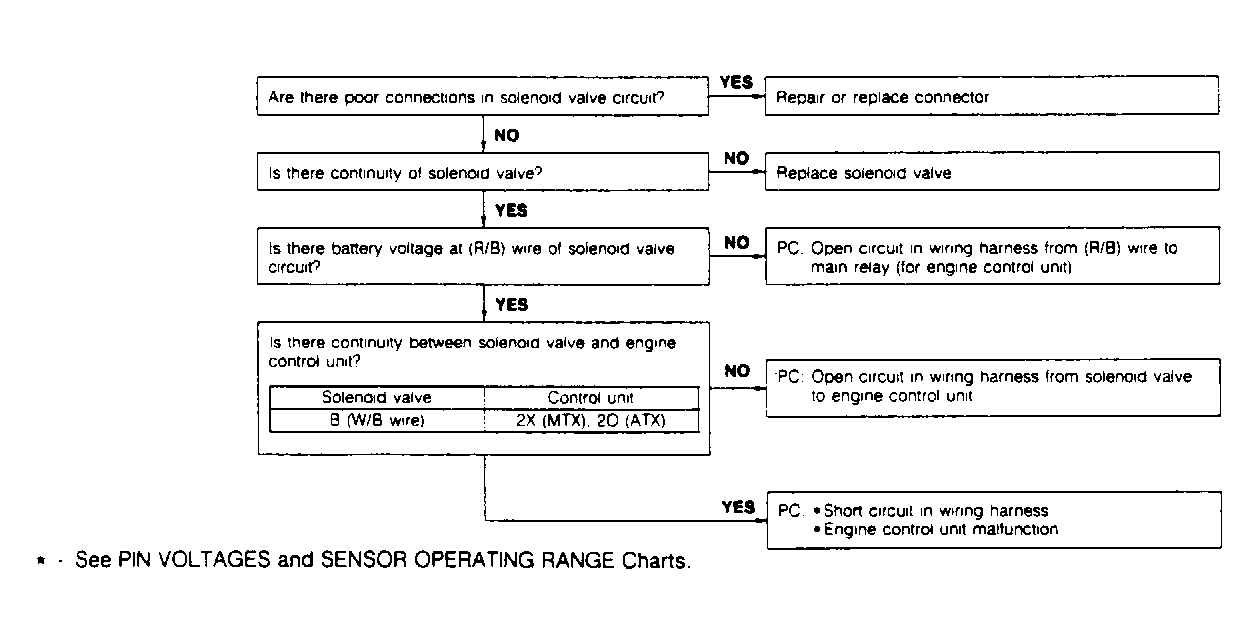

Fig 1: Code 26: Purge Solenoid Valve Flow Chart (Non-Turbo)
G90G21481Courtesy of MAZDA MOTORS CORP.
